push lok fittings

Product Overview

Description

Specifications:

Push-lok fitting

Part No.: B3D982.

 male BSP parallel pipe rigid (60 cone)

Benefits:

1,offering easy assembly and organization
2,providing exceptional value
3,meeting all your special needs





Push-LOK Tube
I.D		O.D.		Working Pressure
Inch	mm	Inch	mm	psi	Mpa
1/4	6.3	0.5	12.7	250	1.7
3/8	10	0.63	15.9	250	1.7
1/2	12..5	0.78	19.8	250	1.7
5/8	16	0.91	23	250	1.7
3/4	19	1.03	26.2	250	1.7
1	25	1.28	32.6	175	1.2

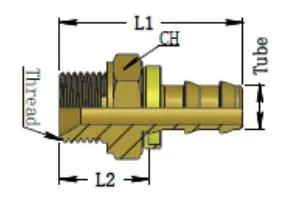

PART NO.	Thead	Tube	L1	L2	CH
B3D982-2-4	G1/8	1/4	36	16	14
B3D982-4-4	G1/4	1/4	41	21	19
B3D982-4-6	G1/4	3/8	45	21	19
B3D982-6-6	G3/8	3/8	45	22	22
B3D982-8-8	G1/2	1/2	53	25	27
B3D982-8-10	G1/2	5/8	62	24	27
B3D982-12-12	G3/4	3/4	65	27	32
