500L germany technology split high pressure flat plate gravity fed solar water heater

Product Overview

Description

                                     germany technology split high pressure flat plate gravity-fed solar water heater

 Description: The split solar water heater is an active system,because it uses a pump with a controller to circulate the fluid in the system.

Storage thank and solar panel collector are separate, while the collector is integrated in to the roof  of the building,the tank and the pump station can be installed anywhere of the building. The piping between the main components is made of brass and a special insulation with high temperature  resistance for solar systems.This system is especially suitable for cold area, even-35 °C. Now ,the split solar water heater is more and more popular in the world.

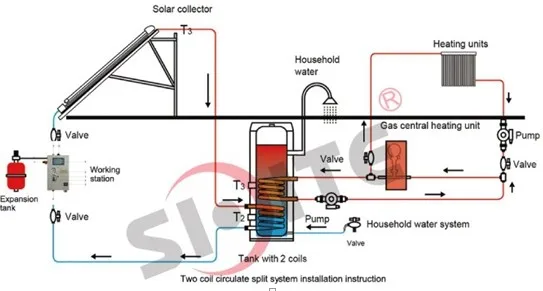

Working Principle:
1.When the temperature of the panel collector reaches the set valve, the controller shall start the circulation pump
  automatically.
2.The circulation pump makes heat-conducting liquid circulate automatically.
3.The heat-conducting liquid transfer heat to water by the heat exchanger in the water tank.
4.In case the temperature of the collector dose not reach the set valve, the circulation pump shall be shut automatically
5.In case the temperature of the water tank dose not reach T-max, then start the auxiliary heating device.

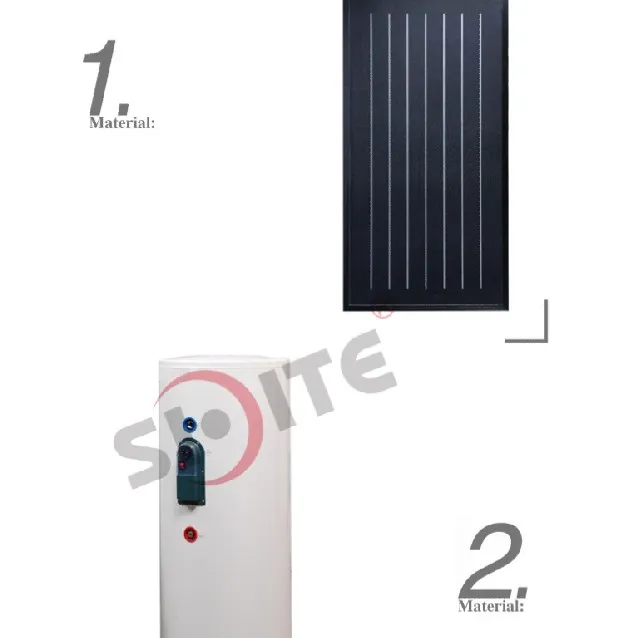

Specification of flat plate solar collector:
1) Low iron textured tempered glass(3.2mm thickness)offers the best capability of durability, strength.
2) Tinox blue titanium or black chrome coating have very high absoption rate to ensure the high efficiency.
3) Whole-plate ultrasonic welding technology makes the flate plate solar collector more beautiful, efficient and durable.
4) Special Anodized aluminum alloy frame to ensure handsome appearance and can accept high pressure without leakage.

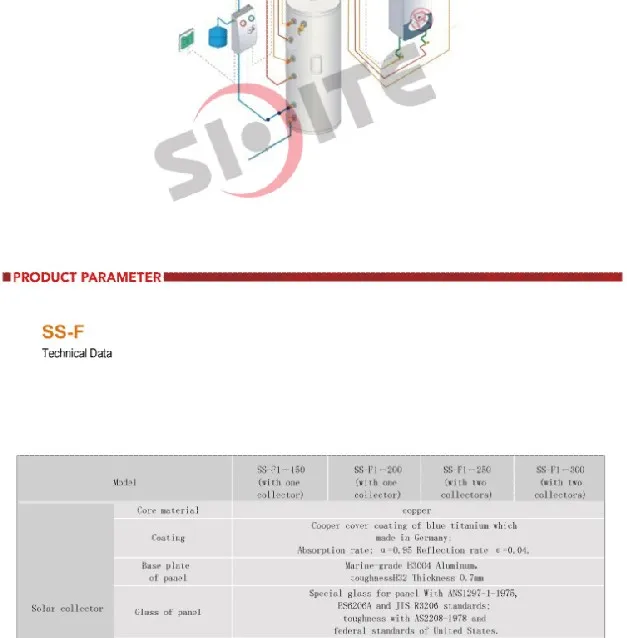

Technical Data:



germany technology split high pressure flat plate gravity-fed solar water heater
Model		SS-F2-150                 (with  one  collector)	SS-F2-200               (with  one  collector)	SS-F2-250            (with  two  collectors)	SS-F2-300             (with  two  collectors)	SS-F2-400             (with  three c ollectors)	SS-F2-500           (with  three  collectors)
Solar Collector	Core Material	Copper
	Coating	Cooper cover coating of blue titanium which made in Germany Absorption rate: α=0.95 Reflection rate ε=0.04.
Water Tank	Volume	150L	200L	250L	300L	400L	500L
	Insulating Layer	Polyurethane Foaming ,Thickness:45mm-50mm
	Outer Tank	Color Steel Plate(enamal white),Thickness:0.53mm
	Inner tank	tank: stainless steel 304; Thickness: 1.2-1.5mm; Normal working pressure: 6 bar; Test pressure: 12 bar

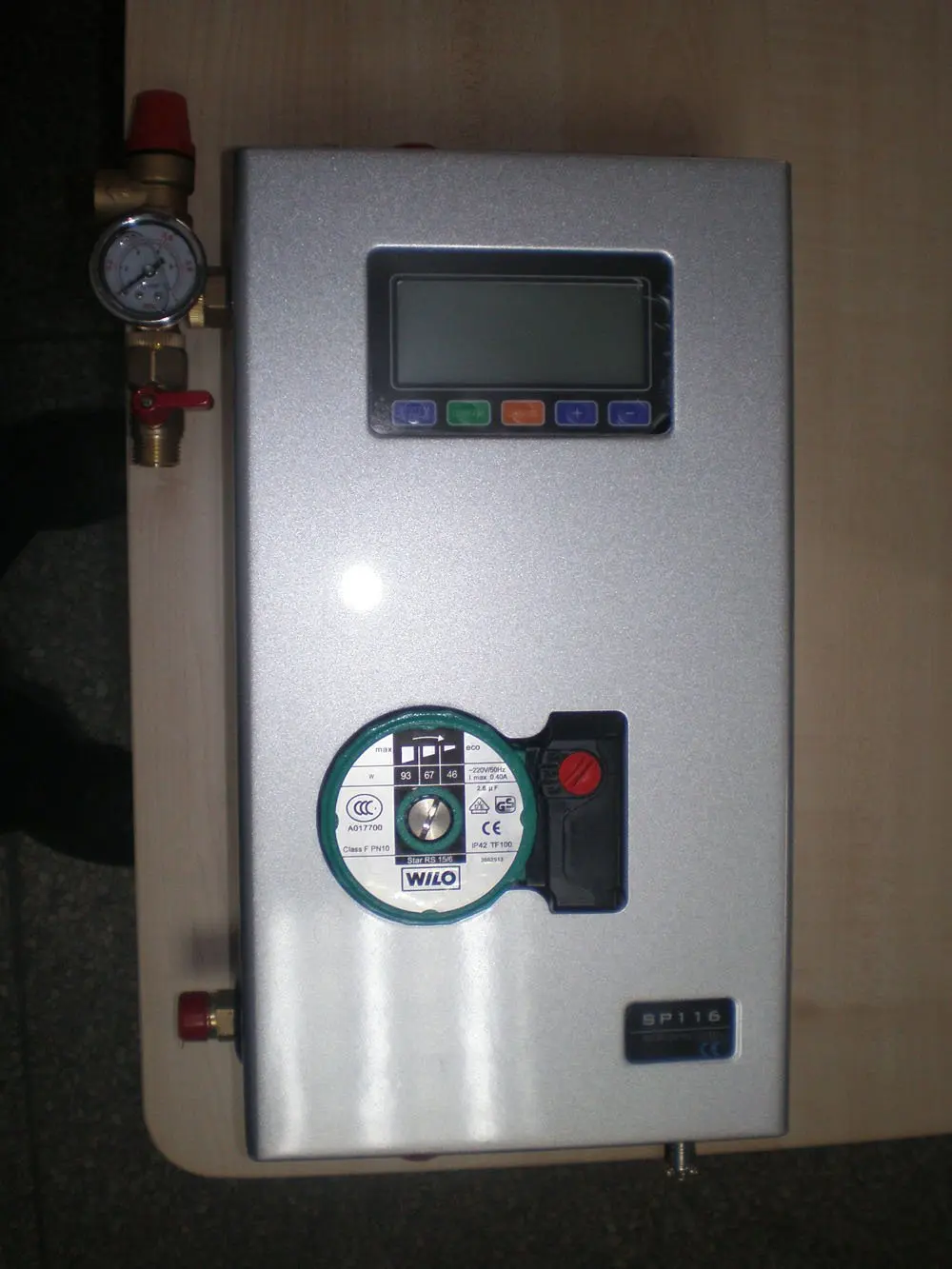

Workstation	Circulation Pump	RS-15/6(WILO)
	Controller	SR868C8









1- What is your Delivery Time?

   LCL order:10days.

   Full container order:15days.

2- What is your Guarantee Time?

  6 years; Provide you with some accessories, they are free for you.

3- Can you accept OEM and ODM ?

  YES, printing your LOGO on the product and package, it's free.

4- What is your payment term?

  We accept T/T or L/C, Western Union and Paypal.

5-What is your MOQ?

2 sets

6-How do you pack?

  LCL order in plywood case

  Full container order in high quality export carton

7-What is your FOB port?

  We accept FOB Shanghai, Ningbo, Shenzhen, Guanagzhou, Qingdao etc.

8.-What is your monthly production capacity?

  1000 sets

9-What is your shipping term?

  By sea/Air/Rail/Truck

10-Do you any additional services?

   YES!

   We offer free spares according to your order quantity. Such as Vacuum Tube, tube holders,  dusting rings,    silicon rings, screws etc.

   And we can offer logo design, Products Advertising Design etc services free.
