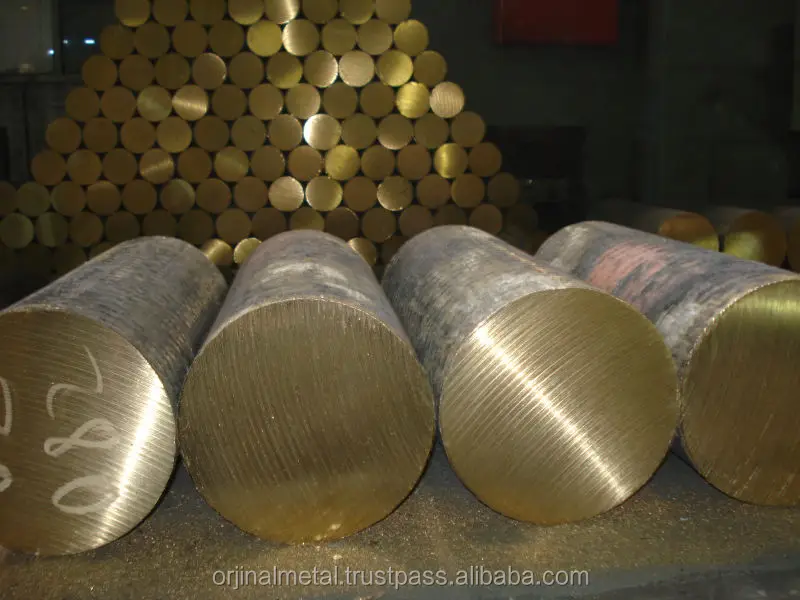

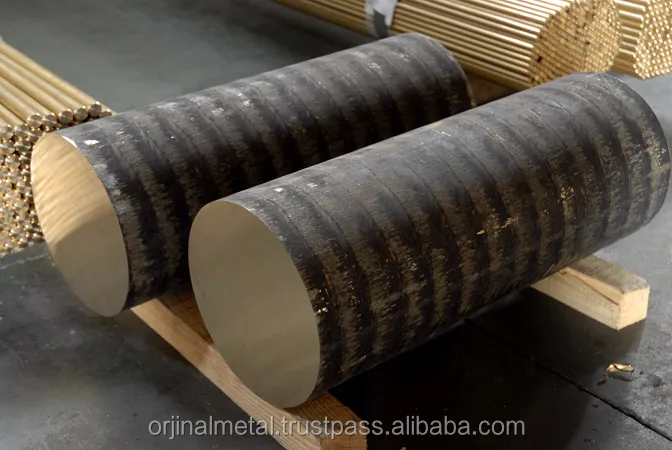

Brass Billet
- Category: Other Billets >>>
- Supplier: ORJINAL METAL URUNLERI SANAYI VE TICARET ANONIM SIRKETI [Turkey]
Share on (180312259):
Product Overview
Description
Orjinal Metal offers a selection of brass billets, in requested brass alloys, casted in our own foundry. We manufacture brass billet under exact process controls that provides excellent consistency for machining and forging operations in compliance with European Norms (EN) and American Norms (ASTM). You can find two main types of brass alloys’ technical information (for other alloys, consult us) that are suitable for most industry applications at below.
ALLOYS-CHEMICAL PROPERTIES
Material Designation | Chemical Composition (%) | Density (g/cm3) | ||||||||
Symbolic | Numerical | Cu | Fe | Sn | Ni | Al | Pb | Zn | All others | Approx. |
CuZn39Pb3 |
CW614N |
57~59 |
0.3↓ |
0,3 ↓ |
0,3 ↓ |
0,05 ↓ |
2.50~3.50 |
Rem. | 0,2 ↓ | 8,46 |
CuZn40Pb2
|
CW617N |
57~59 |
0,3 ↓
|
0,3 ↓ |
0,3 ↓ |
0,05 ↓ |
1.60~2.50 |
Rem. | 0,2 ↓ | 8,43 |
CROSS REFERENCE- EQUIVALENCES
EN | DIN | ASTM | BS | JIS | SN | ||
SYMBOLIC | NUMERICAL | SYMBOLIC | NUMERICAL |
|
|
|
|
CuZn39Pb3 | CW614N | CuZn39Pb3 | 2.0401 | C38500 | CZ121/3 | C3603 | CuZn39Pb3 |
C3604 | |||||||
CuZn40Pb2 | CW617N | CuZn40Pb2 | 2.0402 | C37800 | CZ120
| C3603 | CuZn40Pb2
|
C38000 | C3604 | ||||||
We are able to turn brass billets according to your request .We have size of brass billet production in:
Size: In diameter runs from Ø120mm to Ø220mm.
Length: In length from 500mm to 4000 mm.
Shape: Round
