Fuel Coal Gas Steam Generator 35 50kg/hr Steam Output (Exemption Gas)

Product Overview

Description

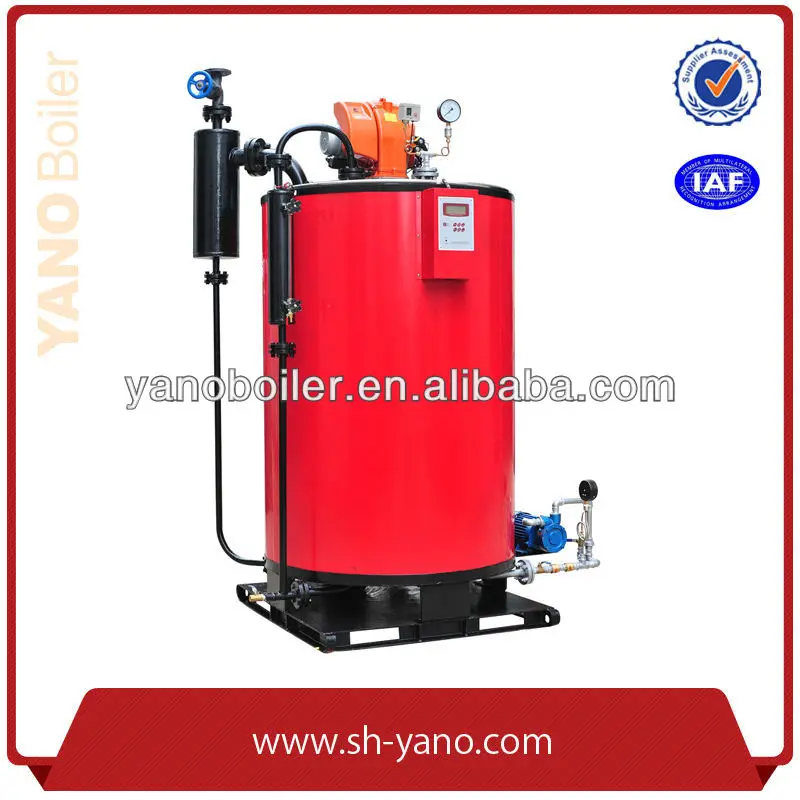

35Kg-50kg /Hr Steam Output Fuel coal Gas Steam Generator



Design structure

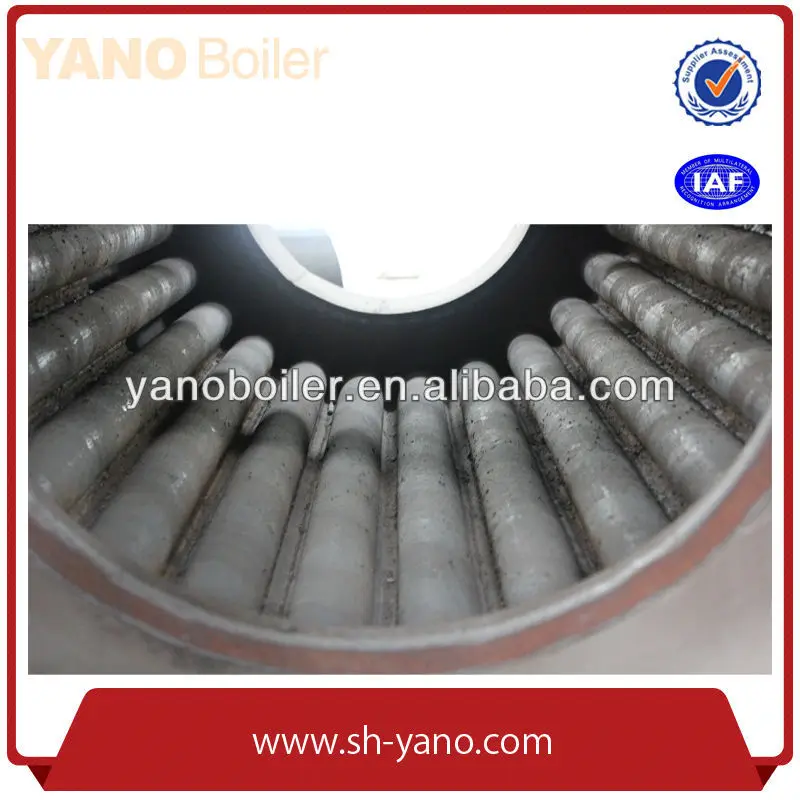

1,Boiler liner uses internationally advanced three-pass vertical water pipe tubular structure

2,The steam boiler and burner as a whole to design,.

3,Internal  built-in steam separator



Advantage

Automatic LCD intelligent control system

1.,Safety and Science :with a safety valve, pressure controller, water level control protector,

2,multiple chain protection device, safe and reliable.

3,Choose imported Italian burner, burning more fully, more stable operation and lower noise.

4,High quality parts adopt domestic famous brand Delixi electric appliance

5,High Quality Steam Rapidly

6,Easy to install and  operate

7,the boiler thermal efficiency  above 93%

8,Product quality ensured by :Hydraulic teat ,X-ray ,non-destructive test .



How to use?

1,Build a boiler house

2,Connection pipes

3,Connection power

4,Operating boiler



Application

1. Washing ironing industry: dry washer, dryer and washing machine, dryer, ironing machine, electric iron, and other ancillary equipment.



2. Food machinery industry: tofu machine, steam box, sterilization pot, packing machine, coating equipment, sealing machine, such as supporting the use of equipment



3. Biological chemical industry: fermentation tank, reaction kettle, sandwich pot, mixer, emulsifying machine supporting the use of equipment



4. Other industries: oil field, car) steam cleaning industry, (hotel, school, dormitory, batch plant) made by hua-dong works are hot water supply, (Bridges, railways) concrete curing, leisure (salon), sauna bath, heat exchange equipment.





product parameter

Type and spec.	LSS0.035-0.7-Y/Q	LSS0.07-0.7-Y/Q
Rated evaporation(kg/h)	35	50
Thermal efficiency	≥90	≥90
Rated pressure(MPa)	0.7	0.7
Steam temperature(°c)	170	170
Fuel     1.  0#Diesel(kg/h)	2.2	3.2
2. Coal gas(Nm3/h)	6.2	8.9
3. Natural gas(Nm3/h)	2.8	4.0
4. Liquefied gas(kg/h)	2.25	3.3
Dimension(mm) L	800	800
W	800	800
H	1350	1400
Steam caliber(mm)	DN15	DN15
Drain outlet caliber(mm)	DN15	DN15
Water inlet caliber(mm)	DN15	DN15

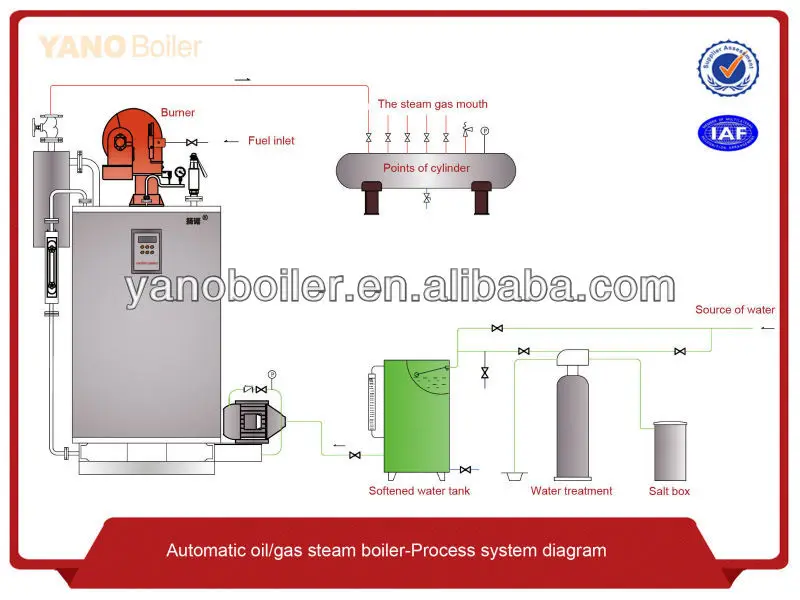

System drawing





Detail
