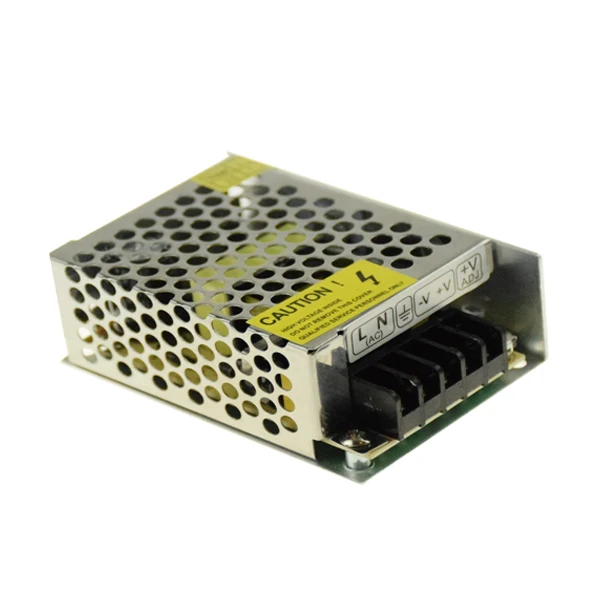

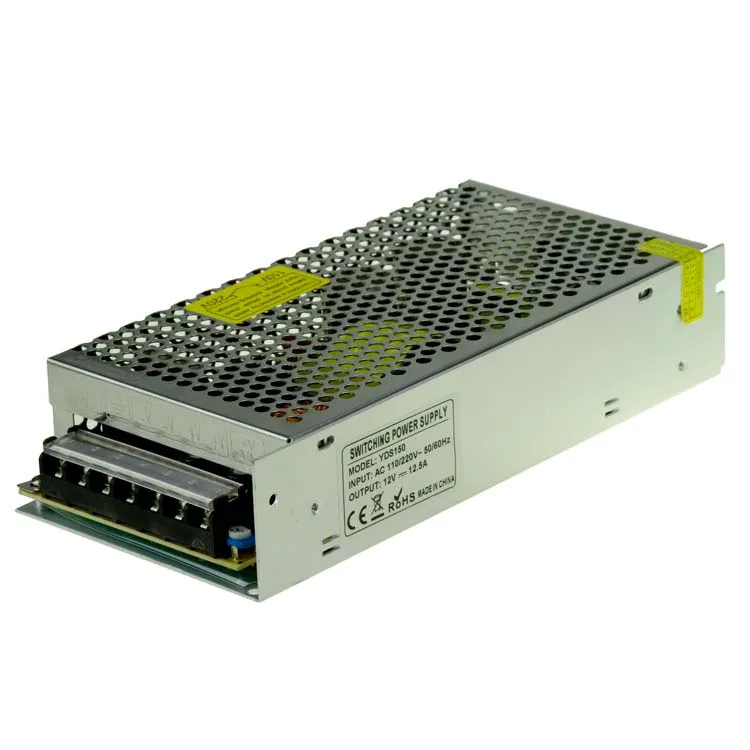

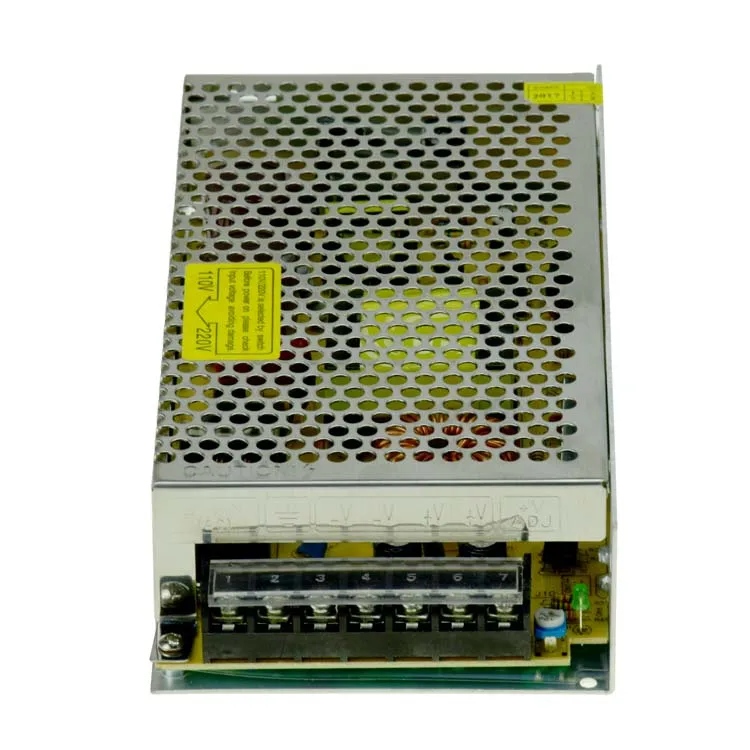

5V 12V 24V 36V 18V 60w switching power supply 2.5A led switch power supplies

24V  2.5A  Technical Specification

Model No.

YDS24-60

Input

Voltage

100-240V AC

Vibration Input Voltage Range

90-270V AC

Frequency

50-60Hz

Output

Voltage

DC 24V

Current

2.5A

Power

60W

Typical Efficiency

73%

Adjustable Range of Voltage

DC 24V-24.5V

Max. Ripple & Noise

250mV

Protection

Over Load

105-115% of Rated Output Power

Short Circuit

Protection Type: Auto Recovery

Electric Strength

High-pot test

3KV AC

Environment

Working temperature and humidity

-10°C~+60°C,20~90%RH

Store temperature and humidity

20°C~+85°C,10~95%RH

MTBF

>200K hrs.@25°C(MIL-HDBK-217F)

Warranty

1 year

Feature

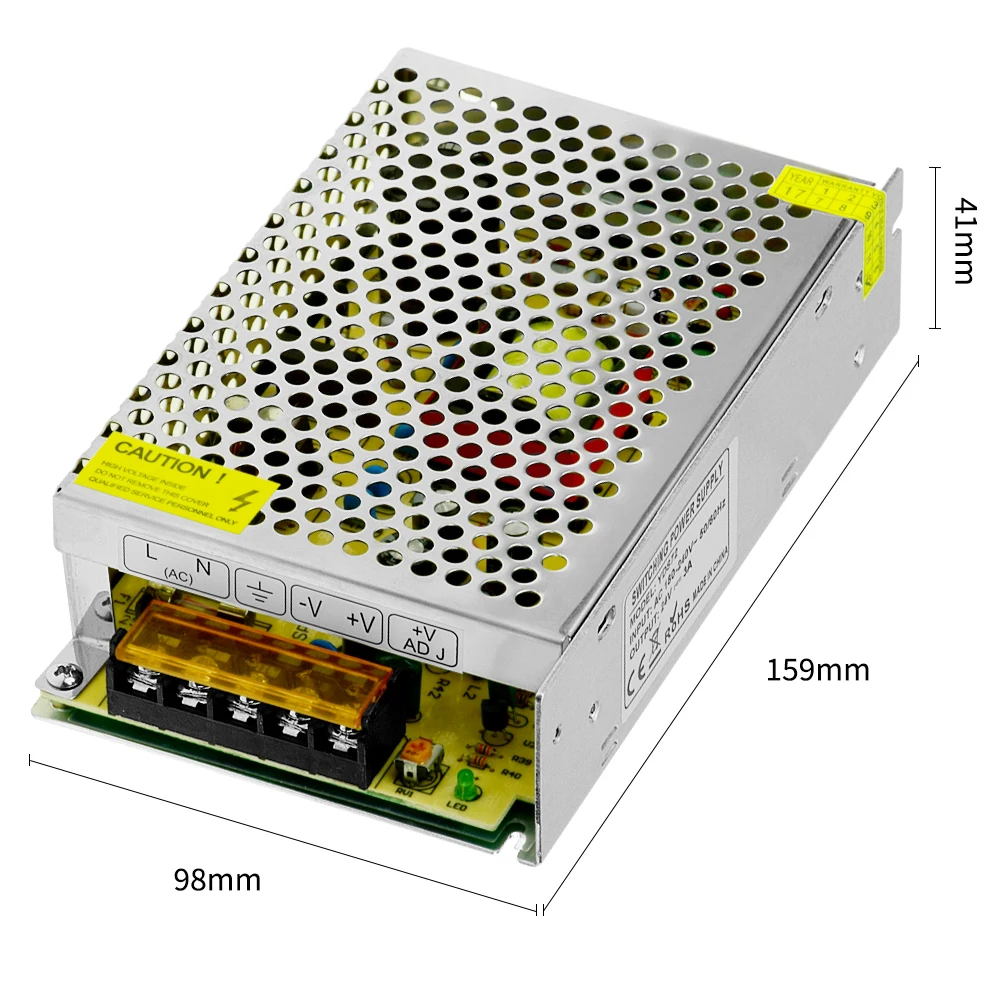

Dimension(L*W*H)

10*5.5*2.8cm

Weight

131.5g

Inner box size

10.5*6.1*3.6cm

Inner box weight

14g

PCS/CTN

100

CTN size

37.5*22.8*32cm

GW/CTN

15.35KG

Safety & EMC

Safety Standards

CE EN60950

EMI

EN55011 Class B EN55022 Class B

EMS Immunity

EN55024 EN61000-6-2

Harmonic Current

EN61000-3-2
