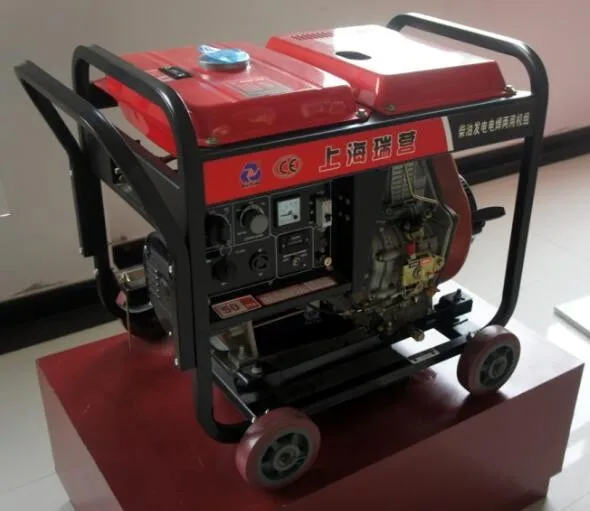

portable diesel welding generator machine 5GF LEW
- Category: >>>
- Supplier: Taian E.S.K. International Co. Ltd.
Share on (1805105012):
Product Overview
Description
Product Description
Features:
1- Power supply and welding mahcine dual function
2- Low Oil Pressure Alarm Systerm could automatric stop the generator to protect machine.
3- Electric starting type (E) ensure the machine could quickly starting.
4- The equipments is available to supply emergency and constant electrical source,
5- Welding duty cycle 60%
6- Welding current : 50-180amp
7- Available electrode 1.6-3.2mm
Specifications:
| Model | ED5GF-LEW | |
| Rated frequency | 50HZ | 60Hz |
| Rated Voltage | 220V | 110/220V |
| Rated output power | 2.2KW | 2.2KW |
| Rated rotation speed | 3000rpm | 3600rpm |
| Welding voltage without load | 55-65V | |
| Rated current | 160A | |
| Work voltage | 26V | |
| Continuous load rate | 60% | |
| Current regulation range | 50-180A | |
| Power factor | cosφ=1 | |
| Phase number | Single phase | |
| Net/Gross weight | 108/114kg | |
| Structure model | Open-frame | |
| Engine model | EP186FE | |
| Engine type | Single cylinder,4-stroke,air-cooled,diesel engine | |
| Displacement | 406CC | |
| Compression ratio | 19:01 | |
| Rated output/Speed | 5.7KW/3000rpm | |
| Starting system | Electric starting | |
| Fuel tank capacity | 13.5L | |
| Lube capacity | 1.65L | |
| Fuel type | Diesel 0#(summer),diesel-10#(winter) | |
| Lube brand | SAE10W30(above Ccgrade) | |
| Low oil pressure alarm system | with | |
| Dimension(LxWxH) | 720x480x650mm | |
| Packing size(LxWxH) | 745x505x660mm | |
| 20FT Container | 96pcs | |
Packaging & Shipping
Our Services
Q: what is warranty time ?
A: 12months from you got the cargo.
During warranty time, we will supply the free parts by air in free,
after that date, we will supply spare parts in the base of part cost .
Q: what is delivery time / lead time ?
A: 30 days
Q: what is your minimum order ?
A: 5pcs
Q: what is your payment term ?
A: 1- 30% down payment for order confirmation, 70% before shipment.
2- Trade assurance
Company Information
FAQ
Q: what is warranty time ?
A: 12months from you got the cargo.
During warranty time, we will supply the free parts by air in free,
after that date, we will supply spare parts in the base of part cost .
Q: what is delivery time / lead time ?
A: 30 days
Q: what is your minimum order ?
A: 5 pcs
Q: what is your payment term ?
A: 1- 30% down payment for order confirmation, 70% before shipment.
2- Trade assurance
Q: can we visit your factory ?
A: yes you can at your free time.
