Product Overview

Description

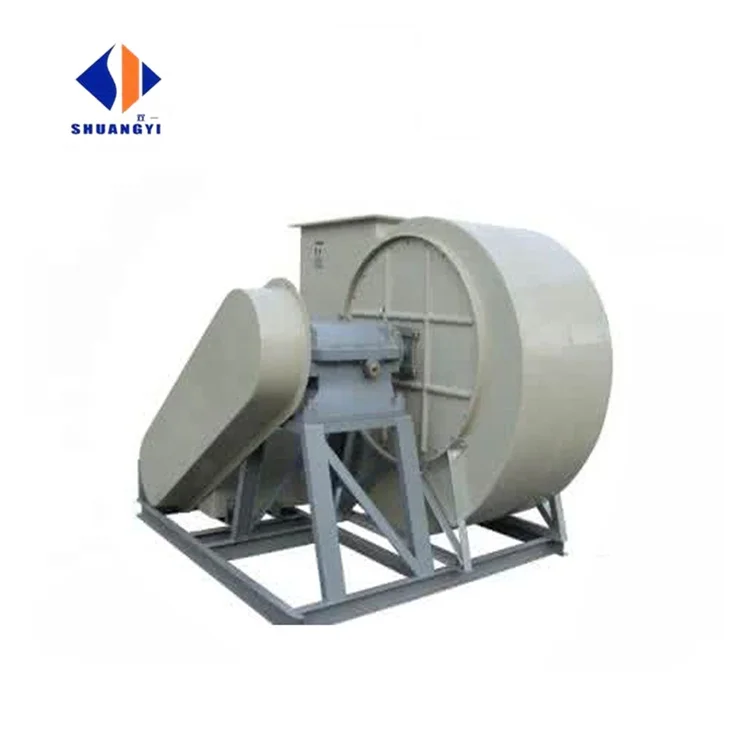

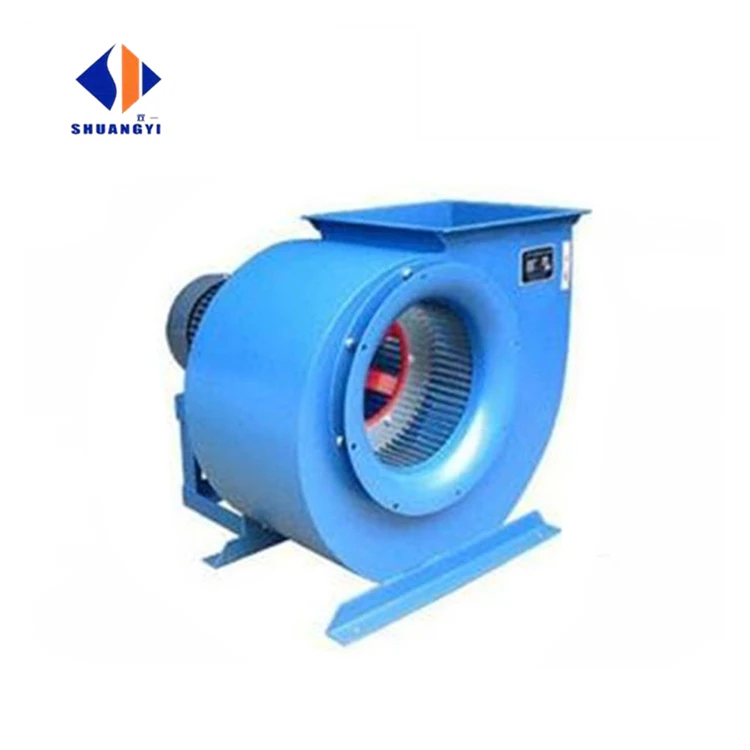

High quality industrial centrifugal wind air turbine ventilator



1. Applications

      ♦ Ventilating

Forced ventilating, Mine ventilating, Materials ventilating and drying.

♦ Cooling and heat dissipation

Forced cooling and heat dissipation, Cement production line grate cooler cooling, Industrial equipments cooling and heat dissipation.

♦ Air purification and industrial waste gas treatment, Air filtration system, Flue gas desulfurization, Flue gas denitrification.

♦ Boiler’s air supply and exhaust (Coal-fired boiler, Biomass boiler, Garbage incinerator, CFB boiler, Stoker feed boiler…).



♦ Energy and power

Thermal power plant, Garbage incineration power plant, Biomass fuel power plant, Industrial waste heat recovery device.

♦ Metal smelting

Blowing air of mineral powder sintering(Sintering machine), Smelting furnace and foundry furnace, Combustion of blast furnace, Blast furnace coal injection, Coal gas boosting and conveying.

♦ Gas and materials delivery

General air delivery, High-temperature air delivery, Combustible gas delivery, Corrosive gas delivery, Gas mixed with impurity delivery.

Delivery of coal powder, Particle material/ Powder material/ Fragment materials/Fiber materials.



 2. Characteristics



♦ Can flexibly adjust fan’s volume and pressure in running by air damper. Can also adjust fan’s pressure and volume by changing the fan speed via matching variable frequency motor.

♦ Transmission efficiency higher than belt driving’s, much lower of fan system energy loss.

♦ Flexible connection for motor shaft and transmission shaft, no need to tension or change the belt, low maintenance work.

♦ Bearing housing adopt labyrinth type mechanical seal, unique design of spill prevention of inner, venthole design on top, commissure coated with sealing grease, completely eliminating bearing housing oil leak.

♦ Selecting high efficiency energy saving motor of Chinese leading motor manufacturer( or customer required), reliable quality, low energy consumption.

♦ Customizing design according to customer’s performance requirements, and optimizing by CFD technology, energy consumption lower than same fans.

♦ Adopting high quality carbon steel manufacturing, or stainless steel and other metal materials according to customers’ requirements.



















No.	Rotation Speed (r/min)	Total Pressure (Pa)	Air Capacity (m3/h)	Power (kW)
4A	2900	3253~3597	824~1704	2.2~3
4.5A	2900	4112~4603	1174~2504	4~5.5
5A	2900	5080~5697	1610~3488	7.5~11
5.6A	2900	6400~7182	2262~4901	11~15
6.3A	2900	8148~9149	3220~6978	18.5~30
7.1A	2900	10426~11717	4610~9988	37~55
8D	1450~2900	3231~15034	3297~14287	7.5~110
9D	1450	4101~4597	4695~10717	15~22
10D	1450	4958~5840	6440~15455	30~37
11.2D	960~1450	2705~7364	5990~21713	15~75
12.5D	960~1450	3975~9229	8327~30186	22~110
14D	960~1450	4249~11668	11699~42409	37~220
16D	960~1450	5575~15425	17463~63305	75~315
