tungsten alloy electrode for welding WT2% WC2% Wla2%
- Category: >>>
- Supplier: Baoji Chuangxin Metal Materials Co. Ltd.
Share on (1806915185):
Product Overview
Description
W alloy electrode for welding WT2% WC2% Wla2%
Product Description
Item name | Tungsten Electrode |
Standard | GB/T 4187-84 |
Specification | Dia20xL mm |
Application | Industrial |
Surface | bright |
Processing | Forged |
MOQ | 1kg |
Features
1. With stable high-temperature-proof function thermo stability
2. With good comprehensive performance
3. The melting point is 3000 Centigrade
4. The raw material is high-purity, and adopts the advanced technology,
5. Long service life
6. Mainly put into the machine use, such as the machine parts, and it is also used as the coating material
Chemical component / The tolerance of Diameter and length
Chemical Composition
Trade mark | W | Other elements (%) NMT | |||||||||
W1 | Other | Al | Cu | Fe | Mg | Mo | Ni | Si | C | N | O |
0.002 | 0.005 | 0.005 | 0.003 | 0.01 | 0.003 | 0.005 | 0.008 | 0.003 | 0.005 | ||
The tolerance of diameter and length
Diameter (mm) | Tolerance(mm) | Indefinite length (mm) |
30~50 | ±3.0 | 200~700 |
>50~80 | ±4.0 | 200~700 |
>80~110 | ±5.0 | 200~700 |
>110~150 | ±6.0 | 200~700 |
Forging bar and Spin forging bar
Diameter | Tolerance (mm) | Indefinite length (mm) | processing | ||
Forged bar | Machining bar | Polished bar | |||
11~18 | ±0.5 | ±0.3 | ±0.2 | 200~1000 | Spin forging |
>18~30 | ±1.0 | ±0.4 | ±0.2 | 200~1000 |
forging |
>30~40 | ±1.5 | ±0.5 | ±0.25 | 200~1000 | |
>40~50 | ±2.0 | ±0.65 | ±0.3 | 200~1000 | |
>50~60 | ±2.5 | ±0.8 | ±0.4 | 200~800 | |
>60~70 | ±3.0 | ±1.0 | ±0.5 | 200~800 | |
>70~80 | ±3.5 | ±1.2 | ±0.5 | 200~800 | |

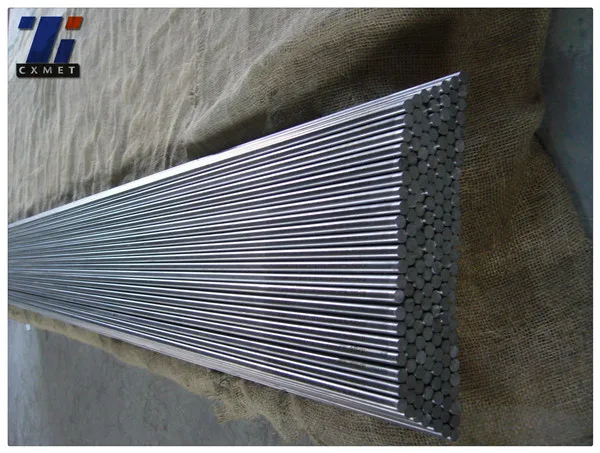

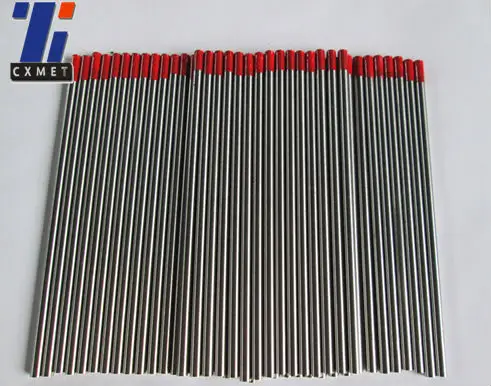

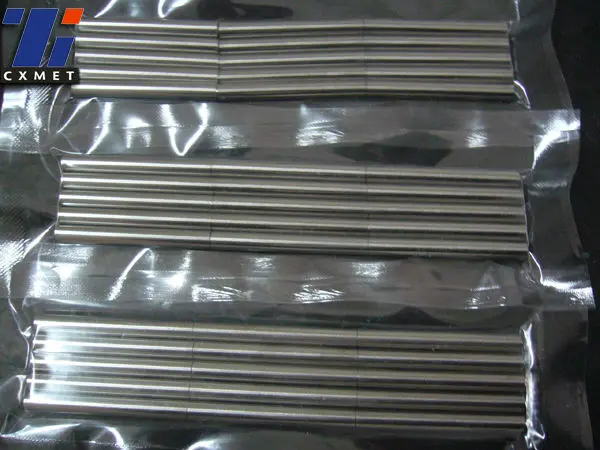

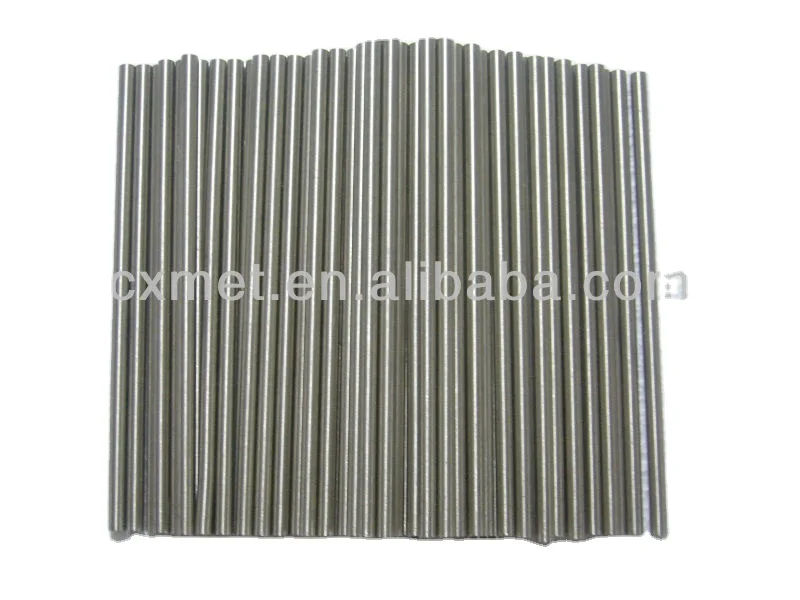

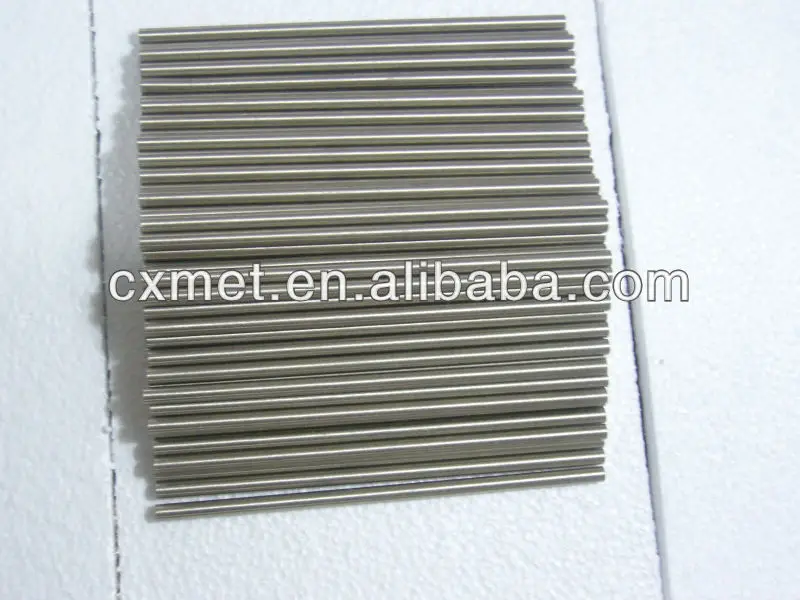

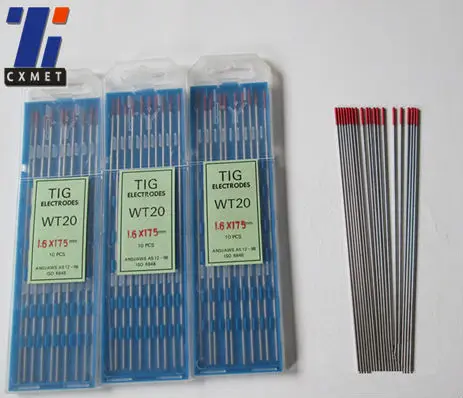

Products Photos
Process Flow

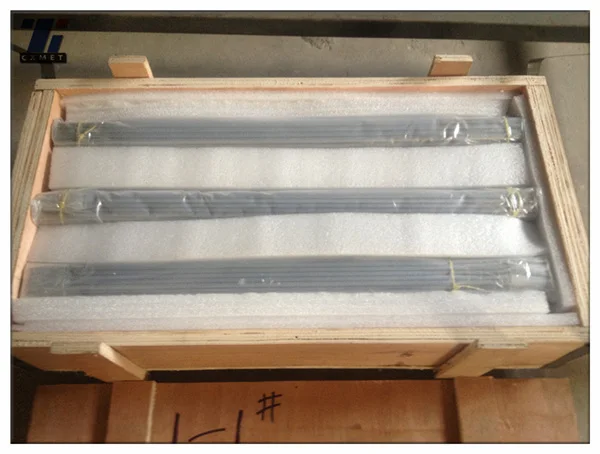

Packaging & Shipping
Packaging and shipping Details:
1.inner packing: plastic foam bag;
2.outer packing: plywood case with strips;
3.We ship worldwide by EMS ,DHL ,UPS ,FedEx ,TNT and so on;
4.We shall be boxed, crated, banded on skids or bundled in such a manner as to assure safe delivery to its destination;
