Cable tv Optical transmitter and receiver

Product Overview

Description

cable tv optical transmitter and receiver







Product Description:
HT101D Optical Receiver is a forward optical receiver ;HT101S Optical Node is a forward optical receiver and return optical transmitter.used for delivering video (digital or analog) as well as high-speed data services over advanced hybrid fiber/coax (HFC)  network terminal; this optical receiver  working from 5 to 862MHz .





Feature:
1.An electrical output with an impedance of 75Ω.

2.Employing GaAs for amplifier.
3. Optical adapted with SC/APC.

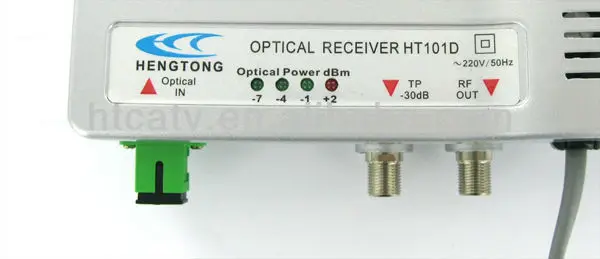

4.Four-LED State: Optical Input Power>-7dBm ,-4dBm ,-1dBm Display Green ;
5.Optical Input Power>+2dBm Display Red









HT101  Technical parameters:



PARAMETER		CONDITIONS	MIN.	TYP.	MAX.	UNIT
Optical Wavelength			1100		1600	nm
Optical Input Power		continuous	-7	-3	2	dBm
Frequency Range			47/87		862	MHz
Frequency Response		47~ 862MHz	-	±0.7	±1	dB
MAX RF output level			-	110	-	dBuV
(-3dBm Optical Input OMI=4%)
AGC Gain Range			-	±1	-	dB
(-6~0dBm Optical Input)
Slope adjustment , typical			-	18	-	dB
Output Return Loss		47~ 862MHz	-	16	-	dB
Optical Input Return Loss			-	55	-	dB
Optical Connector			SC/APC
CNR		note 1	-	48	-	dB
Output Level:		note 2	-	105	-	dBuV
CTB≥60dB(EN50083-3)
Output Level:		note 2	-	105	-	dBuV
CSO≥60dB(EN50083-3)
Optical Wavelength		RETURN		1310		nm
Optical output power		PATH		1		mW
Frequency Range			5		30/65	MHz
RF Input Level				80±5		dBuV
Frequency Response			-	±0.7	±1	dB
Operating Temperature			-25	-	65	°C
Dimension			190X96X52			mm
Weight   (packed)			0.7			kg
Power	AC60V	HT101-1	7VA/~24-65V/50Hz
Consumption	AC220V	HT101-2	7VA/~198-250V/50Hz





Note:



1. -3dBm Optical Input Power  OMI=4% .



 2. CTB/CSO is measured with 6dB pre-equalizer(42 channels).

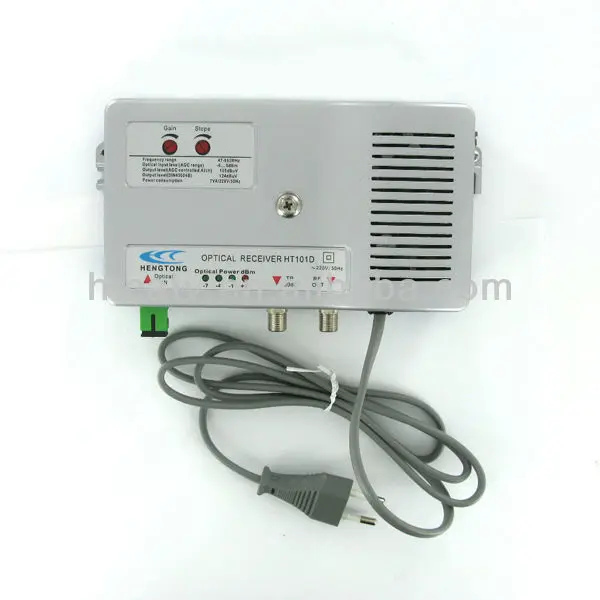

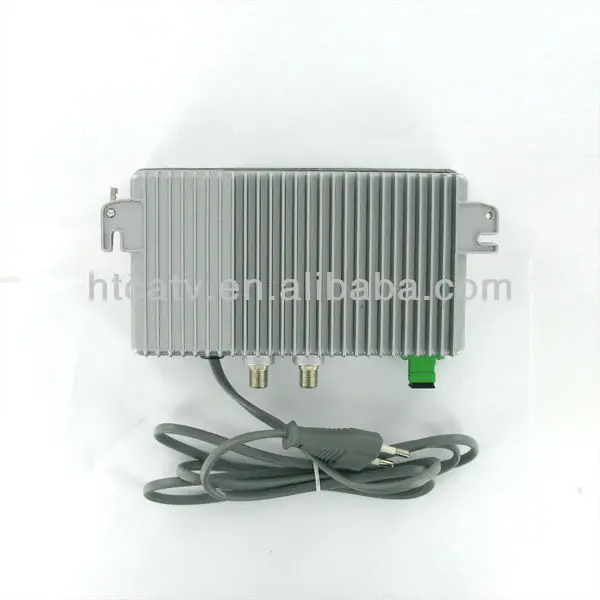

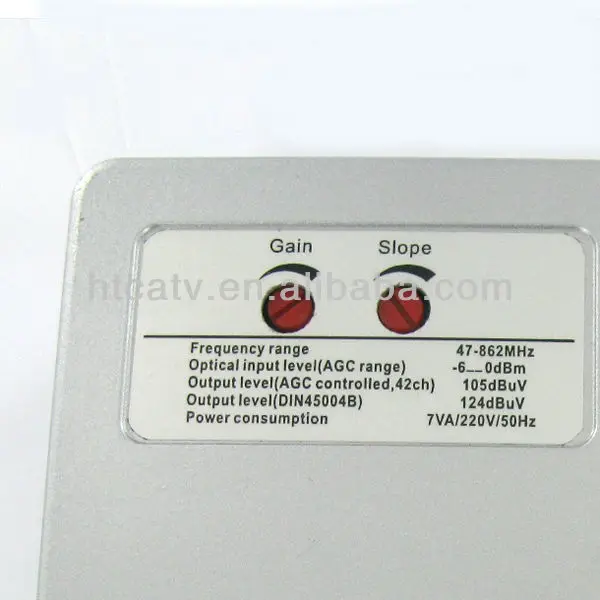

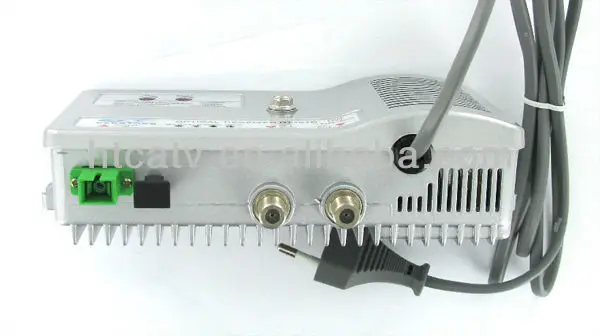

Photos:







Package:



All of our export products are packed carefully, make sure which can be arrived at your place safely.







Delivery time:



Our delivery time is between 5-20 days.







After sale:



We have a professional after sale service team, any problem will get our first attention and promptly reply.
