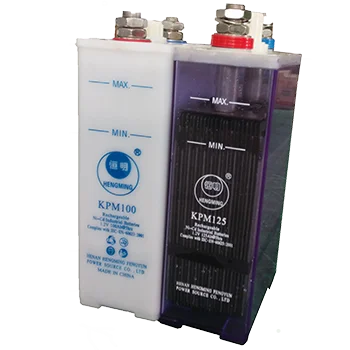

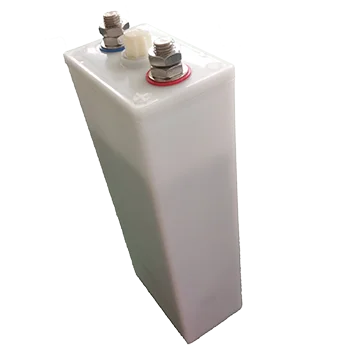

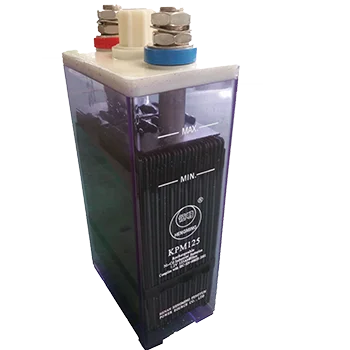

Prismatic cell sintered ni cd storage battery manufacturer aircraft battery or marine battery
- Category: Storage Batteries >>>
- Supplier: Henan Hengming Fengyun Power Source Co. Ltd. [Henan China]Henan
Share on (1807358856):
Product Overview
Description
Supper high discharge rate sintered ni-cd storage battery
Nickel-cadmium sintered battery has the properties of rigid construction, small internal resistance,long service life,resistant to overcharge and discharge,wide operation temperature(-40°C—+50°C ),high reliablity, ultra high discharge rate, they are widely used in the fields of military, aviation,railway vehicle, AGV, electric power system, boat, internal-combustion engine,etc.
Specifications for sintered ni-cd battery
Application:
KPL ,KPM,KPH,KPX batteries are designed for a wide variety of stationary indstria applications
such as power back-up,engine starting an bulk energy sorage.
Series | Discharge rate | Plate type | Application areas |
KPX | Ultra High rate | Sintered plate | AGV; starting power; operating power of electrical system;railway, etc. |
KPH | High rate | Pocket plate | Staring power; UPS; etc. |
KPM | Medium rate | Pocket plate | Starting power; operating power of electric system; UPS etc. |
KPL | Low rate | Pocket plate | Emergency lighting; communication; vessels; backup power of locomotive; energy storage of wind and solar power generation; etc. |
Ni-Cd alkaline storage batteries usually charge with constant current and charge 8 hours with 0.2C5A.Floating charge also can be used, and the floating charge voltage of different series as follow:
Series | Floating charge voltages(V/pc) | Equalizing charge voltage(V/pc) |
KPX | 1.38~1.40 | 1.46~1.48 |
KPH | 1.42~1.45 | 1.55~1.60 |
KPM | 1.42~1.45 | 1.55~1.60 |
KPL | 1.48~1.50 | 1.55~1.60 |
