3 10mm Rubber Granule Pre Coarse Crusher Pulverizer Granulator

Product Overview

Description

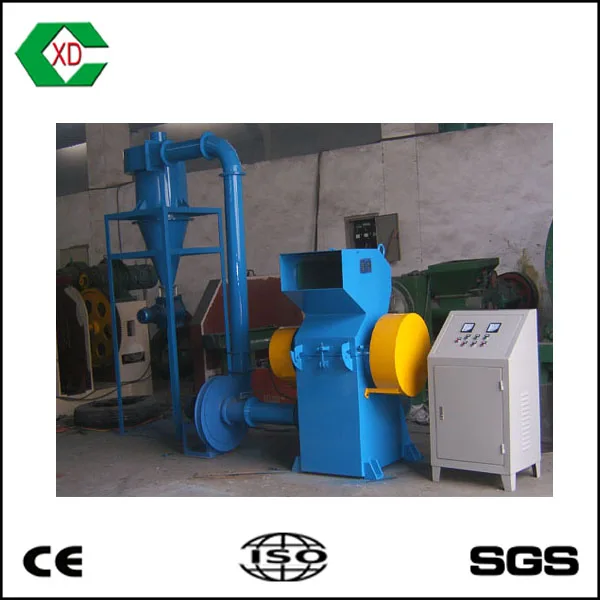

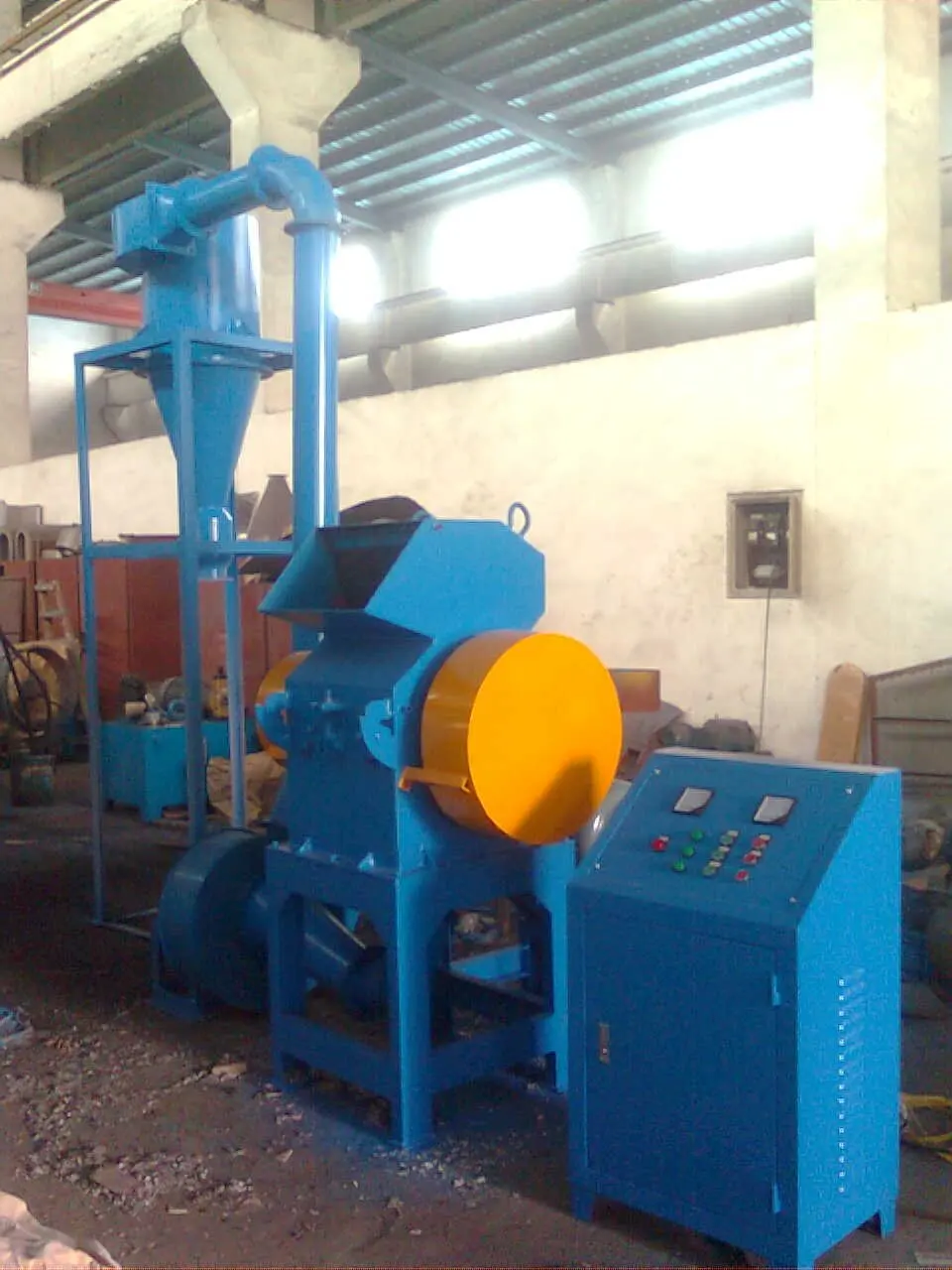

3-10mm Rubber Granule Pre Coarse Crusher Pulverizer Granulator



Introduction



The machine is used for the pre-crushing process for various kinds of rubber, plastic,chemical and herbal medicine.



It is mainly composed of motor, V belt pulley, machine frame, screen supporter, screener, discharging outlet and control cabinet, etc.   This machine can be used for crushing EPDM material with good effect.



Structure and principle



The machine adopts hard alloy or wear-proof steel blades, can crush various kinds of hard material coarsely. The raw materials are crushed by the cutting of rotary and fixed blades. Output size is controlled by the screen.



The machine has water cooling system to control the crushing temperature and ensure the output quality.





Technical Data



Model	400A	500A
Capacity(kg/h)	60-800	100-1000
Main shaft speed(r/min)	600	600
Feeding size(mm)	≤200*30	≤ 250*30
Output size(mesh)	2~20	2~20
Motor power(kw)	15	22
Weight(t)	0.9	1.1
Dimension(m3)	1.1*1*1.6	1.4*1.2*1.6



  1 with one year's free wanttary

  2  Professional engineers team
