Open and endless oil resistant rubber belt
- Category: >>>
- Supplier: Zhejiang Three-V Imp. & Exp. Co. Ltd.
Share on (1807936191):
Product Overview
Description

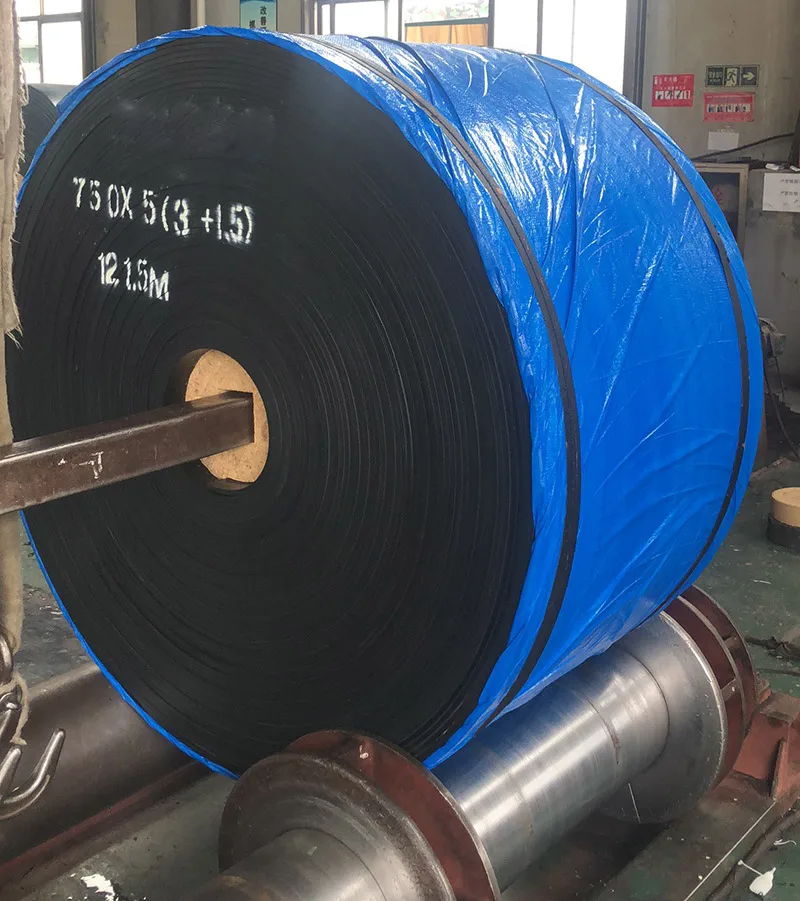

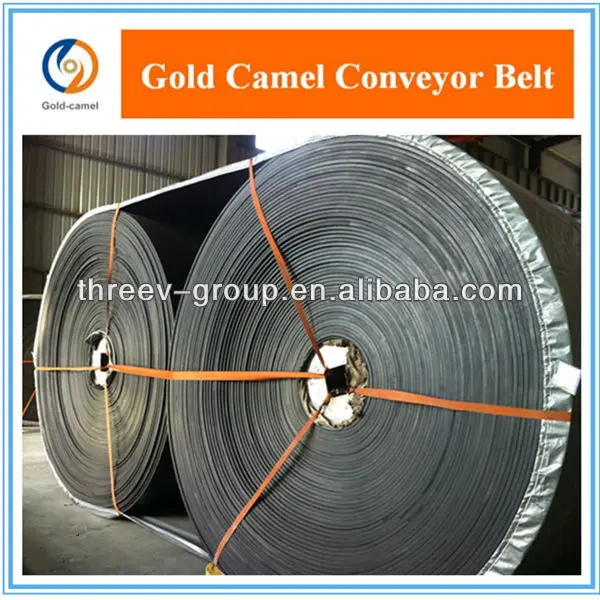

Open and endless oil resistant rubber belt
Product Description
Application:
Oil resistant belt carries parts and components coated with machine oil, heavy-oil treated coal in cooking plants and electric power generating plants, soybean draff, fish meat and other oily materials. Materials containing non-polar organic solvents and fuel.
Characteristics:
The belt compounded of oil resistant synthetic rubber has good resistance to the damaging effects encountered when conveying oil contaminated or treated materials.
Oil resistant conveyor belt can be divided into three types according to cover properties:
Full oil resistant(FOL), Middle oil resistant(MOL) and Low oil resistant (L).
Specification Availability:
Belt type | Fabric type | Single Fabric strength (N/mm) | Rubbercover thickness (mm) | Ply | Belt width (mm) | |
Top rubber | Bottom rubber | |||||
Cotton Canvas (CC) conveyor belt | CC-56 | 56 | 3.0
4.5
6.0 | 1.5
3.0
6.0 | 2-10 | 300-2500 |
Nylon (NN)/Polyester(EP) conveyor belt | NN/EP-100 | 100 | ||||
| NN/EP-125 | 125 | |||||
| NN/EP-150 | 150 | |||||
| NN/EP-200 | 200 | |||||
| NN/EP-250 | 250 | |||||
| NN/EP-300 | 300 | |||||
| NN/EP-400 | 400 | |||||
| NN/EP-500 | 500 | |||||
| NN/EP-600 | 600 | |||||
Rubber Cover Grade & Standard No:
| Type | Rubber Cover Type | Tensile strength at break(N/mm2) | Elongation at break % | Abrasion mm3 |
Abrasion Resistant | RCB-AR-M | 24 | 450 | 120 |
| RCB-AR-Y | 20 | 400 | 150 | |
| RCB-AR-W | 18 | 400 | 90 | |
| RCB-AR-N18 | 18 | 450 | 200 | |
| RCB-AR-N | 17 | 400 | 200 | |
| RCB-AR-A | 17 | 400 | 70 | |
| RCB-AR-Z | 15 | 400 | 250 | |
| RCB-AR-II | 14 | 350 | 280 | |
| RCB-AR-L | 10 | 350 | 300 | |
Oil Resistant | RCB-FOR | 12 | 300 | 300 |
| RCB-MOR | 15 | 450 | 250 | |
| RCB-LOR | 17 | 450 | 200 | |
Heat Resistant | RCB-HR-T1-100oC | 17 | 400 | 250 |
| RCB-HR-T2-125oC | 15 | 350 | 250 | |
| RCB-HR-T3-150oC | 13 | 350 | 250 | |
| RCB-HR-T4-180oC | 11 | 350 | 280 | |
| RCB-HR-T5-300oC | 10 | 350 | 300 | |
FR/AR/AS Resistant | RCB-ARAS | 18 | 450 | 200 |
| RCB-FRAS | 14 | 400 | 250 | |
| RCB-FR | 12 | 350 | 300 | |
Cold Resistant | RCB-CR-T1-- -30oC | 17 | 350 | 300 |
| RCB-CR-T2-- -50oC | 14 | 300 | 300 | |
Chemicl Resistant | RCB-ANTI-ACID | 14 | 400 | 250 |
| RCB-ANTI-ALKALI | 14 | 400 | 250 |
Packaging & Shipping
Company Information
Having specialized in mechanical conveyor systems products for more than 15 years,Jinhua Gold Camel Industrial Co.,Ltd has became an experienced and professional supplier in this field.In the year of 2009,to seize more progressive development,Gold Camel got combined with Zhejiang Three-V Industry Group,which is a key Conveyor System & Rubber products manufacturer of about 20 years history in China.
Our products are designed and produced under ISO9001 system and strict quality control,which covers various kinds of Conveying System and Fittings, especially Rollers&Pulleys, Chains Sprockets, Rubber Conveyor Belts, V-belts,Timing Belts,Flat Transmission Belts,Fasteners and Clamps; Elevator & Fittings,specially HDPE/Metal Bucket,Screw Flights,Crusher Machines and Fittings,ect.
FAQ
How to order your rubber belt:
Step1: Cover rubber grade,such as FOL, MOL, LOL or working conditions
Step2: Dimension (mm or inch),width,top and bottom cover rubber, length
Step3: Fabric type and plies, EP or NN
Step4: Single fabric strength at breaking, such as EP100,EP125
Step5: Whether you have enquiries or questions, please feel freely to contact us
Samples:
Samples will be sent out by courier within 3-5working days after confirmed.
Normally, the sample is free of charge, but the freight cost should be of clients costs of samples.
In case if any Sample costs charged, it will be refunded to customer on bulk orders.
