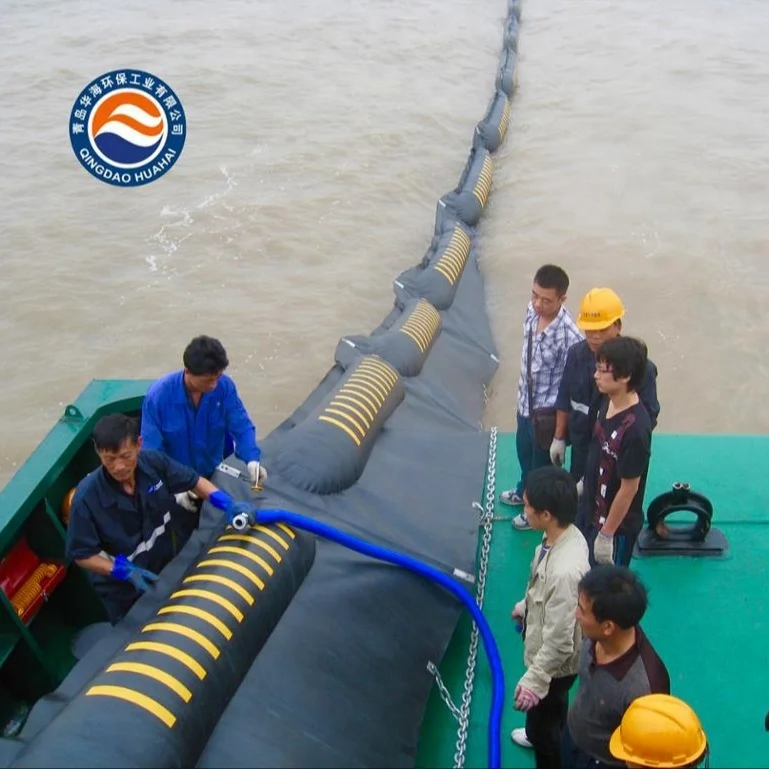

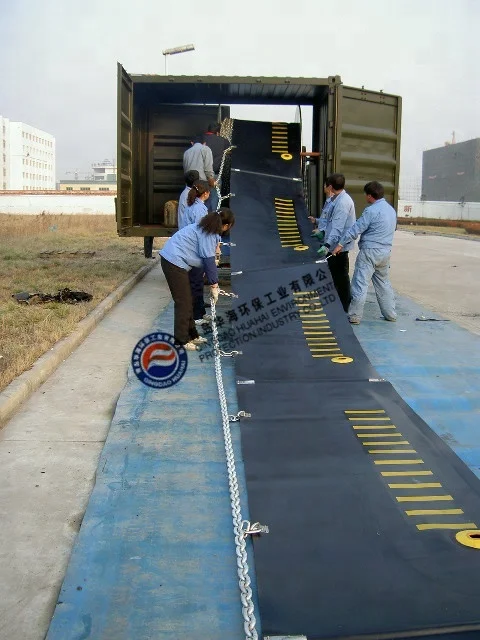

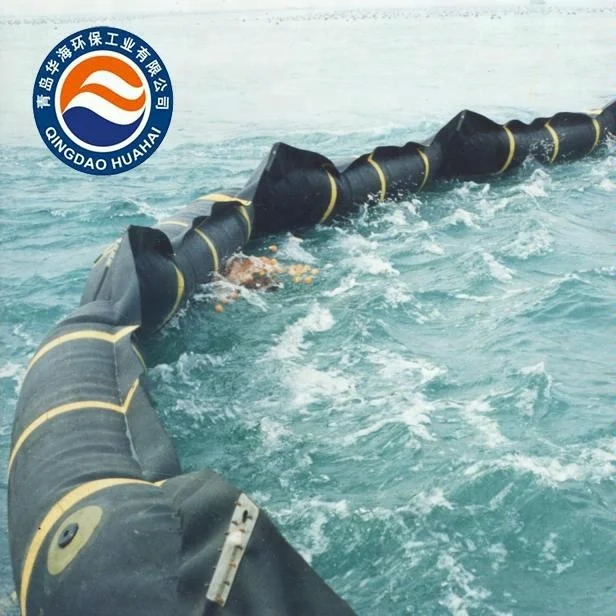

Inflatable rubber boom is specially developed for the containment of oil floating on the surface of water. It is suitable for use in most harbors, terminals and sheltered coastal areas. Shifting in response to an emergency, its main accessories include a power station, an inflator, a tractor, a reel frame and a container. It has been selected by many offshore oil spill response organizations due to its durability, sea-keeping, ease of maintenance and stability under tow.
1.Its framework is made of the double-layer, high strength nylon canvas coated with the oil resistant, ageing resistant, high quality synthetic rubber
2.The unique air valve design allows for easy and speedy inflation and perfect air-tightness
3.Elastic rods are arranged between chambers to make the boom quite stiff to effectively prevent waves from overtopping
4.The tight tensile ballast chains are the barrier preventing the boom body from being broken
5.Either the luminous marking or the color of the rubber coated on the boom can be chosen for easier identification
6.The flame retardant rubber boom can be chosen for the occasion where the high fire rating is required
7.It can be supplied with such accessories as boom tractor, trail rope and anchor block according to the customer’s order.
ITEM
WQJ800
WQJ1000
WQJ1100
WQJ1200
WQJ1400
WQJ2000
WQJ2600
OVERALL HEIGHT (mm)
800
1000
1100
1200
1400
2000
2600
FREE BOARD (mm)
280
360
360
400
500
600
810
DRAFT (mm)
370
430
560
590
700
1100
1400
LENGTH PER
SECTION(m)
100/200
BALLAST CHAIN(mm)
12
14
14
16
16
18
22
DIAMETER OF AIR CHAMBER(mm)
260
320
370
425
480
550
610
LENGTH OF AIR CHAMBER(mm)
3000
VOLUME OF AIR CHAMBER (L)
160
240
280
320
420
580
1100
QTY OF AIR CHAMBER (EA/200m)
60
THENSIL STRENGTH OF BOOM BODY(Kn)
320
400
440
480
560
1000
1300
MAX.WORKING TENSILE STRENGTH(Kn)
110
140
150
170
190
260
280
MAX.WAVE HEIGHT TO WITHSTAND(m)
2
2
2
2.5
3
3.5
3.5
MAX.WIND SPEED TO WITHSTAND (m/s)
15
15
18
20
20
25
25
MAX.CURRENT SPEED TO WITHSTAND (Kn)
2~3
3
3
3~4
3~4
3~4
3~4
MAX.STRAIGHT-LINE TOWING SPEED (Kn)
8
MAX.CURVED-LINE TOWING SPEED(Kn)
3
BUOYANGCY TO WEIGHT RATIO
7.1
8.1
9
8.4
9.9
11
15.3
DEPLOYMENT TIME FOR 200m (min)
15
25
25
28
30
30
35
RETRIEVAL TIME FOR 200m (min)
25
25
25
30
35
40
45
ACCESSORIES
BOOM REEL(m)
1.7×2.2×2.3
1.9×2.2×2.3
2.0×2.2×2.3
2.2×2.2×2.3
2.4×2.2×2.4
3.2×2.2×2.4
4.0×2.2×2.4
DIMENSIONS OF CONTAINER(m)
3.2×2.4×2.6
3.2×2.4×2.6
3.5×2.4×2.6
3.6×2.4×2.6
3.9×2.4×2.6
4.7×2.4×2.6
5.5×2.4×2.6
POWER OF HYDRAULIC PACK(KW)
7.5
14
INFLATING@DEFLATING MACHINE(KW)
2.2~3
