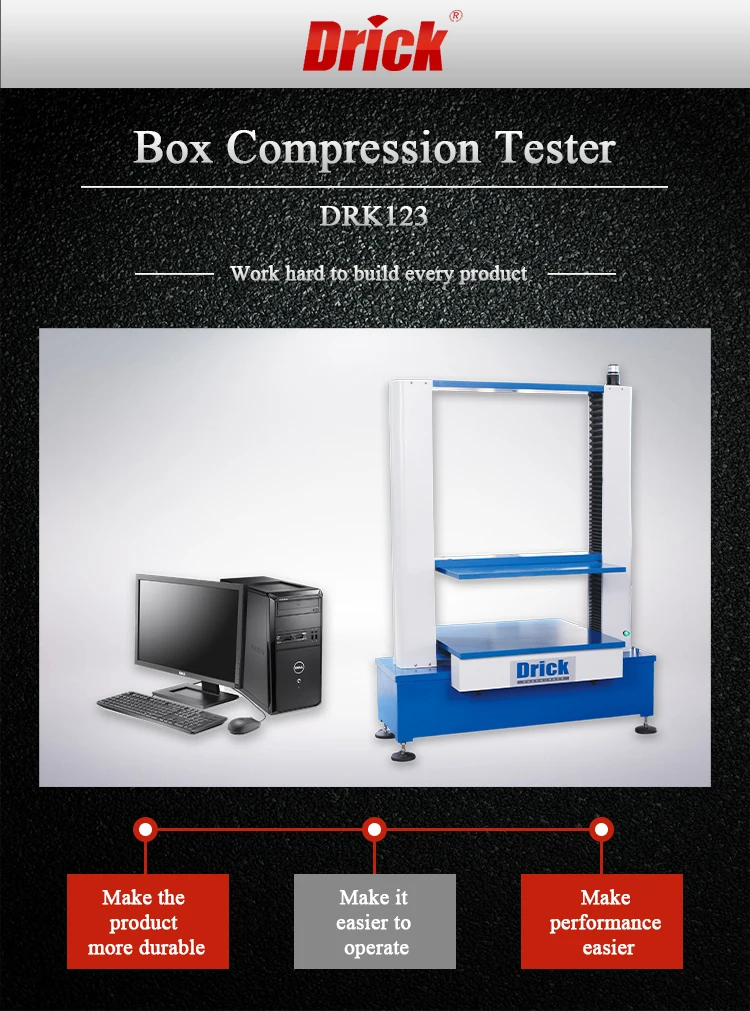

DRK123 Box Compression Tester
Product Production

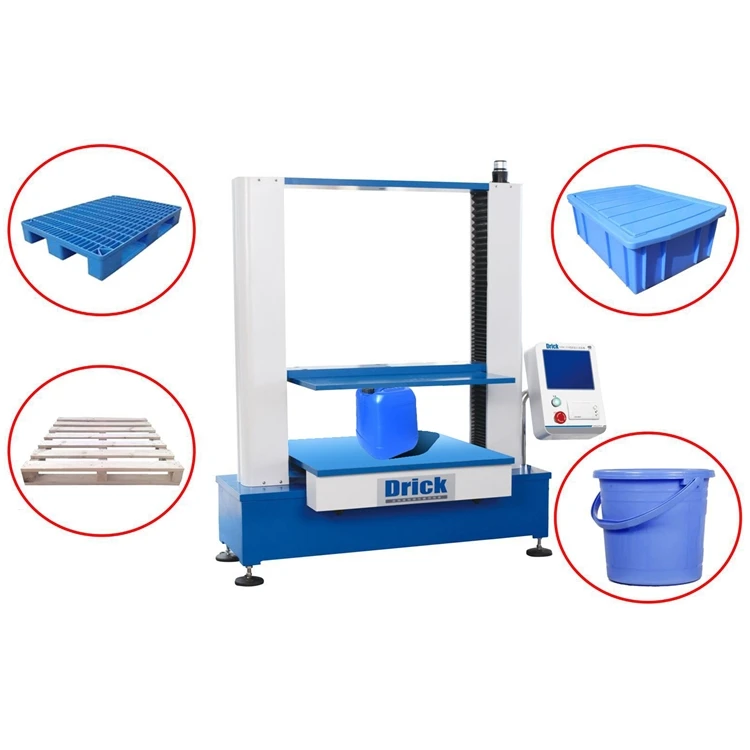

DRK123 Box Compression Tester is professionally used to test the compression resistance property of plastic bucket, (edible oil, mineral water), fiber drum, carton, paper, cans, container barrels (IBC barrels), plastic container, plastic crate, plastic seat and other plastic container and products.
Product Features
1. 8 Inch touch screen operation no need to change to another page, optional with Computer controlling system, which would display the curve with the changing of the test force; the force and value can be printed into excel and word by printer, our standard configuration with the touch screen is 8 inch touch screen with thermal printing function, and computer configuration is Lenovo brand(or others) and HP brand of printer; The other operation system is eight-inch color touch-screen control panel, high-speed ARM processor to ensure high automatility, fast data collection, test automatically and intelligent judgment;
2. Three test methods including compression test; stacking test; pressure standard test;
3. The screen dynamic could display sample No., force-time, force-displacement, force-deformation and real-time pressure curve and initial pressure to analyze test process.

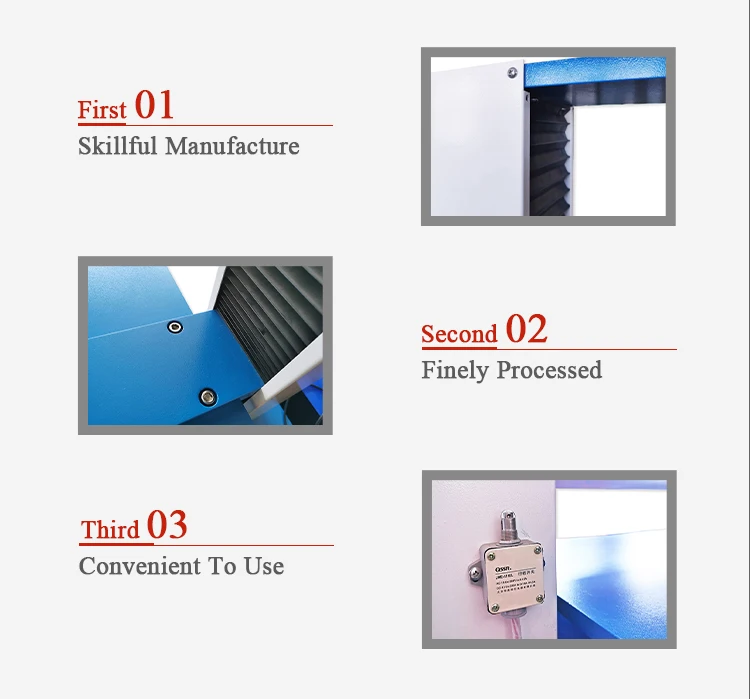

4. It adopt open structure, double screw, double column, reduction gears drive reduction, good parallelism, good stability, strong rigidity, long service life;
5. The serve motor control system is with high precise, low noise and high speed advantages; accurate position and fast response speed to save test time;
6. 24 high-precision AD converter (resolution up to 1 / 10,000,000) and high precision weighing sensor to ensure the speed and accuracy of the data acquisition of the instrument force;
7. Ultimate travel protection, overload protection, bugs prompt and fault prompts intelligent configuration to ensure safe operation; Micro-printer can print test data easily.
Technical Standards
1. GB/T 4857.4 (Packaging - transport packages compression test method)
2. GB/T 4857.3 (Packaging - transport packages static load stacking test method)
3. ISO2872 (Packaging -- Complete, filled transport packages -- Compression test)
4. ISO2874 (Packaging -- Complete, filled transport packages -- stacking test)
5. QB/T 1048 (Cardboard and carton compression testing machine)
Product Parameters
Model | DRK123A | DRK123B | DRK123C | DRK123D | DRK123E | Other sizes | |||||
Test Size | 600*600*600mm | 800*800*800mm | 1000*1000*1000mm | 1200*1200*1200mm | 1200*1200*1500mm | Can be customized | |||||
Test Range | 10KN-20KN-50KN-100KN | ||||||||||
Accuracy | 1 grade (optional) | ||||||||||
Load Accuracy | 0.2% | ||||||||||
Resolution | 0.1N | ||||||||||
Deformation Resolution | 0.01 mm | ||||||||||
Pressing Plate | Parallelism between upper and lower pressing plate: ≤1mm | ||||||||||
Test Speed Range | 1-200 mm/min (infinitely variable speeds) | ||||||||||
Return Speed | 1--200 mm/min (infinitely variable speeds) | ||||||||||
Stroke | 600 mm | 800 | 1000 | 1200 | 1500 | customized | |||||
Sensor Qty. | 1 pc or 4 pcs | ||||||||||
Configuration | Imported brand sensor, servo motor, and ball screw rod, touch screen&computer controlled optional | ||||||||||
Power | AC 220V 50 Hz | ||||||||||
