Continuous High Automation Vacuum Triple effect Natual Circulation Evaporator

Triple-effect natural circulation evaporator is widely applied in pharmaceutical industry, food industry, dairy product industry, chemical industry and other industries, for concentration of liquid, especially thermal sensitive material under vacuum and low temperature condition.

The concentrate produced is of strong flavor and unform quality. The concentration process is proceed under sealing and non-bubbles conditon, free of running and pollution.

Configuration

--Effect I Tubular heater , Effect II Tubular heater , Effect III Tubular heater,

--Effect II Evaporative tank , Effect II Evaporative tank, Effect III Evaporative tank ;

--Condenser;

--Condensate receiving tank;

--Vacuum system;

--Opeation platform.

Charateristics

--External heating and natural circulation under vacuum condition, high evaporating efficiency.

--3 effect evaporating at the same time, the secondary steam is reused fully to reduce steam consumption.

-- Multi-functional:

a) recovering alcohol, up to 80%;
b) concentrate 3 different kinds of material by 3 effect;
c) working continuously and intervally.

--Easy cleaning, unfold the top and bottom cover of the heater to clean.

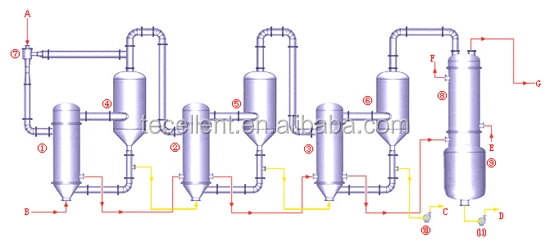

Process Flow Diagram
