Product Overview

Description

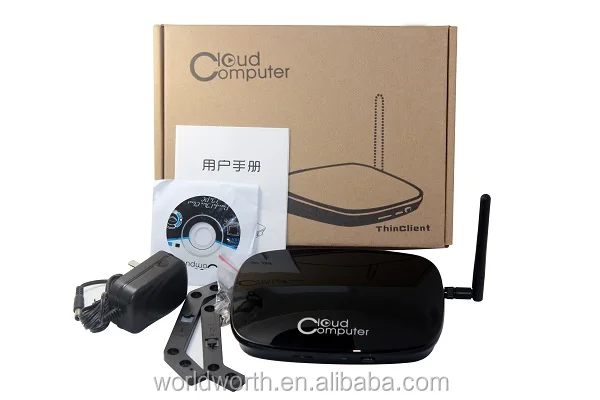

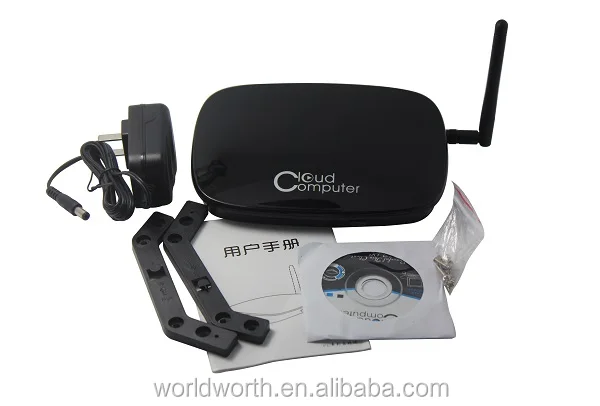

 Cheapest All Winner A10 Linux Thin Client Network Terminal PC Station FL100

Green & Cost-effectiveOne PC share with many users. Saving!

FL100 Features
1. High compatible with Windows/Linux OS
No need to set time and date. Connect with host pc directly! 2.  and VGA Resolution support
Max support 1920*1080P.
Support 1366*768 resolution which can support irregular monitor such as 15.6/18.5inch
3. Attractive price&Excellent working performance
TS660(WIN CE 6 OS )<FL100 2 times faster <FL300(Linux OS) 2 times faster
4. COM port(For OEM secondary development )





Main function:
FL100 makes the remote connection to the server by RDP 7.0 protocol,it is free to use the softwares on the host after connection,such as office software,financial software,ERP software,real estate software,airline flight information software etc.
Fast to connect, easy to operate & maintain, FL100 is one green computer that not only reduces the cost of enterprise computer inputs,but also reduces maintenance costs,it meets the corporate office network construction and easy maintenance, and security requirements, greatly improves the corporate office efficiency, provides customers with unprecedented convenience.
RDP7.0 remote connection
Windows 7 OS is very stable,it features a higher security. FL100 thin client connects to windows 7 os server by RDP 7.0 protocol,it unified customer service to each user,and upgrades and maintenance work in one step, make it being "zero" maintenance.
Overview HD big picture
Support most picture formats,such as JPG,BMP,GIF,TIFF,PNG etc,also supports picture zoom and other operations.
High-speed WIFI module
Without cumbersome wiring, more convenient to move,FL100W provides users a better network environment.



FL100 Working Principle

Thin Client Application Areas
1. Computer Digital Libraries
2. Educational Institutions
3. Solar Computer Applications
4. Schools, Computer Labs
5. Small, Medium, Business & Office Applications
6. Manufacturing Industries & Much More
7. Computer Education for Rural Areas

Specification
CPU Model	All winner A10 Single-core 1G
Protocol	RDP7.0
RAM	DDR3 256M
Flash	512M
Os	Inner core Linux3.0
WIFI	Optional(150Mbps)
Resolution	VGA: 800*600, 1024*768,1366*768,1280*1024, 1440*900 HD: 1280*720P,1920*1080P
Server OS Supported	Windows XP / Windows 7/Linux OS(Recommend win7)

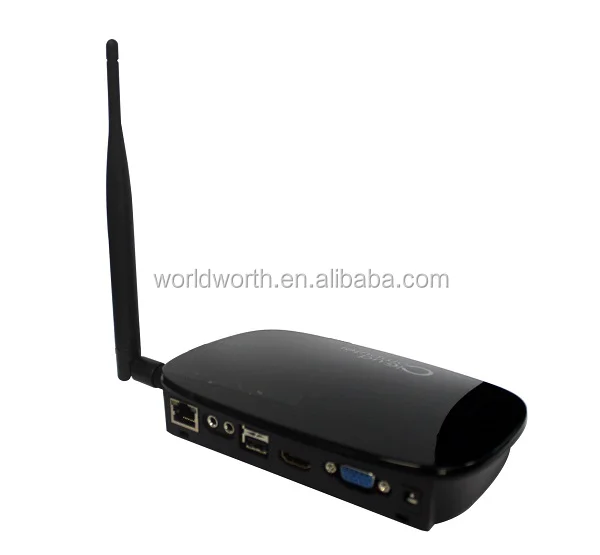

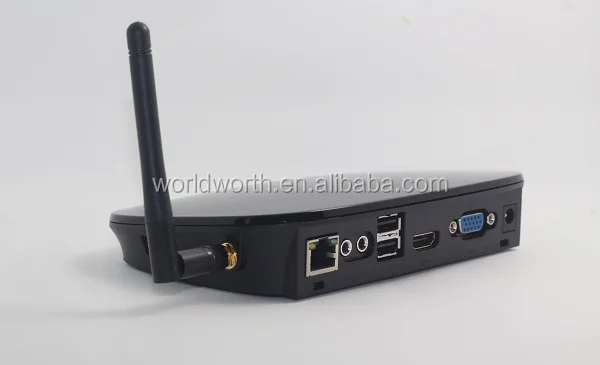

I/O
Output	1* port 1*VGA port 4* USB2.0 port 1*Audio output port
Input	1*power 5V-2V port 1* LAN port 1* Audio input port 2*PS2 port(support mouse and keyboard) 1*WIFI
Appearance
Shell color	Black /white
Size	145X92X25MM
Weight	0.5KG
Power	5V/2A
Consumption	5W
Performance
1	Strong compatibility
2	No time display problems
3	Dual mode display /VGA
4	Compare:N380(WIN CE 6 OS )<FL100 2 times faster <FL300(Linux OS) 2 times faster
