15 inch ELO touch screen monitor cost effective alternative
Product Description
Industrial Monitor
DESCRIPTION
ITD industrial open frame LCD displays deliver cost-effective, high quality display solutions for OEMs and system integrators requiring displays integrated into an application, which are fully-integrated, commercially off-the-shelf units that combine high-performance different touch technologies in industrial-grade LCD flat panels, with sleek and flush mount open frame front surface industrial design. ITD industrial monitors provide reliability, durability, and expected long product life. The rugged all steel frames and highly-durable glass front surface provide the durability needed for demanding industrial environments. ITD full-range selection is provided in screen sizes from 5” to 82”.
BENEFITS
1. Long lasting product cycle for continuity thru all phases of project rollouts and servicing
2.Exceptional quality and highly engineered industrial monitors
3.Delivers drift-free operation with lifetime of more than 35 million finger touches like resistive, IR, SAW, Scap, Pcap, etc
4.All steel construction designed for harsh and industrial environments
5.Easy-to-install console and Open Frame chassis-mount display
6.Multiple mounting options (100mm VESA mount and side brackets)
7.Accuracy in high-use applications
9.Supports Windows, Linux OS, Android, Mac OS, etc
10.CE, FCC, RoHS, ISO9001:2008 compliance.
11. VGA, DVI, AV, S-Video, BNC etc multiple inputs/outputs optional
12.Wide operating temperature from -20 to 80 degrees optional and suppports 7/24 running
SPECIFICATION
Panel | Cell Type/Glass Surface | TFT |
Aspect Ratio/Size | 15” 4:3 | |
Active Area/Pixel Pitch | 304.128(H)×228.096(V)/0.297 | |
Native Resolution/Colors | 1024 x 768 /16.2M | |
Brightness/Contrast | 250nits/1000:1 | |
Response Time | 5ms | |
Viewing Angle(Typical) | 85/85/80/80 | |
Light Source | CCFL 50000hours’lifetime | |
Input signals | VGA,DVI | |
Convenient Features | Backlight adjustment, Plug & Play, OSD Multi-Languages | |
Power | External AC-to-12VDC power adapter with universal/Auto-Sensing | |
Power Consumption | Operation/Power Saving | Bellow 25W |
Touch Panel | SAW Touch with vandal proof/water proof | |
Touch interface | USB and RS232 | |
Key Control | Power on/off with LED, Menu, Select, Adjustment(Right/Left) | |

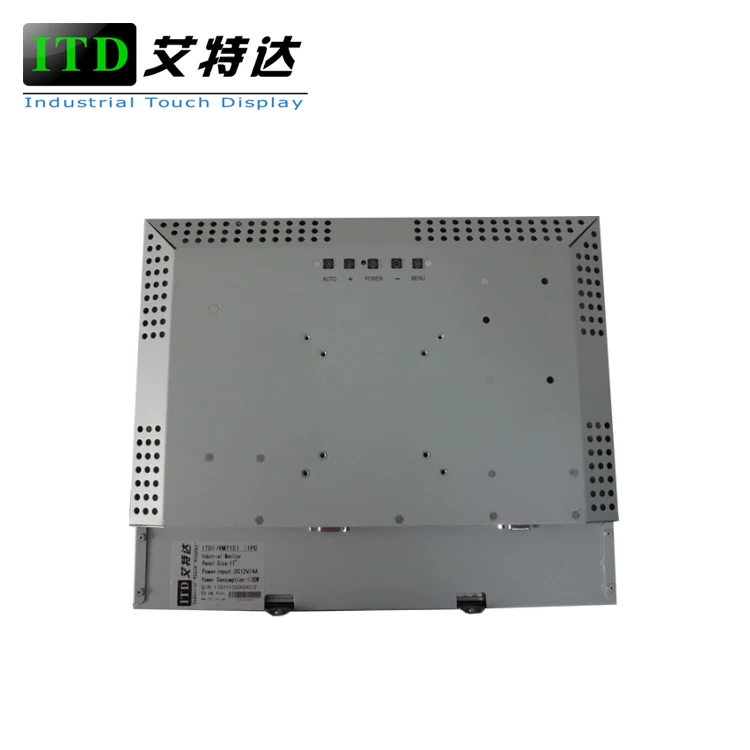

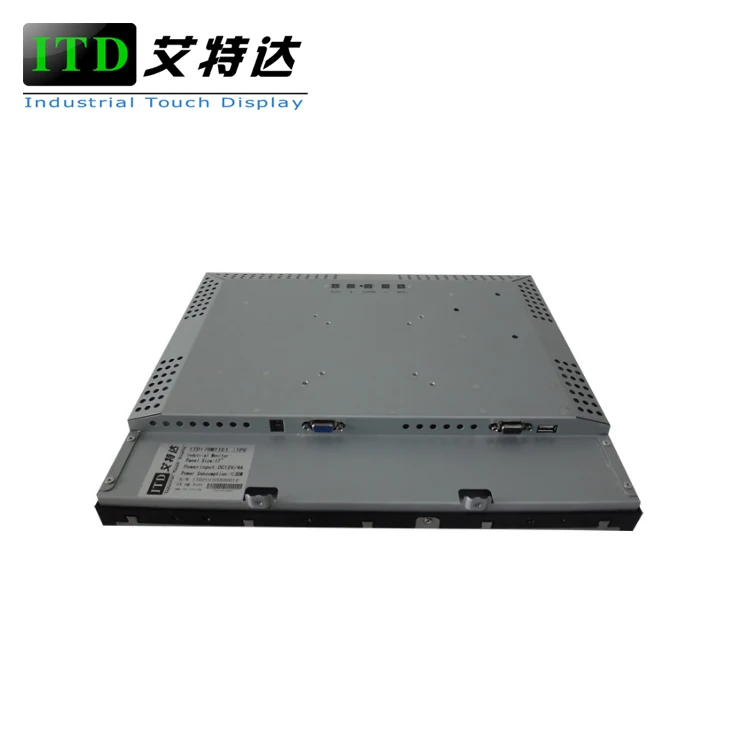

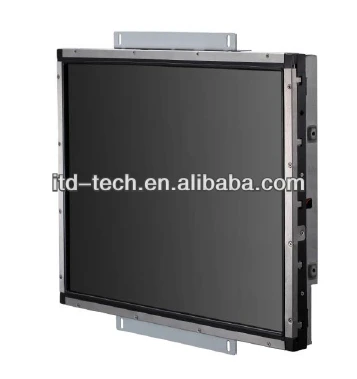

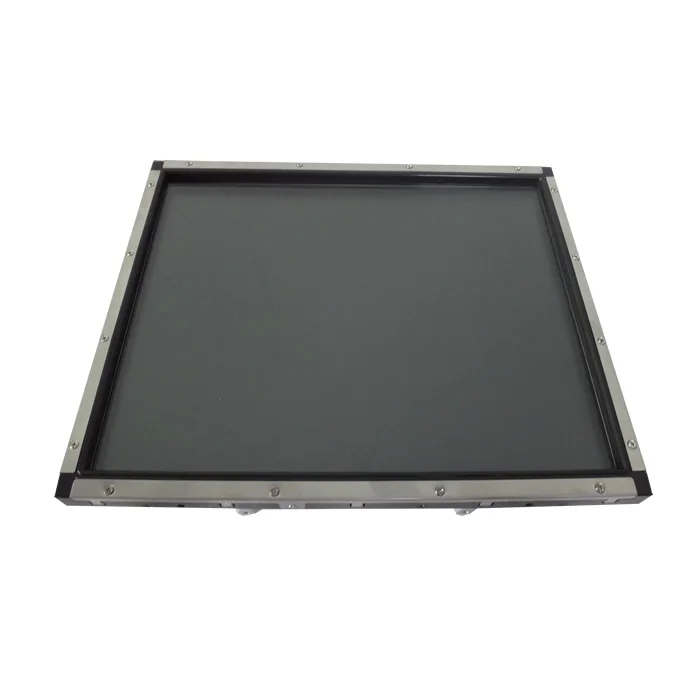

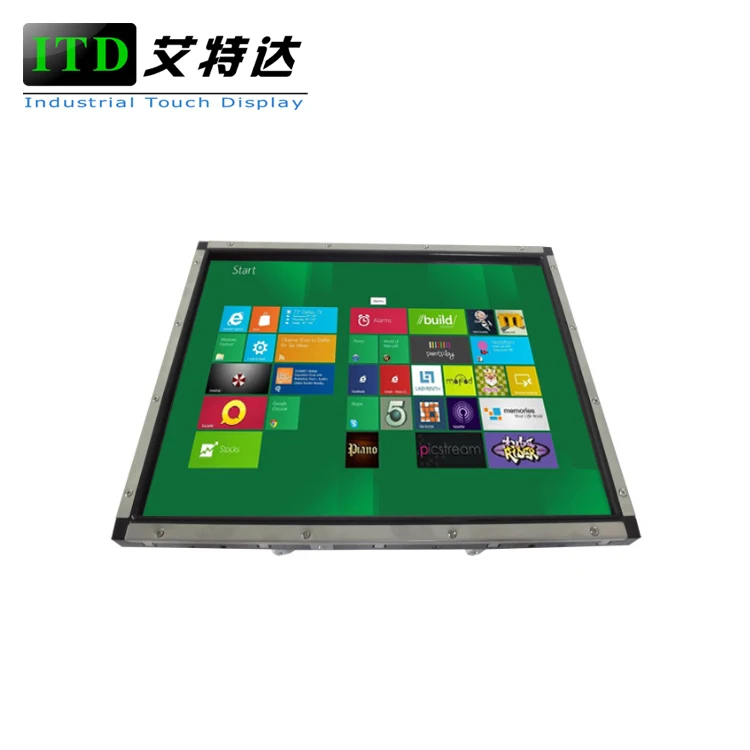

PRODUCTS IMAGES
Packaging & Shipping
PACKAGING&SHIPPING
Firm, safe, standard cartons with foams
Wooden Shelf or Case for big sizes and big quanity
Delivery Date: 7-15 days
Our Services
AFTER-SALES SERVICE
1-3 years’ warranty with DOA, RMA and Paid Service
Warranty
DOA Service (Dead On Arrival):
To run DOA within 30 days after shipment. Goods are guaranteed to exchange when it is returned.
New product operation would be completed within 5-20 working days. Round trip shipping costs are paid by ITD. The following failures are allowed to be serviced by DOA:
A: The image cannot display normally.
B: It cannot be powered on.
C: The internal functions of monitors are out of work.
RMA Service (Return Merchandise Authorization):
To run RMA within 1 year after shipment. Maintenance time lasts from 5 to 20 working days according to the difficulty and specific situation. Returning shipping cost after maintenance is paid by ITD.
Company Information
ITD is a worldwide leading industrial touch display equipment’s solutions provider with an after-service center in Netherlands combining researching, developing, manufacturing, marketing & service with an excellence in varied kinds of industrial displays and touchscreen products started from 2005 and later expanded to embedded panel PC, digital signage, rugged stainless steel/aluminum alloy IP65 industrial displays, and ultra-wide stretched bar LCD displays for industries ranging from banking, transportation and logistics, to automation, marine, railway, oil and gas, energy, healthcare, and field service.
