20CrMnMo small module large diameter ring gear

Product Overview

Description

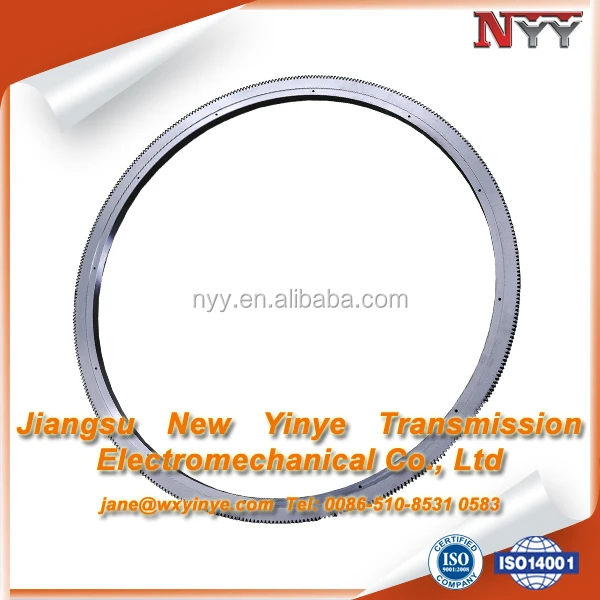

20CrMnMo small module large diameter ring gear

Technical Specification

Product name	large diameter ring gear
key word	external teeth,small module,more teeth,involute
Brief description	AGMA grade 11,for textile machinery
Tooth profile	involute
Material	20CrMnMo
Process	forging+carburizing+grinding
Pressure angle	20°
Model	Mn=3.5,Z=320,a=20°;
Original place	jiangsu,china
Brand	NYY



Our advantages

• Professional Ring Gear Manufacturer
• Experience in Cooperate with Fortune 500 Companies
• Professional Engineering Capability
• Stable Quality
• Reasonable Price
• Small Orders Accepted
• Continuous Improvements
• High Product Performance
• Prompt Delivery
• Professional Service

Production Process



Professional production team, production line, experienced technical experts who engaged in this industry for

more than 10 years. We have the professional production line for  gears:
1.High speed milling machines
2.internal and external grinding machine

3. advanced equippment for producing gears

4.all kinds of machining center,NC lathing machine,shaper,hobbing machine



Inspection Process



NYY quality control emphasis on APQP planning stage,pre strict quality recognition,make QCP quality plan make

preventive measures for quality issues that may occurred and focus tracking in the implementation process.focus

on the detailsof the quality process control.to ensure that meet or exceed customers quality requirements.



R&D Ability



our company owns more than 50 patents.our company has introduced several advanced engineering design

software and applied more than 30 new technologies and new processes. also,our company is certified by

ISO9001:2008 and ISO14001:2004.

1.suitable profile and lead modification makes meshing more perfect!

2.professional modeling analysis softward,dynamic simulation technology can reduce the prophase test

   processes,make the design more practical



Machining Capability



Material	Alloy Steel	Casting Steel	Gray cast iron	Ductile Iron	Weldment
	20CrMnTi	20CrMnTi	HT200	QT400-18	20CrMnTi
	20CrMnMo	20CrMnMo	HT250	QT400-15	20CrMnMo
	20 CrMo	20 CrMo			20 CrMo
	35CrMo	35CrMo			35CrMo
	42CrMo	42CrMo			42CrMo
	20Cr2Ni4A	20Cr2Ni4A			20Cr2Ni4A
	20CrNiMo	20CrNiMo			20CrNiMo
	20CrNi2Mo	20CrNi2Mo			20CrNi2Mo
	40CrNiMo	40CrNiMo			40CrNiMo
	18CrNiMo7-6	18CrNiMo7-6			18CrNiMo7-6
	17CrNiMo6	17CrNiMo6			17CrNiMo6
	34 CrNiMo6	34 CrNiMo6			34 CrNiMo6
	18Cr2Ni4WA	18Cr2Ni4WA			18Cr2Ni4WA
	18Cr2Ni4WE	18Cr2Ni4WE			18Cr2Ni4WE
	45 C	45 C			45 C
	40Cr	40Cr			40Cr
	38CrMoAl	38CrMoAl			38CrMoAl
	16Mn	16Mn			16Mn
	16MnCr5	16MnCr5			16MnCr5
	GCr15	GCr15			GCr15
Modulus	1mm-50mm
Accuracy	DIN Class 4, ISO/GB Class 4, AGMA Class 13, JIS Class 0
Standard	DIN, ISO/GB, AGMA, JIS
Heat treatment	Quenching and tempering, gear teeth induction quenching, nitriding, carburization
Application	Wind turbine, locomotive, feeding machinery, metallurgy machinery, mining machinery
Gear shaft length	2500mm max.
Weight	15 tons max.
