SALZER ZL 803 для вытяжного вентилятора IP54 ABS RAL7035 RAL7032 ABS Воздушный Фильтр

Product Overview

Description

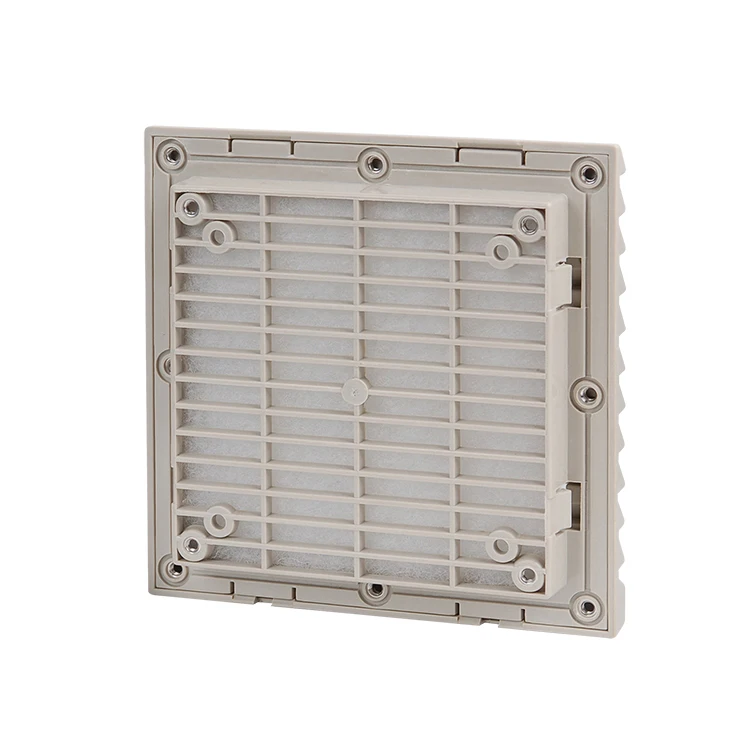

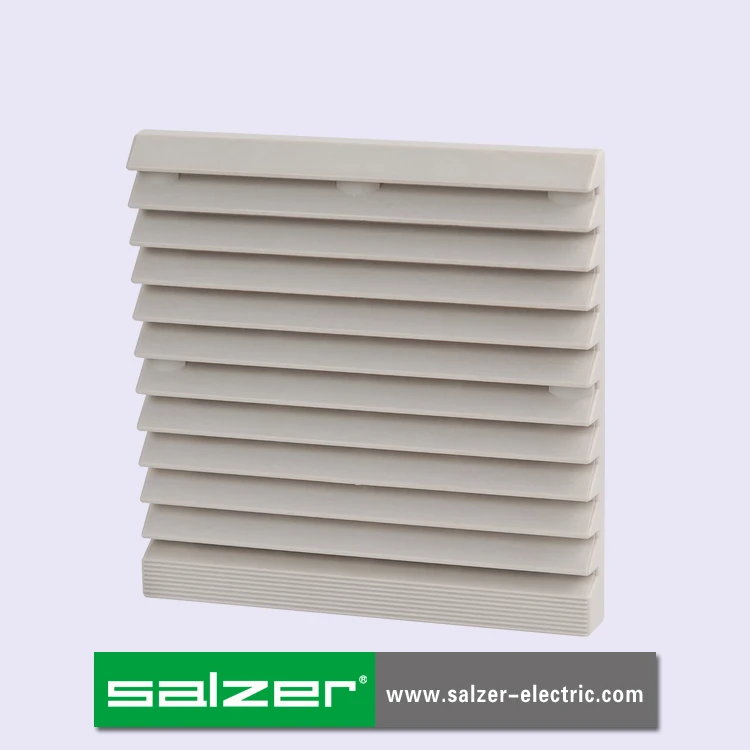

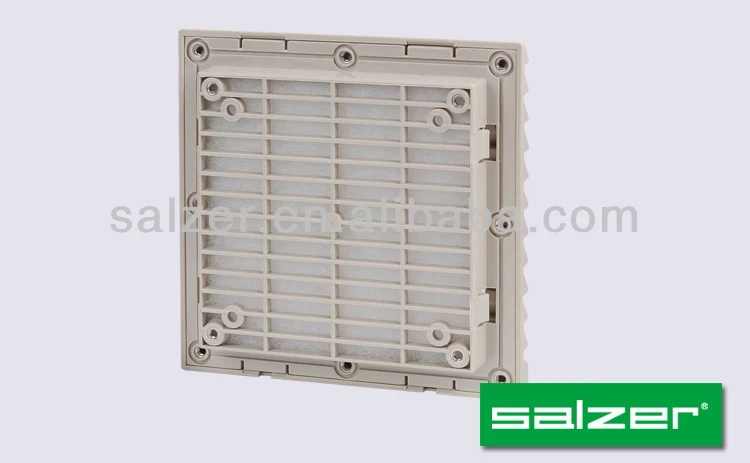

SALZER ZL-803 exhaust fan filter

General Information

Material: The fan dust filter adopts ABS resin for shell to improve its resistance to flame and ultraviolet ray. In addition, it adopts imported nylon fiber synthetic resin for filter gauze to achieve high filtration efficiency AFI 80%.



Exquisite design: The elegant shell is of ultra-thin design. The ventilator is designed at a 45-degree angle so as to obtain optimum ventilation, waterproof and dustproof effect. The use of a sealing washer at the rear end of the filter gauze further improves product's water-proof performance.
Performance: The fan dust filter ensures great heat dissipation of the controller and precision electronic parts, resulting in longer service life and reduced failure rate.



Technical Parameters of the Fan Dust Filter

Model	Dimension (mm)	Installation (mm)	Effective wind rate	Max. wind speed	Collection coefficient	Temperature range	Material	Fireproof class	Protection grade	For fan size (mm)
ZL-803	148.5X148.5	122X122	25.0m3 /min	2.0m /second	88%	-10 °C ~ +55°C	ABS resin	VO,UL94	IP54	120X120
ZL-804	204X204	175X175	50.0m3 /min	2.0m /second	88%	-10 °C ~ +55°C	ABS resin	VO,UL94	IP54	120X120, 150X150, 150X172, Φ172X51
ZL-805	255X255	223X223	80.0m3 /min	2.0m /second	88%	-10 °C ~ +55°C	ABS resin	VO,UL94	IP54	Φ172X51, 150X172, 200X200
ZL-806	320X320	283X283	120.0m3 /min	2.0m /second	88%	-10 °C ~ +55°C	ABS resin	VO,UL94	IP54	Φ172X51, 200X200, Φ230X65





As a specialized fan dust filter manufacturer and supplier in China, Salzer also provides fan filter, cam switch, AC axial fan, LED indicator, push button switch, and high temperature wire, among others.



We at Salzer back up our products with a 12 or 13-month warranty, during which substandard products are replaced free of charge. In addition, we can offer customize products according to customers' sample, drawings or other requirements. Free product samples (less than USD30) and wearing parts are also available, upon request. As a result, customers can feel secure in purchasing our axial fan, fan filter, cam switch, isolator switch, push button switch and LED indicator.



Mini order amount USD5,000

More detail informations, please feel free to contact us!
