Product Overview

Description

focusing on products including variety of plate heat exchanger, tube heat exchanger, heat exchanger units and verification facility etc. Our loyal customers are mainly from the residential, commercial and industrial market.

Milk Plate Cooler Plate Heat Exchanger Milk Chilling Plate

Plate Heat Exchanger Price Good

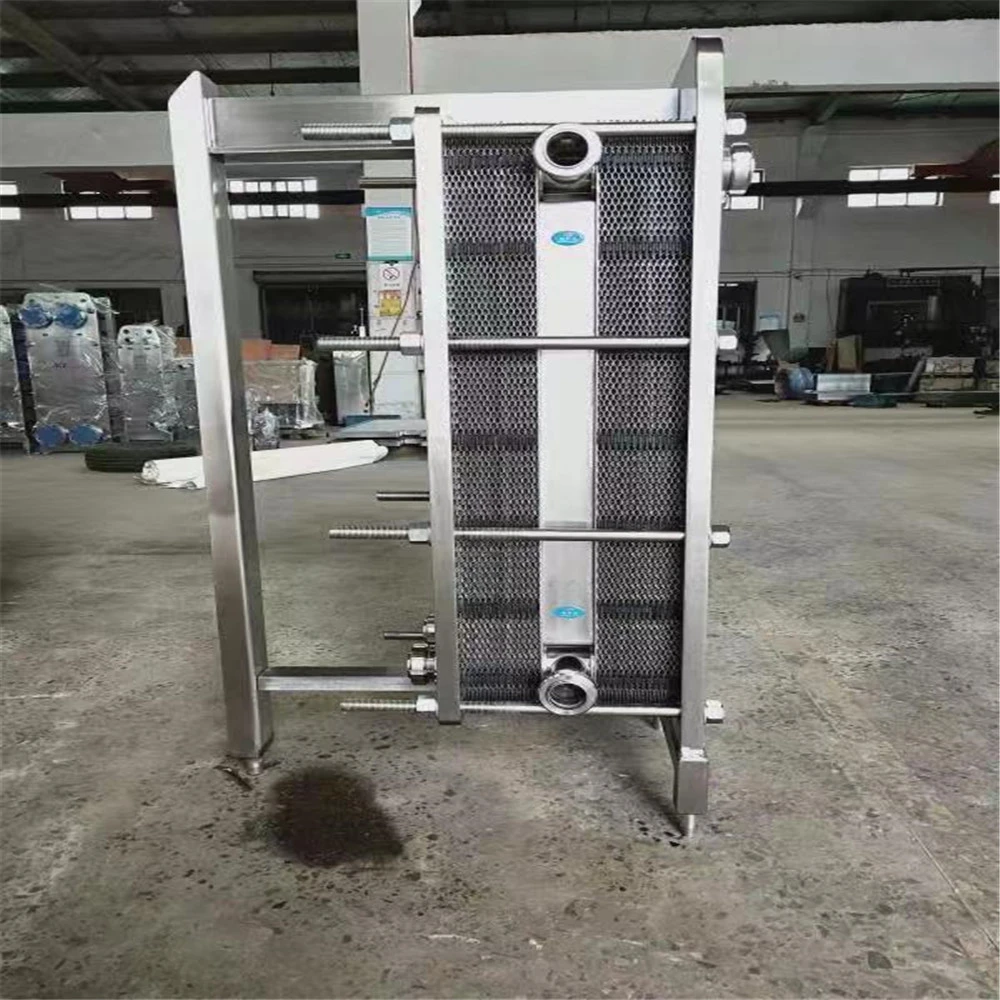

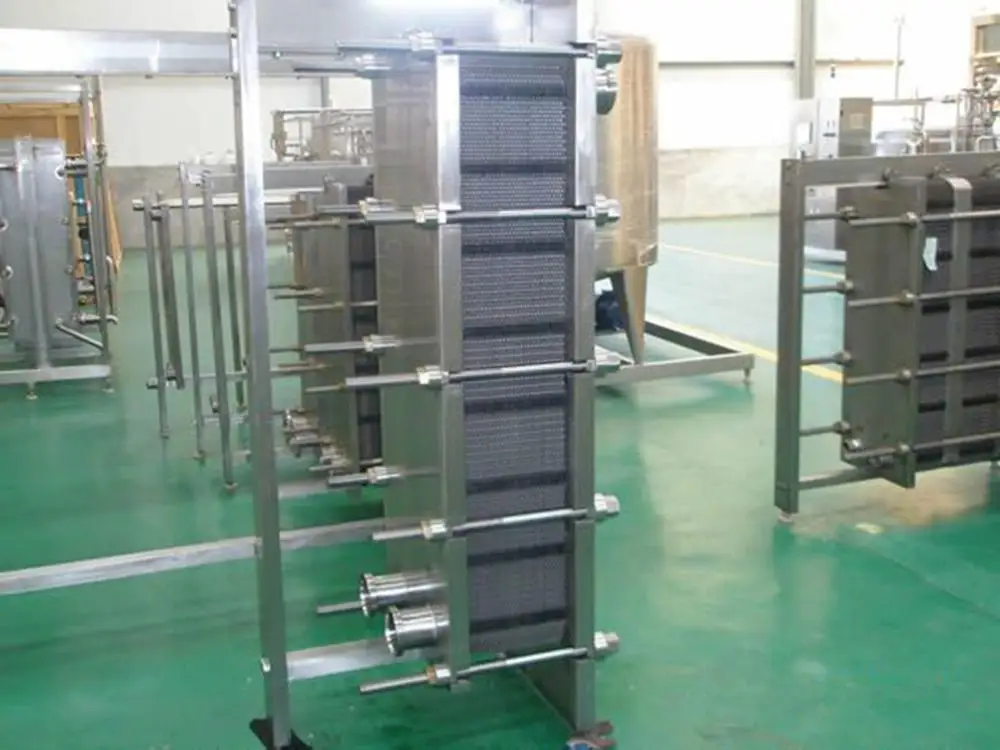

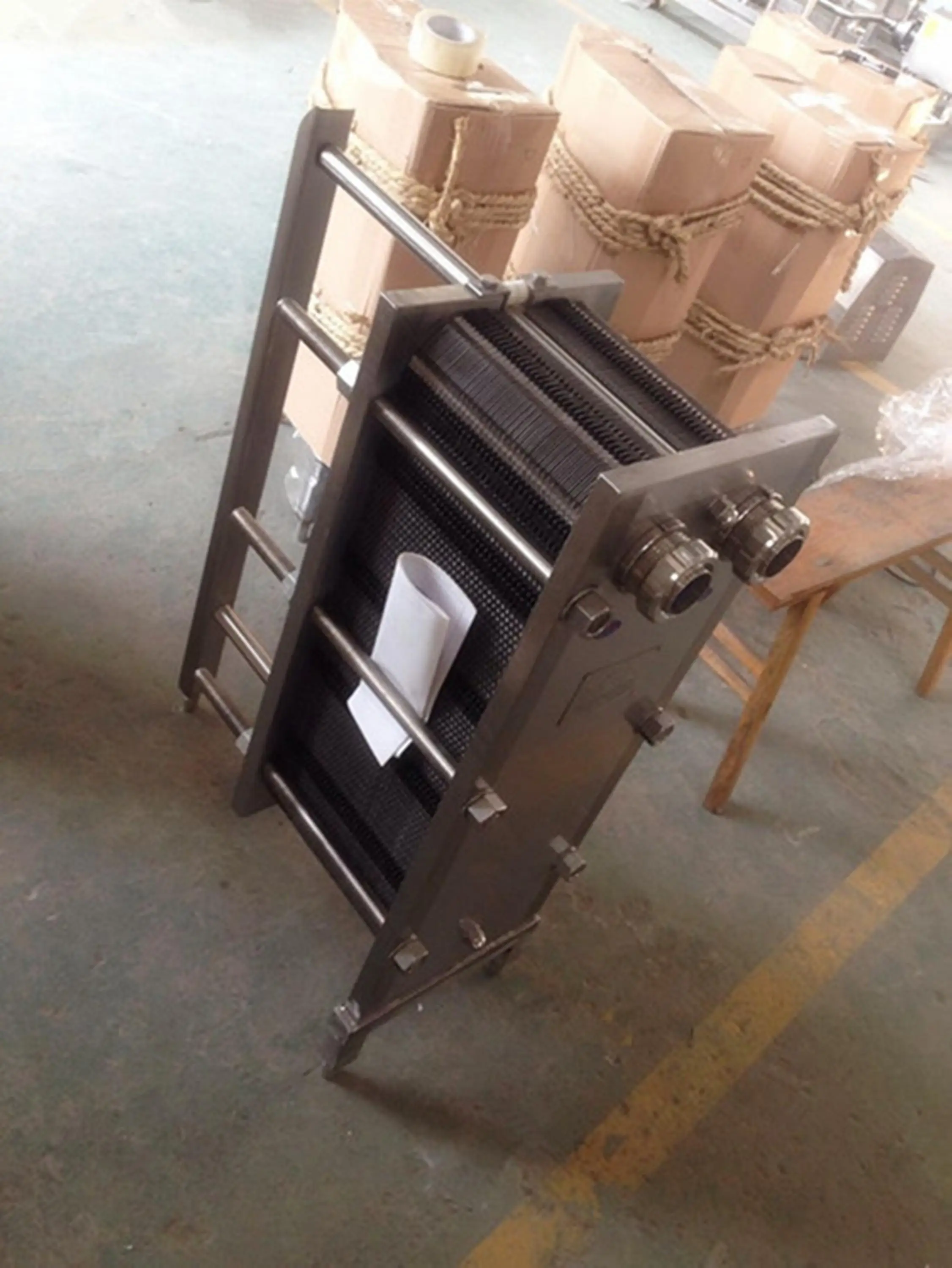

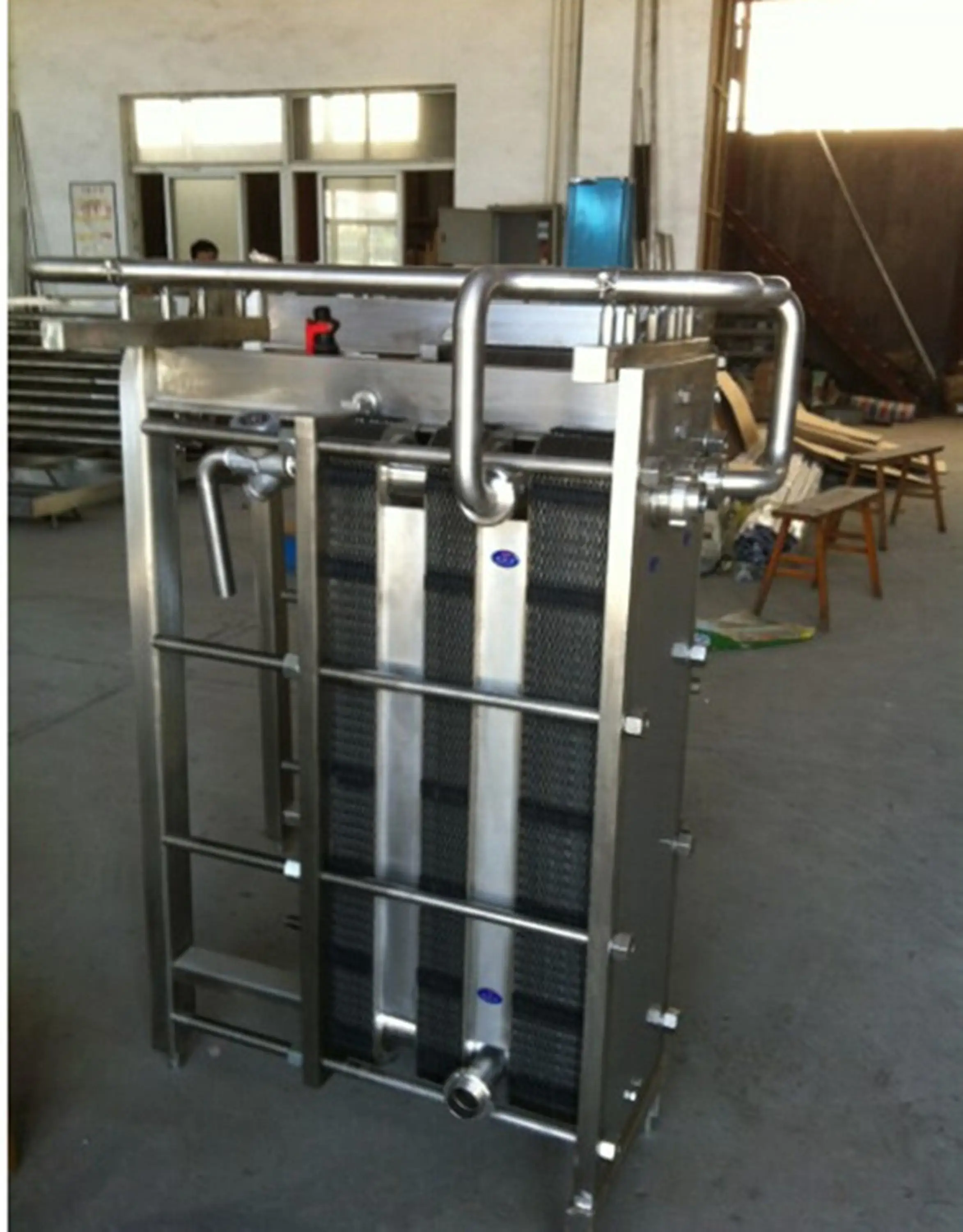

A plate heat exchanger consists of a set of corrugated metal plates, rubber gaskets and frame. Flow channels are formed between plates and are sealed by gaskets. Hot and cold fluids flow through their respective channels alternately under the guidance of gaskets.

Features:

• Saving investment costs;




• Less space occupation;




• Narrow terminal temperature gap;




• Plates can be increased or decreased flexibly as required;




• Few hold-up volume;




• Convenient maintenance.


• Stainless steel SS304&SS316

For plates:

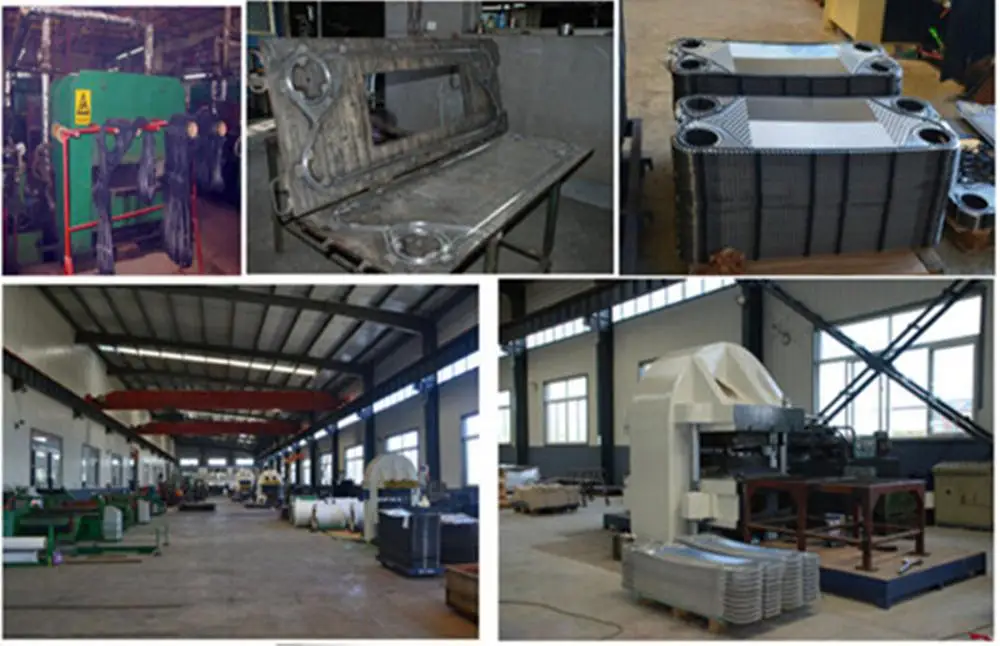

*Our production capacity covers more than 300 specification and size plates, the plates function equals to the famous sondex etc brand PHE manufactures,;

*Plate Port diameter 29mm to Port diameter 328mm, plate width from 125mm to 995mm, height from 429mm to 2245mm,thickness from 0.5-1.0mm.

Plate material	Applicable fluids
Stainless steel(SU304.316 ect)	Clean water, river water, edible oil, mineral oil
Stainless steel & Ti, Ti-Pd	Sea water, salty water, salt compounds
20Cr, 18Ni,SMO	Dilute sulfuric acid, water solution of salt matter, Inorganic solution
Nickel	High temperature and high concentration of caustic soda
Hastelloy	Concentrated sulfuric acid, Hydrochloric acid, Phosphoric acid

Milk Plate Cooler Plate Heat Exchanger Milk Chilling Plate

Gasket

We produce and supply many kinds of gasket for plate heat
exchanger, certified by ISO9001,

Rubber Type	Fluorubber	EPDM	NBR
Tensile Strength MPa	≥13	≥16	≥17
Elongation   %	≥120	≥170	≥200
Shore A Hardness	80±5	80±5	75±3
Tear Strength KN/M	≤30	≤30	≤30
Compressive Deformation	24h×23≤2.5	24h×23≤5	24h×23≤2.5
	24h×180≤15	24h×150≤15	24h×125≤15
Ozone Resistance	Excellent	Excellent	good
