Product Overview

Description

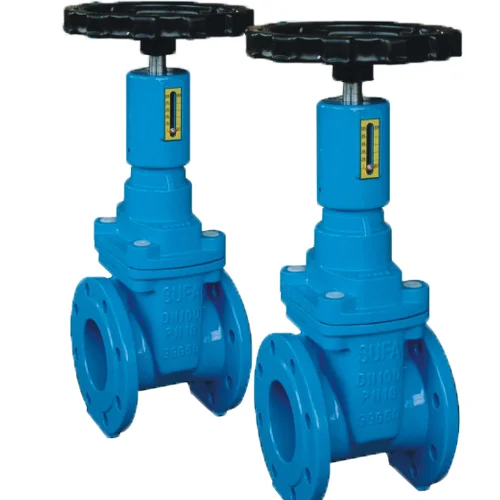

SUFA Brand DN300 Manual Flange End EKB Resilient-seated Gate Valve With Signal


GGG50 Water Valve


Quick Details




Design standard :DIN3350 Part 4


Flange :DIN2501


Face to face dimensions:DIN3202(equal TO ISO5752)


Testing standard:DIN3230 or JB/T9092


Working temperature:NBR  <80°C


                                  EPDM<120°C


                                  FPM  <160°C


Technical characteristics:

























Testing standard



DIN3230 or JB/T9092



Nominal pressure



1.0Mpa



1.6Mpa



Strength testing



1.5Mpa



2.4Mpa



Functional testing



1.1Mpa



1.76Mpa

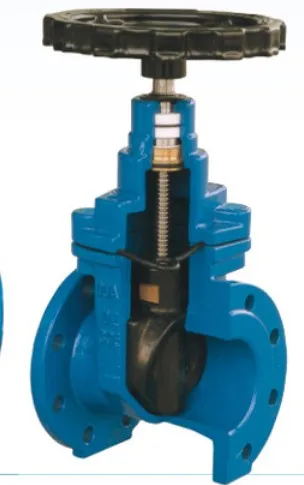

 Main components and their materials:




































No.



Name



Material



1



Body /bonnet



QY500-7


GGG50with internal and external epoxy resin coating



2



Wedge



GGG50with NBR/EPDM OR FPM coating



3



Stem



Stainless steel



4



Stem nut,bushing



ZCuAl10Fe3 Bronze



5



Washer ,O-Ring



NBR/EPDM or FPM
