3. Finish treatment: white zinc plated, yellow zinc plated.
4. Size: M6—M20

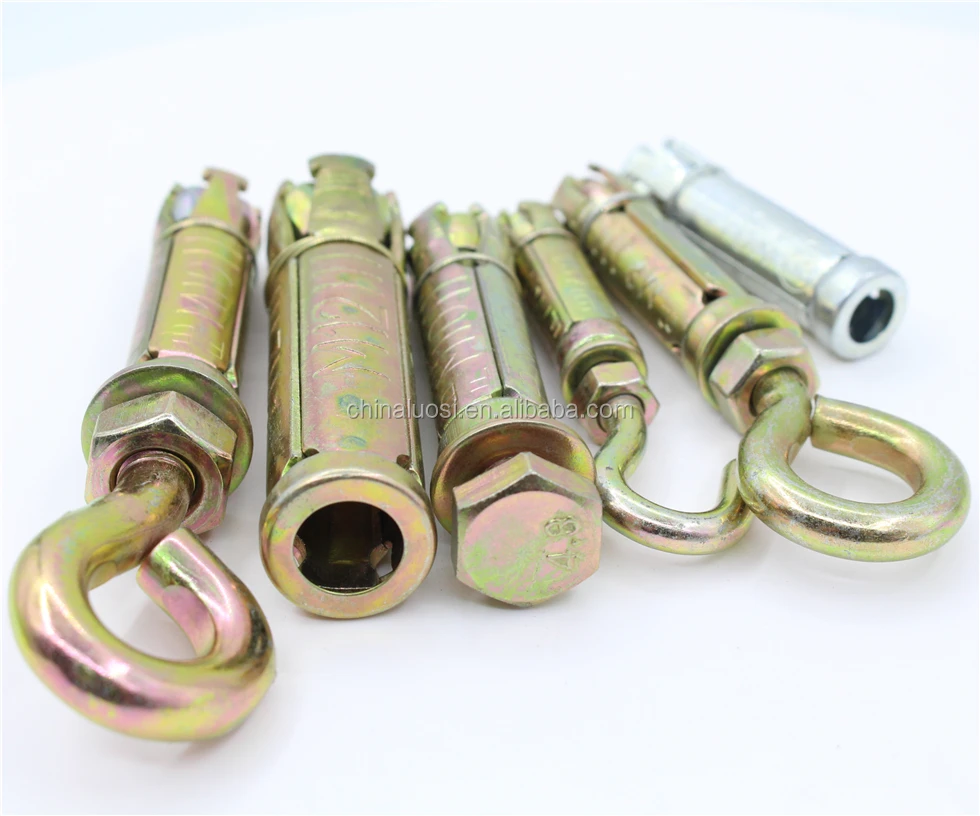

Available with Body, Open Eye Hook, Thread Rod, Closed Eye Hook
The 4 pc Heavy Duty Shield Anchor is the most popular torque controlled Expanding Shield anchor, combining ease of installation with good load carrying capacity. It’s the ideal purpose anchor bolt, having higher degree of expansion than other types of anchor bolt and excellent tolerance to variations in hole size. The collapsible ferrule ensures positive clamping force is transmitted to the fixture. The expansion shield anchor bolt is available with Body, Open Eye Hook, Thread Rod, and And Closed Eye Hook.
anchor, all kinds of anchor, sleeve anchor, wedge anchor, drop in anchor, cut anchor, tire wire anchor, metal frame anchor, hollow wall anchor, spirancë, Anker,kol çapa,neo,kotwica,ancre,ankkuri,ancla,inkaras,ankeris,kotva,ancaire,ancora,ankare,angor
Technical data
Anchor Size
Drill Dia.
Kgs/1000pcs
Qty. per box
M6×40
10
12
100
M8×50
14
23
50
M10×60
16
37
50
M12×80
20
72
25
M16×105
25
133
10
M20×130
32
251
10
M24×150
35
385
5
Installation
1.Drill
2. Clean the hole
3. Anchor objects aligned holes, insert the anchor bolt
4. Rotating the nut clockwise
5. Do not stop until you cannot turn screw any more
Packaging & Shipping
White box (neutral packing) ---Craft paper carton---Free fumigation wood pallet or plywood pallet. We could also make packing as customer’s requirement.
