Glass mosaic production machine

Product Overview

Description

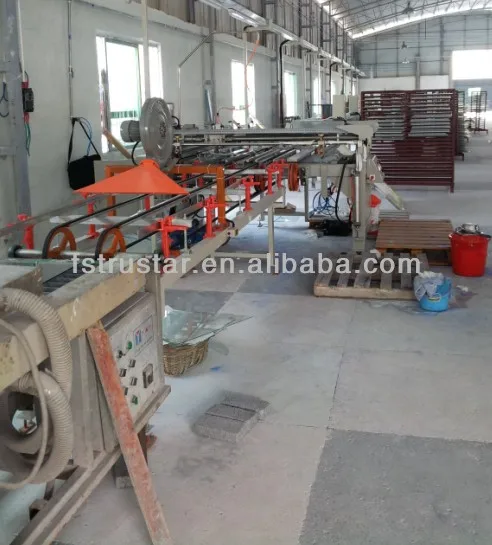

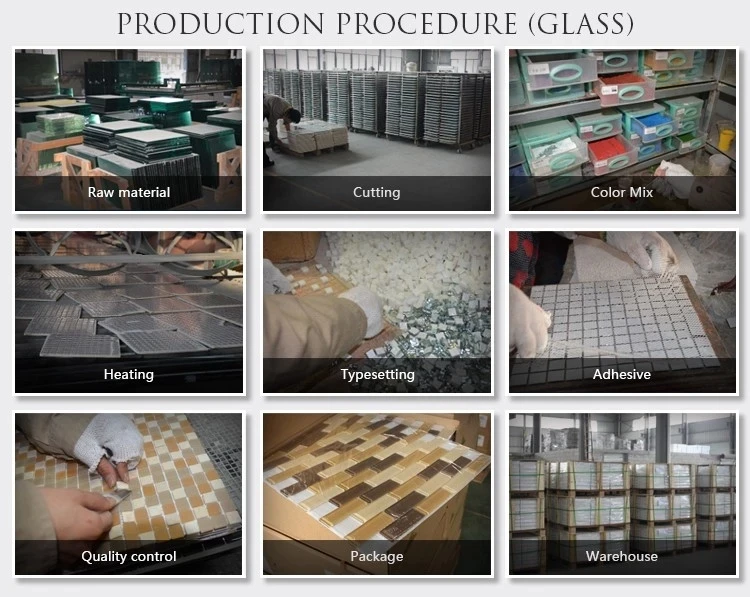

Glass mosaic production line step as followed:

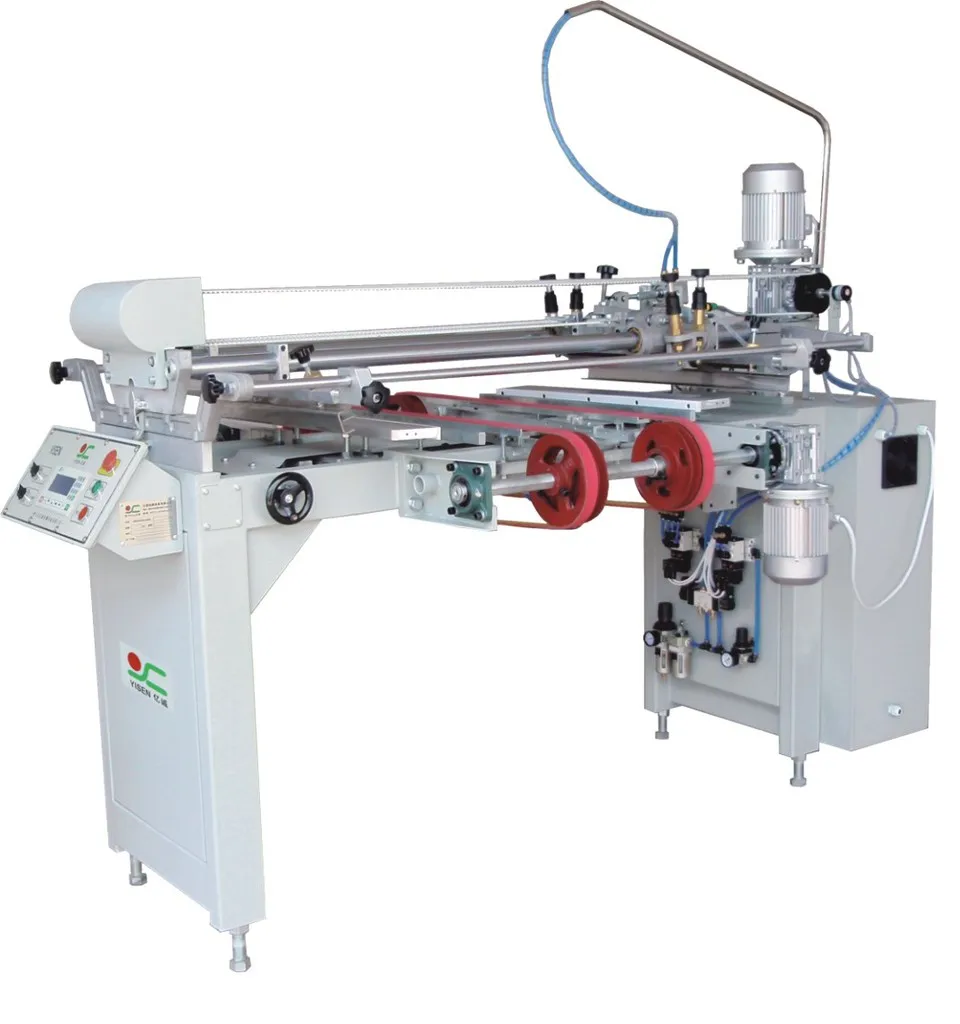

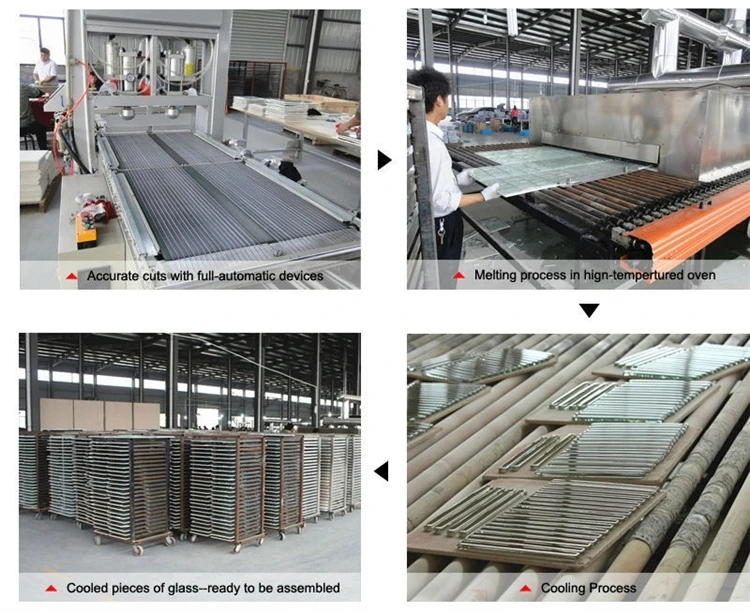

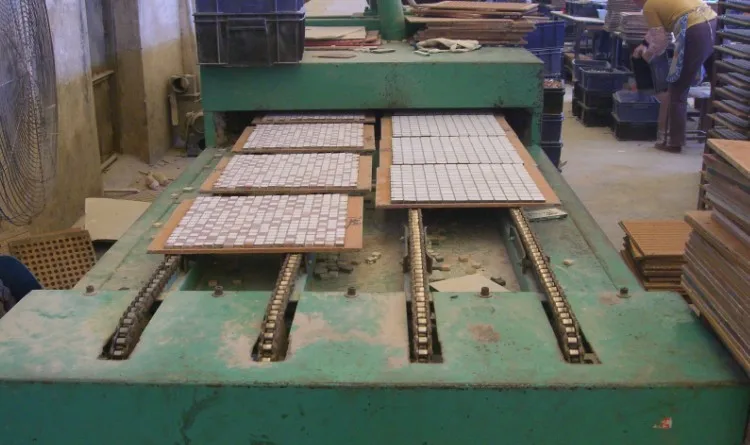

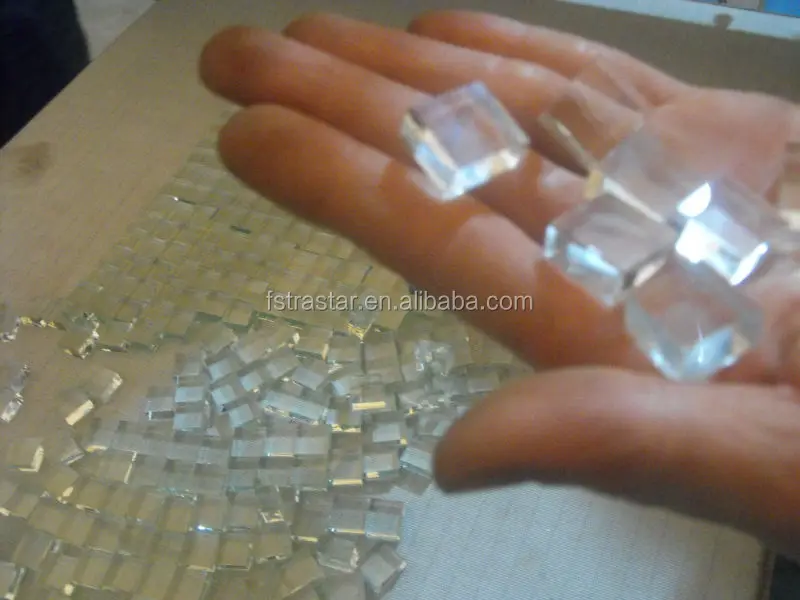

Glass mosaic washing&cleaing process---drying proces→ mosaic color pigments printing- auto drying- white back coating printing- drying completely again---glass mosaic chips cutting---firing glass mosaic in furnace---mesh&glue mounting--drying- packing the glass mosaic in cartons.  then cut the glass sheet into small glass chips.   these are the general steps.

More details,please feel be free to contact us. we will introduce every part for you in details.









Glass mosaic tile production kiln main parameters

3.1,Inner glass mosaic firing length within the kiln : 24000×1150×1150 (L×W×H)mm

3.2,Designing temperature: 900°C

3.3,Working temperature: 780°C(Adjustable)

3.4 Precision for temperature controlling : ≤±1°C;

4.5 Temperature difference in the furnace:   ≤±5°C

3.7,Temperature Control group numbers:   4 temperature control area, 5 pcs temperature control instruments

3.8,Total out size:   28000×2400×1150(L×W×H)mm(including input area 1m, output area 3m),output part installing about 300pcs of cooling fans to make the mosaics cool soon.

3.9,working speed:   Frequency regulation. Speed is adjustable

3.10 Speed range: 200~700mm/min ,

3.11 Heating type: electronic

3.12 heating power: 120 KW

3.13 temperature keeping power: 80 KW

3.14 heating length: 9000mm

3.15 Lining material:Mullite poly light specific lining

3.16 heat insulating material:  Light standard brick and 1300C fiber cotton

3.17 Control cabinet : 1 set to control the power and pressure



3.18 Furnace body structure: 8 sections(24m) in total,The outer steel welding heat preservation brick and cotton fiber insulation

3.19 thermocouple:   K semicolon

3.20 heating element: resistance wire.

3.21 Delivering method:Mechanical gear transmission





More details,please do not hesitate to contact us. thanks.
