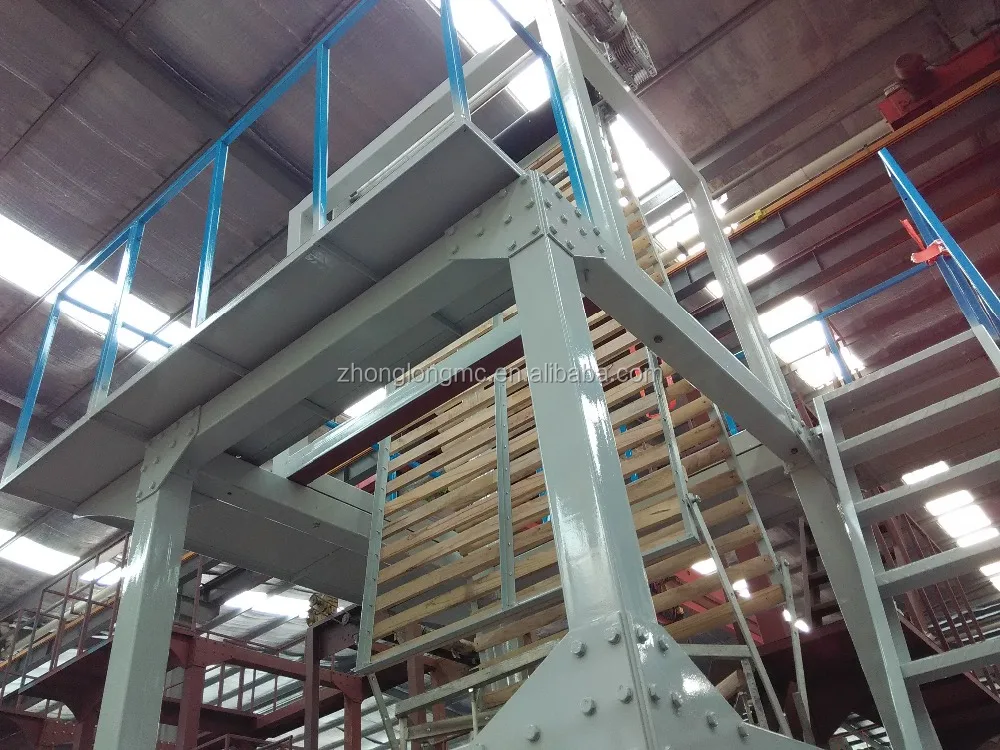

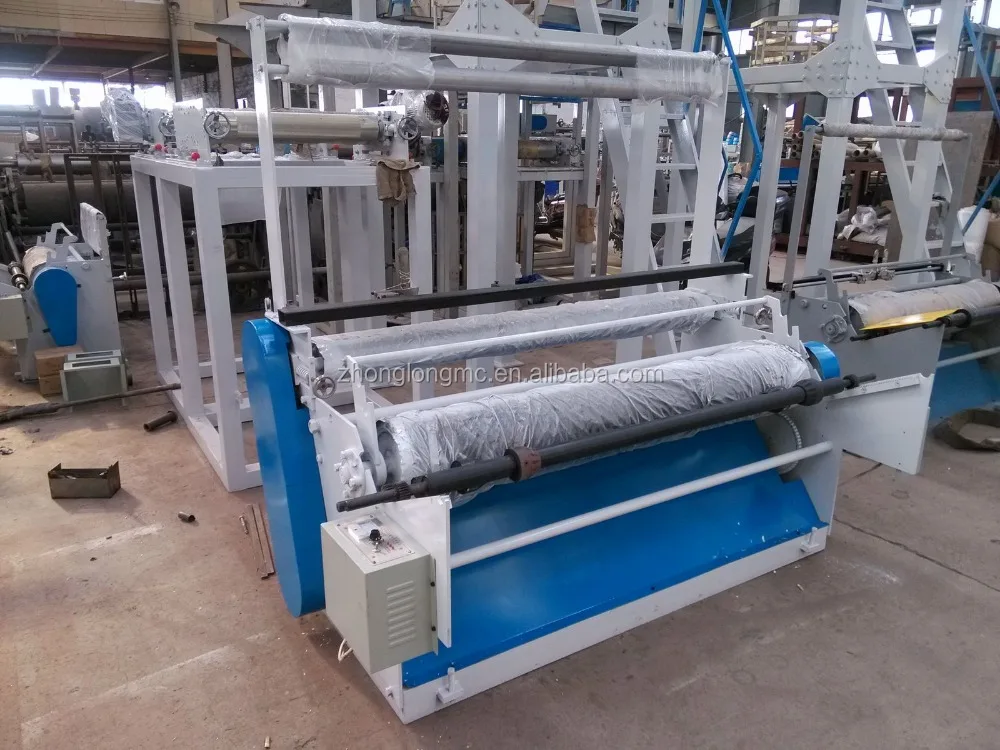

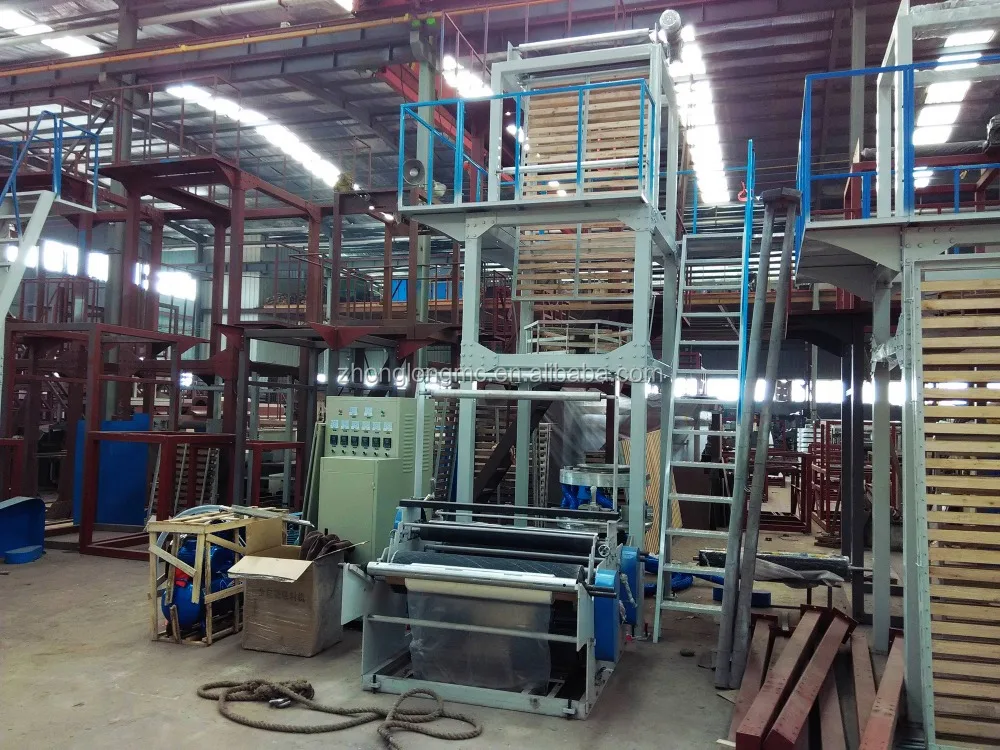

Ghana best sale lots reference film extruder, film blowing machine

Product Overview

Description

USAGE
It is the plastic film blowing machine for blowing PE(HDPE, LDPE, LLDPE), film; etc.
Which kinds of film are widely used for packing liquid, industrial products, garments and textile; for making plastic bags, like T-shirt bag, flat bags, garbage bags etc.



CHARACTERISTIC

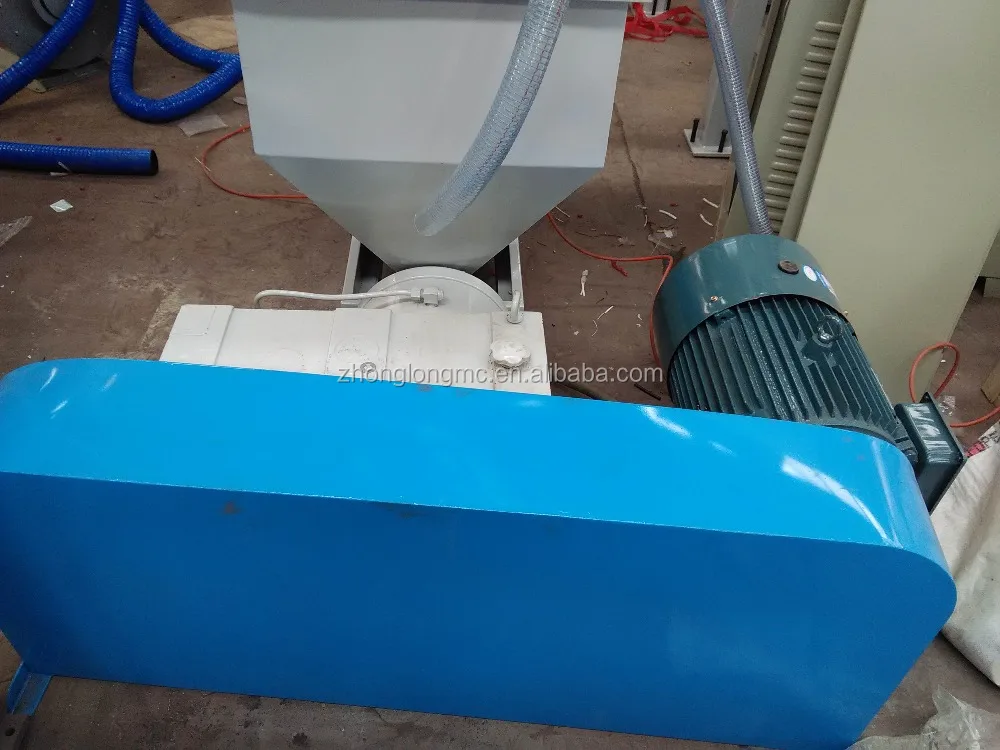

1. Frequency inverters control main motor and traction motor.
2. Material of screw and barrel: 38CrMoAl after nitrogen treatment, Supplied from Zhoushan city.
3. Gear box: HARD teeth gear surface, casting alloy piston, high precise grinding.
4. Die material: steel No.45 material, hard chrome- plating
5. Double digital display temperature controller in the die head.
6. Machine passed CE certification, and our factory passed ISO certification, quality guaranteed.



PARAMETER

Model	SJ-50	SJ-55	SJ-60	SJ-65	SJ-75	SJ-100
Max. Folding Width of film	600mm	800mm	1000mm	1200mm	1500mm	2000mm
Main Output	35kg	35-50kg	55-65kg	55-70kg	70-80kg	200-220kg
Main motor power	7.5-11kw	11-15kw	15-18.5kw	18.5-22kw	30-37kw	55kw
Screw Diameter	50mm	55mm	60mm	65mm	75mm	100mm
L/D ratio of screw	28:1	28:1	28:1	28:1	28:1	28:1
Speed of screw	10-100r/min	10-100r/min	10-100r/min	10-100r/min	10-100r/min	10-100r/min
Film thickness	0.01-0.10mm	0.01-0.10mm	0.01-0.10mm	0.01-0.10mm	0.01-0.10mm	0.01-0.10mm
Die head	60-120mm	100-170mm	100-170mm	120-220mm	150-300mm	500mm
Weight of machine	2000kg	2500kg	3600kg	4200kg	6000kg	7500kg
Overall Dimensions[L*W*H]	4.5*1.8*3.5m	5.5*2.0*3.8m	6.0*2.2*4.2m	6.0*2.4*4.3m	7.0*2.7*5.8m	8.0*3.2*8.2m
