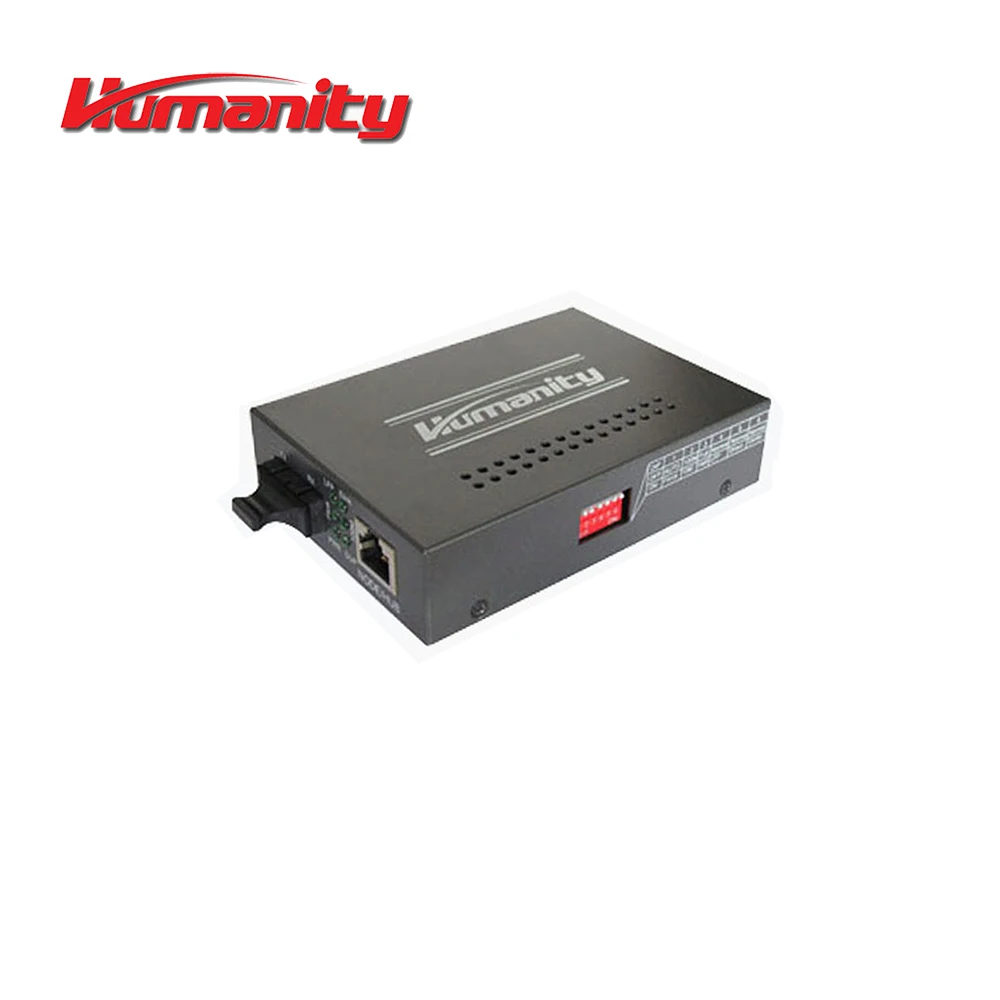

Humanity 10/100M Ethernet fiber optic transceiver realizes Ethernet transmission over fiber. This device is applied in many places where need long distance transmission.
Main Feature
Comply with standards of IEEE802.3, IEEE 802.3u.
Comply with protocol of IEEE 802.1Q VLAN TAG, Spanning Tree etc.
LED indicators for easy installation and maintenance
Pass RFC2544, RFC2889 test.
Rate, LFP(Link Fault Pass-through) configurable by DIP switch
Technical Parameters
Ethernet interface
One Ethernet port
Connector: RJ45
Auto-adapt full/half duplex
Auto-adapt 10/100M
Both MDI/MDIX available
Optical interface
Connector: SC default, SC/FC/LC option
Optical port: 155M
Default: Dual fiber, single mode,25km, 1310nm
Optical module is customized according to different requirement.

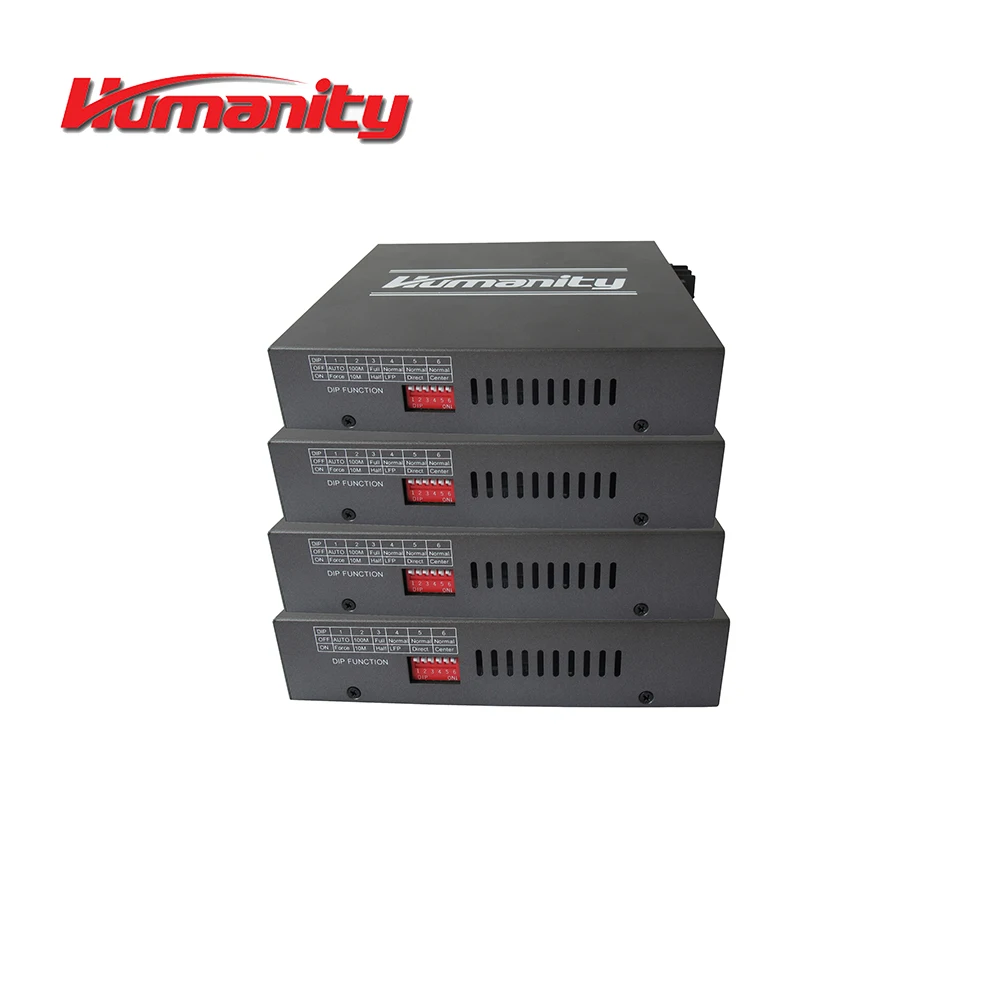

DIP switch
Used to configure speed, full/half duplex,LFP etc.
Indicators
PWR, FLINK, ELINK,100M, DUP, LFP
Environment
Working temperature: 0°C~70°C
Storage temperature: -40°C~85°C
Relative humidity: <90%, non-condensing
Power: AC or DC power

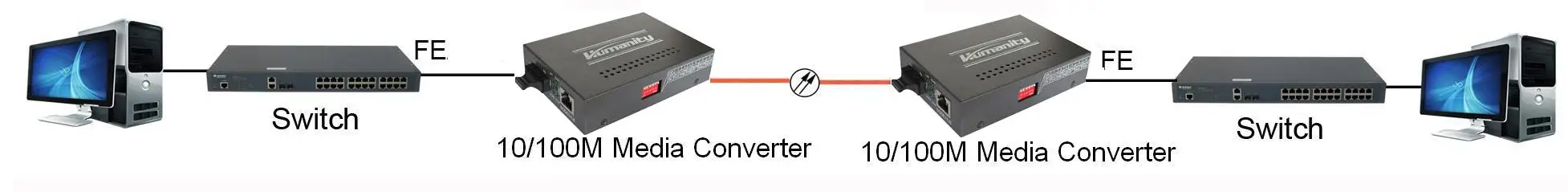

Application Diagram
Order Information
P/N
Description
HM-T100BS
10/100M Media Converter, SC/FC option, AC or DC external power supply
HM-T100BSLC
10/100M Media Converter, SFP/LC, AC or DC external power supply
HM-T100NS
10/100M Media Converter, SC/FC option, AC or DC internal power supply
HM-T100NSLC
10/100M Media Converter, SFP/LC, AC or DC internal power supply
