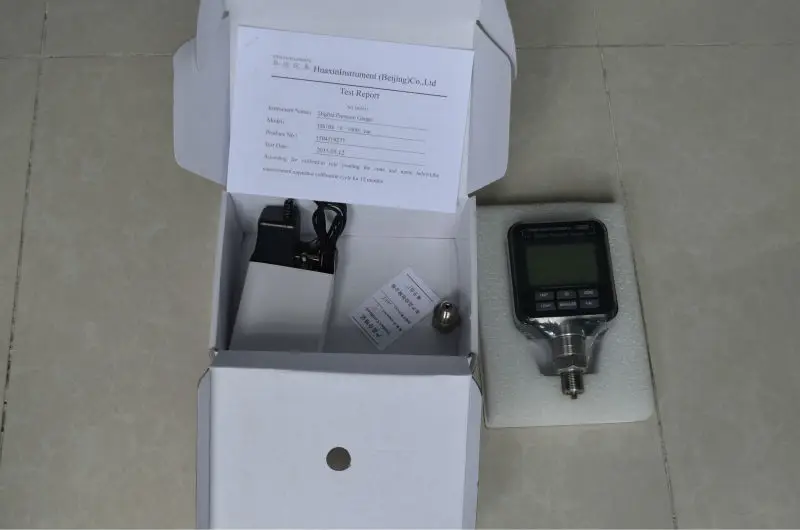

HS602 electronic manometer with accuracy 0.05

Product Overview

Description

 Intelligent pressure calibrator  --Hs602





Precision digital pressure gauge (Low Power Consumption) adopted micropower components and its unique software processing technology.

• Adopting the once-off Li-ion battery or dry battery powered.


• it could work 24 hrs continuously for 2 years.


• It passed the high and lower temperature aging, temperature compensation before the delivery which assured the accuracy .


• used for calibrating the Precision Pressure Gauge, General Pressure Gauge .


• used on-site

Technical Specifications

Pressure range	(0-1200)bar
Accuracy	0.05%F.S
Temperature compensation range	(0~50)°C
9 Engineering units	MPa, Pa, psi, kgf, bar, mbar, mmH2O, mmHg, kPa
Connection	RS232
Dimensions	130mm×94mm×40mm
Display	58mm×26mm
Weight	0.75kg



Features

•  High Accuracy, Low Power Consumption, Small


•  6 Digit big LCD


•  Various Pressure Units selectable


•  Zero Point, Full Scale calibration function


•  Adopt the special software treatment technology, unnecessary to preheat


•  RS232 Communication port, which could communicate with the computer conveniently.


• Temperature compensating range: (0~50)°C


• Working environment temperature(0-50) °C  Humidity ≤85%


• With the EEPROM NVM, It has the power off data losing protection function


• High intelligentization, Number compensation, Number Communication and Number calibration.
