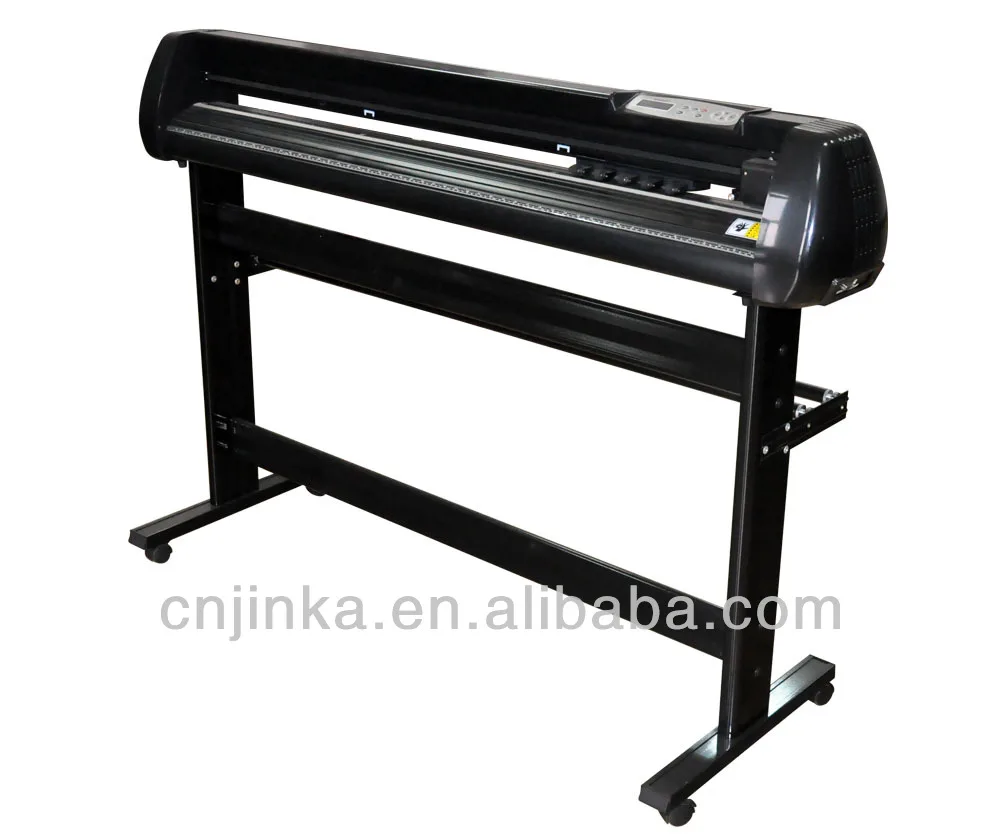

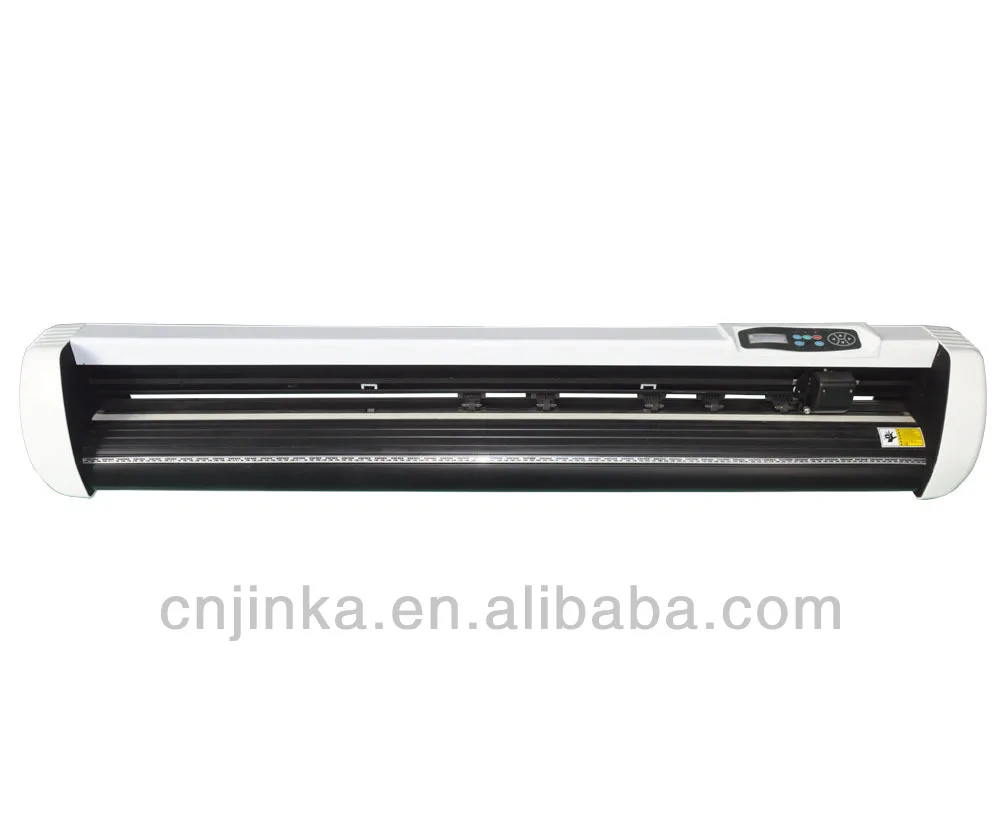

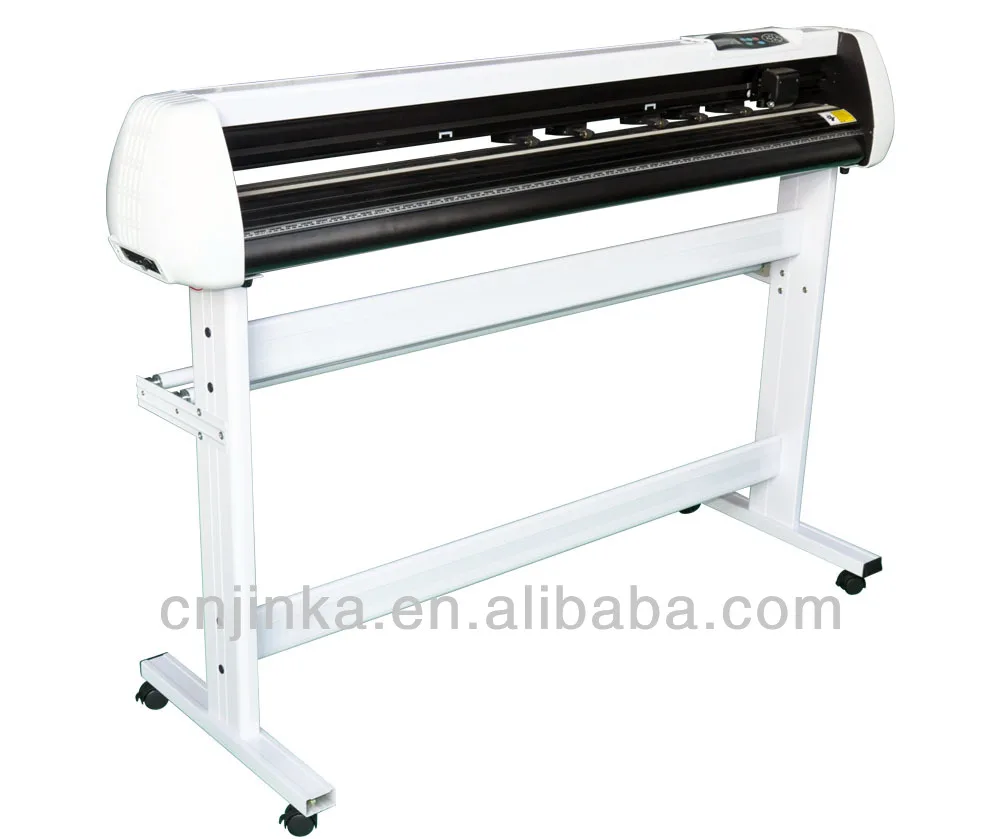

JINKA JK1351 cutting plotter(Luxurious type)
- Category: Office Equipment >>>
- Supplier: Hefei Kaxing Digital Control Equipment Co. Ltd. [Anhui China]Hefei
Share on (1820542598):
Product Overview
Description
Product Description
| economic type | JK-361 | JK721 | JK-871 | JK-1351 | JK-1101 |
|
Practical type |
JK-361 |
JK721 |
JK-871 |
JK-1351 |
JK-1101 |
| luxurious type | / | JK721 | JK-871 | JK-1351 | JK-1101 |
|
stand |
no |
yes |
yes |
yes |
yes |
|
max.paper width |
360mm |
720mm |
870mm |
1350mm |
1100mm |
|
max.plotting width |
270mm |
630mm |
780mm |
1260mm |
1000mm |
|
memory |
1-4M |
1-4M |
1-4M |
1-4M |
1-4M |
| net weight/gross weight | 8/12kg | 11/20kg | 12/24kg | 14/27kg | 17/32kg |
| packing size | 66*38*38cm | 101*38*44mm | 116*38*44mm | 164*38*44mm | 139*38*44 |
| interface | serial port&USBport(optional) | serial port&USBport(optional) | serial port&USBport(optional) | serial port&USBport(optional) | serial port&USBport(optional) |
|
power supply |
switching power supply |
switching power supply |
switching power supply |
switching power supply |
switching power supply |
|
max.plotting speed |
economic type:500g practical and luxurious type:800mm/s |
economic type:500g practical and luxurious type:800mm/s |
economic type:500g practical and luxurious type:800mm/s |
economic type:500g practical and luxurious type:800mm/s |
economic type:500g practical and luxurious type:800mm/s |
| max.cutting force | economic type:400g practical and luxurious type:500g | economic type:400g practical and luxurious type:500g | economic type:400g practical and luxurious type:500g | economic type:400g practical and luxurious type:500g | economic type:400g practical and luxurious type:500g |
|
carriage |
economical type:normal carriage practical type:double cutter position carrage luxurious type:metal carriage |
the same as the left |
the same as the left |
the same as the left |
the same as the left |
|
mechanical resolution |
0.0254mm |
0.0254mm |
0.0254mm |
0.0254mm |
0.0254mm |
|
language format |
DMPL/HPGL |
DMPL/HPGL |
DMPL/HPGL |
DMPL/HPGL |
DMPL/HPGL |
|
cutting tool |
imported hardness alloy steel blade |
imported hardness alloy steel blade |
imported hardness alloy steel blade |
imported hardness alloy steel blade |
imported hardness alloy steel blade |
|
power supply |
AC90V-AC240V |
AC90V-AC240V |
AC90V-AC240V |
AC90V-AC240V |
AC90V-AC240V |
|
operation environment |
temperature:5°c-35°c relative humidity:(305-50%)without condensation |
temperature:5°c-35°c relative humidity:(305-50%)without condensation |
the same as the left |
the same as the left |
the same as the left |
|
colors |
white,grey,black |
white,grey,black |
white,grey,black |
white,grey,black |
white,grey,black |
