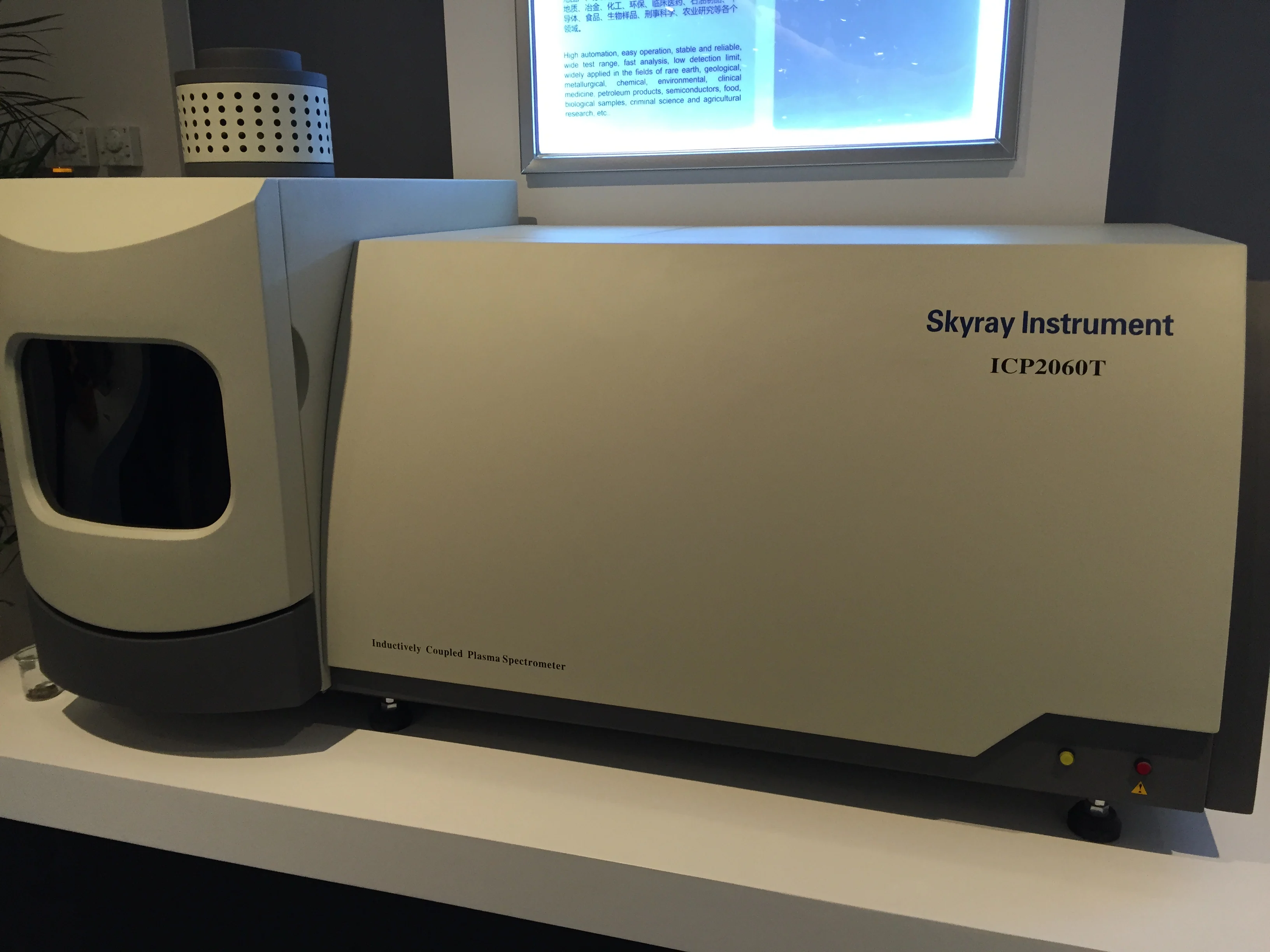

ICP AES laboratory equipment for minerals alloy measurement

Product Overview

Description

Technical Specifications:

Frequency	27.12MHz
Frequency stability	<0.05%
Couple method	Auto match
Output power	800W ~1600W
Wavelength range	195~500 nm for 3600 line grating195~800 nm for 2400 line grating
Focal length	1000mm
Output power stability	≤0.05%
Signal acquisition	VF conversion

Limits of detection (LOD, μg/L) for typical elements:1ppb~10ppb:

Element	La	Ce	Pr	Nd	Sm	Eu	Gd	Tb
λ (nm)	408.672	413.765	414.311	401.225	360.946	381.967	342.247	350.917
LOD	<3.0	<5.0	<5.0	<5.0	< 10.0	< 1.0	<10.0	< 3.0

Element	Dy	Ho	Er	Tm	Yb	Lu	Y	Sc
λ (nm)	353.170	345.600	337.271	313.126	369.419	261.541	371.030	335.373
LOD	<3.0	<3.0	<3.0	<3.0	<1.0	<3.0	<1.0	<1.0

Element	Ta	Nb	Mn	Mg	B	Zn	Co	Si
λ (nm)	226.230	313.340	257.610	279.553	249.773	13.856	228.616	251.611
LOD	<5.0	<5.0	<3.0	<1.0	<10.0	<3.0	<3.0	<10.0

Element	Ni	Cd	Fe	Ca	Mo	V	Be	Ti
λ (nm)	232.003	226.502	239.562	393.366	281.615	310.230	313.041	334.941
LOD	<5.0	<3.0	<3.0	<1.0	<5.0	<5.0	<1.0	<3.0

Element	Cu	Cr	Al	Zr	Ag	Sr	Au	Pt
λ (nm)	324.754	267.716	396.152	343.823	328.068	407.771	242.795	265.945
LOD	<3.0	<5.0	<5.0	<5.0	<3.0	<1.0	<5.0	<5.0



Element	Sn	Te	Ta	Th	Tl	Re	Ge
λ (nm)	242.949	214.281	226.230	283.730	276.787	227.525	209.426
LOD	≤20	≤10	≤5.0	≤10	≤30	≤5	≤15

Element	As	Sb	Bi	Hg	Pb	Ga	Se
λ (nm)	228.812	206.833	223.061	253.652	220.353	294.364	203.985
LOD	≤15	≤15	≤10	≤15	≤15	≤10	≤10





Application fields:

 1) Minerals and rear earth

2)Metallurgical industry: analysis of impurity elements influencing the quality of metal materials

Petrochemical: measurements of more than 30 elements in crude oil
