ER17505 Li/SOCl2 battery with axial leads A size replace LS17500,XL 100F, SB A01,ER17500
- Category: >>>
- Supplier: Shenzhen Magnate New Energy LimitedShenzhen Limited
Share on (1821195601):
Product Overview
Description
Product Show
Product Description

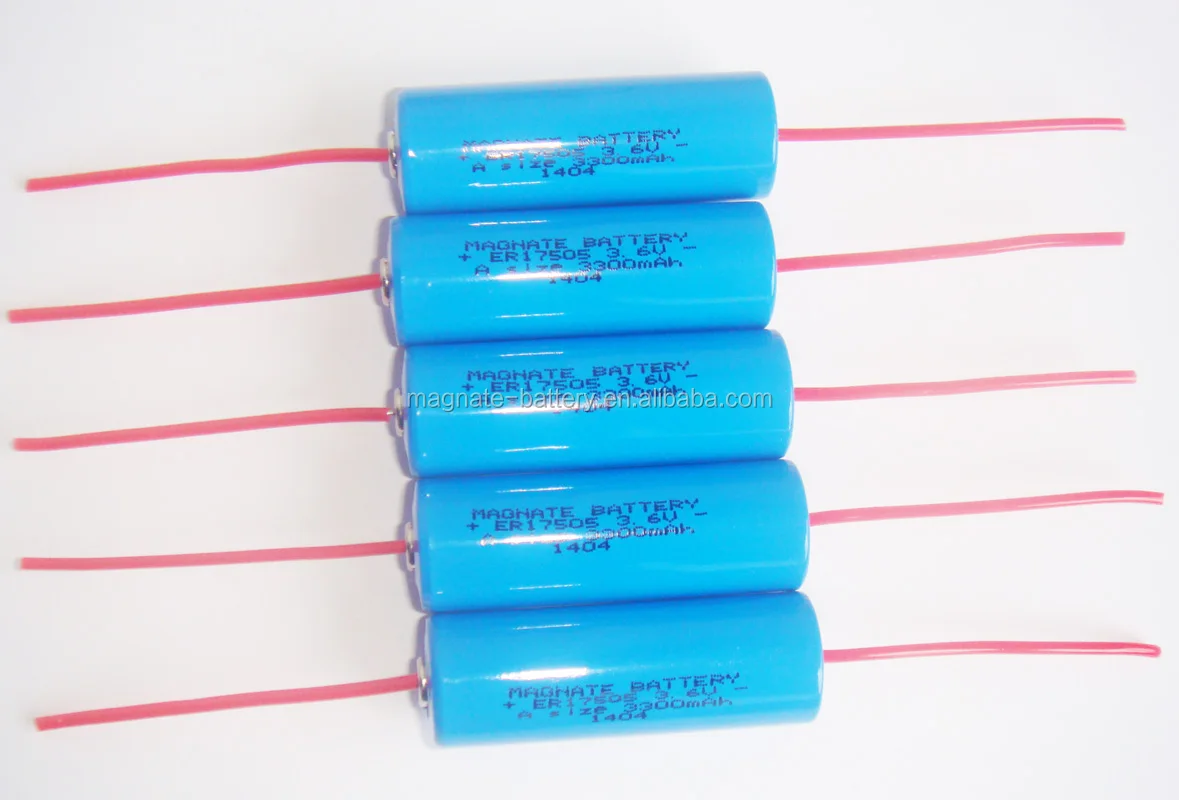

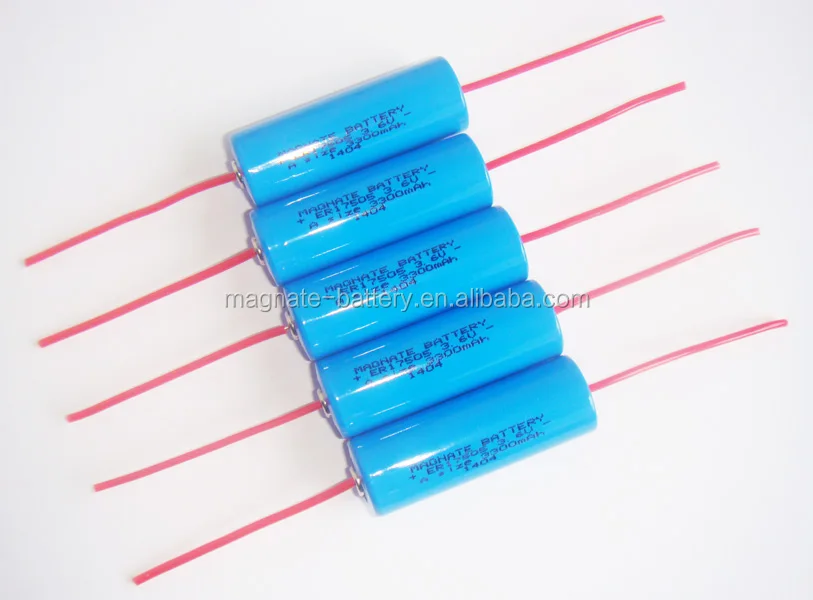

ER17505 Li/SOCl2 battery with axial leads A size replace LS17500,XL-100F, SB-A01,ER17500
1. ER17505 lithium battery
2. Low Self-Discharge Rate
3. Wide Working Temperature Range -55~+85°C
4. UL, UN38.3, CE, ROHS, ISO9000
Specifications:
| Model No. | Size | Max Dimensions (mm) | Weight(g) | Nominal Voltage (v) | Nominal Capacity (mAh) | Max Continuous Current (mA) | Max Pulse Current (mA) | Operating Temperature (°C) | End Voltage (v) |
ER17505 |
A |
17.0X50.5 |
24 |
3.6 |
3300 |
120 |
250 |
-55~+85 |
2.0 |
Main applications:
1. Utility meter (water, electricity, gas, heat meter)
2. Automatic meter reading
3. Alarm or security system (smoke alarm detector)
4. GPS tracking systems(data logger, dog collar, PIR sensor)
5. Real time clock
6. Temperature Monitors
7. Automotive electronics
8. Professional electronics
Model List
| Model | Size | Norminal Voltage (V) | Norminal Capacity (mAh) |
| ER14250 | 1/2AA | 3.6 | 1200 |
| ER14250M | 1/2AA | 3.6 | 800 |
| ER14505 | AA | 3.6 | 2700 |
| ER14505M | AA | 3.6 | 2200 |
| ER14335 | 2/3AA | 3.6 | 1650 |
| ER14335M | 2/3AA | 3.6 | 1350 |
| ER17505 | A | 3.6 | 3300 |
| ER17505M | A | 3.6 | 2800 |
| ER17335 | 2/3A | 3.6 | 1900 |
| ER17335M | 2/3A | 3.6 | 1700 |
| ER18505 | - | 3.6 | 3800 |
| ER18505M | - | 3.6 | 3500 |
| ER26500 | C | 3.6 | 9000 |
| ER26500M | C | 3.6 | 6500 |
| ER34615 | D | 3.6 | 19000 |
| ER34615M | D | 3.6 | 14000 |
| ER251020/ER261020 | CC | 3.6 | 15000 |
| ER341245 | DD | 3.6 | 38000 |
| ER9V/CP9V/CR9V | - | 9 | 1200 |
| CR14250 | 1/2AA | 3.0 | 650 |
| CR123A/CR17335 | 2/3A | 3.0 | 1350 |
| CR17450 | AG | 3.0 | 2200 |
| CP505050 | - | 3.0 | 3000 |
