1MW MTU Gas Generator Power Plant With CE/ISO Approved Gas Generator Manufacturer

Product Overview

Description

1MW MTU Gas Generator Power Plant With CE/ISO Approved Gas Generator Manufacturer









Camda 500KW Farm Waste Biomass Cogeneration Power Plant CE/ISO Approved Gas Generator Manufacturer,can use natural gas & biogas& lpg& coal gas, economical, environmentally friendly, and can be used for gas power generation on restaurant rubbish, breeding field, stockfarm,and landfill, etc, and has much high quality & performance ratio.



At present with outstanding cost performance, original American products quality, but nearly the same price with domestic products, it is quite popular during our customers, especially in United Kingdom, Russia, Bangladesh, Colombia, Iran and other countries.



When we exhibited it at October 2009 Iran International Electric Power Exhibition China Import and Export Fair and at 2011 Middle East Electric Power Exhibition, many customers are interested in it and ordered this type on the spot.



Besides, when you attend the World Expo in Shanghai this time, you will find it being showed in Britain exibition hall.











Camda H Series Gas Generator Set Parameters
Model Item		KDGH30-G	KDGH50-G	KDGH80-G	KDGH120-G	KDGH200-G	KDGH300-G	KDGH500-G
Rated power	KW	30	50	80	120	200	300	500
	KVA	37.5	62	100	150	250	375	625
Rated Voltage (V)		400	400	400	400	400	400	400
Frequency (Hz)		50	50	50	50	50	50	50
Rated Current (A)		54.1	90.2	144.3	216.5	360.9	541.3	902.1
Voltage Stabilized Regulation		≤±1.5%	≤±1.5%	≤±1.5%	≤±1.5%	≤±1.5%	≤±1.5%	≤±1.5%
Voltage Instantaneous Regulation		≤±20%	≤±20%	≤±20%	≤±20%	≤±20%	≤±20%	≤±20%
Voltage Recovery Time (S)		≤1	≤1	≤1	≤1	≤1	≤1	≤1
Voltage Fluctuation Ratio		≤1%	≤1%	≤1%	≤1%	≤1%	≤1%	≤1%
Frequency Fluctuation Ratio		≤1%	≤1%	≤1%	≤1%	≤1%	≤1%	≤1%
Generator Insulation Class		H	H	H	H	H	H	H
Noise Level (Db)		≤95	≤95	≤98	≤98	≤100	≤100	≤102
Engine Model		HG4B	HG6B	HGN14	HGN14	HGNT14	HGK19	HGK38
Aspration		Natural	Natural	Natural	Natural	Turbocharged	Turbocharged	Turbocharged
		Inline						V type
		Four stroke, electronic-control spark plug ignition, water-cooling, premix proper ratio of air and gas before combustion
Cooling Mode		Radiator fan cooling for closed-type cooling mode, or heat exchanger water cooling for cogeneration unit
Cylinders		4	6	6	6	6	6	12
Bore X Stroke (mm)		102*120	102*120	140*152	140*152	140*152	159*159	159*159
Displacement (L)		3.92	5.88	14	14	14	18.9	37.8
Compression Ratio		11.5:1	11.5:1	11 : 1	11 : 1	11 : 1	11 : 1	11 : 1
Rated Power (Kw)		36	56	145	145	230	336	570
Rated Speed (r/Min)		1500
Fuel		Natural Gas / Biogas
Gas Consumption (MJ/Kw·h)		12	11.9	11.8	11.8	11.2	10.9	10.5
Idling Speed (r/Min)		700
Oil Recommended		API service grade CD or higher SAE 15W-40 CF4
Oil Consumption		≤1.0g/kW.h	≤1.0g/kW.h	≤1.0g/kW.h	≤1.0g/kW.h	≤1.0g/kW.h	≤1.0g/kW.h	≤0.5g/kW.h
Exhaust Temperature		≤ 680°C	≤ 680°C	≤ 650°C	≤ 650°C	≤ 600°C	≤ 600°C	≤ 550°C
Net Weight (Kg)		900	1100	2225	2525	2525	3380	6080
Dimension (Mm)		1850*750 *1500	2250*820 *1500	3000*1100 *1800	3150*1100 *1800	3150*1100 *1800	3470*1230 *2300	4400*2010 *2480

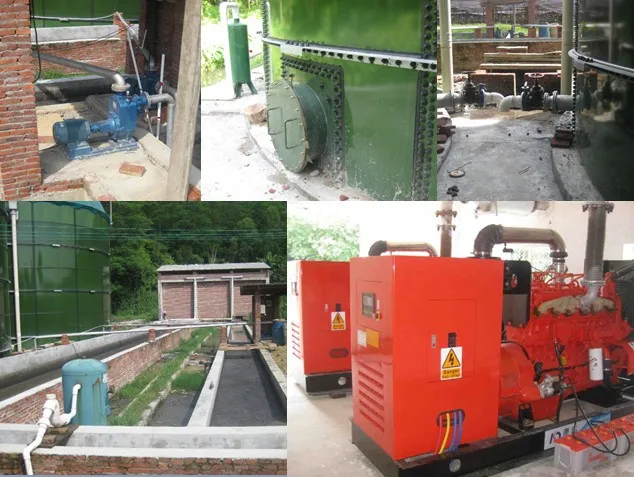

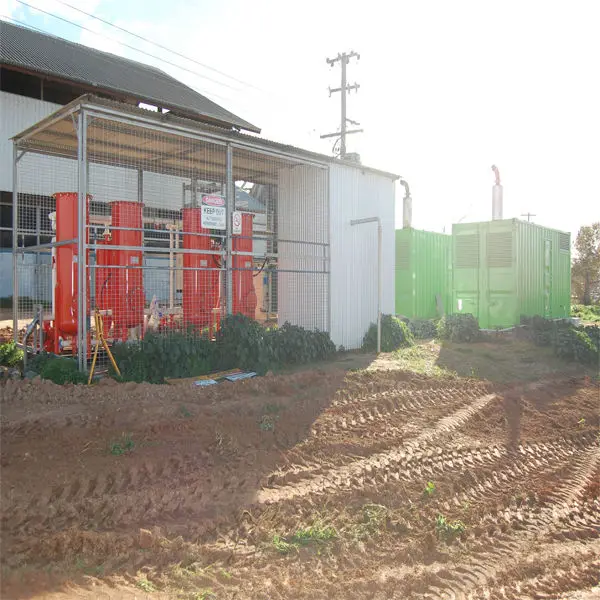

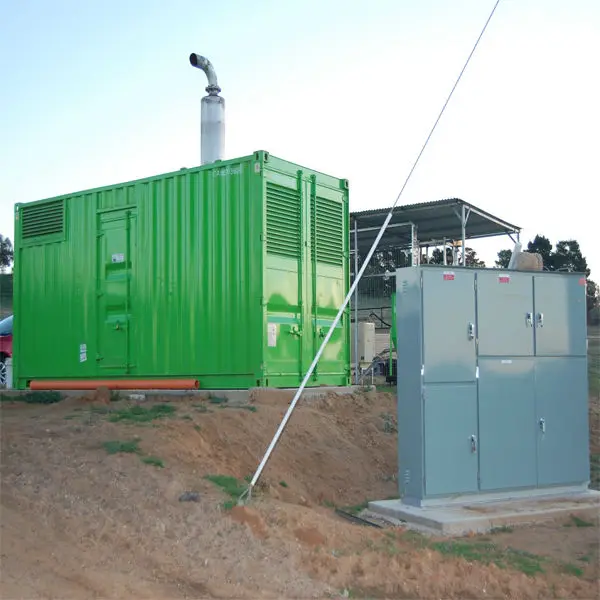

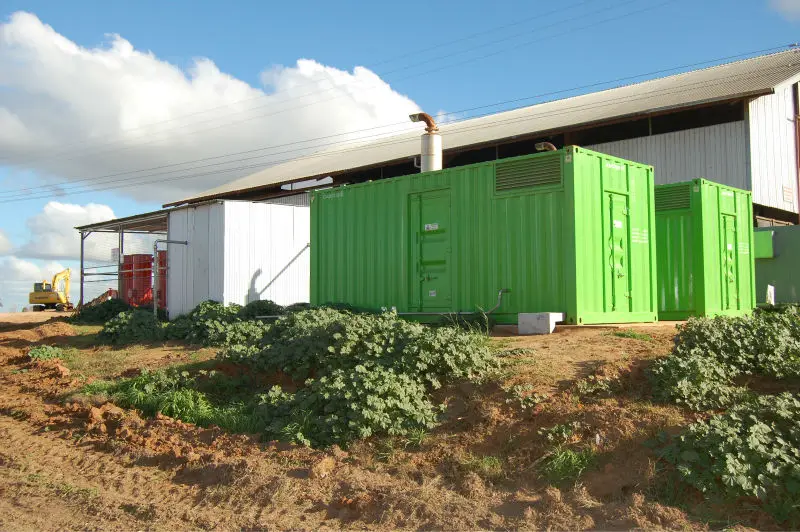

BIOGAS GENERATOR POWER PLAN PICTURES







BIOGAS GENERATOR POWER PLAN QUALITY CONTROL CERTIFICATES

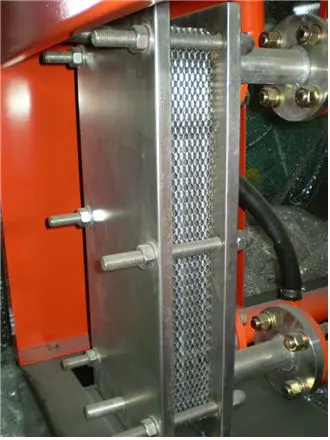

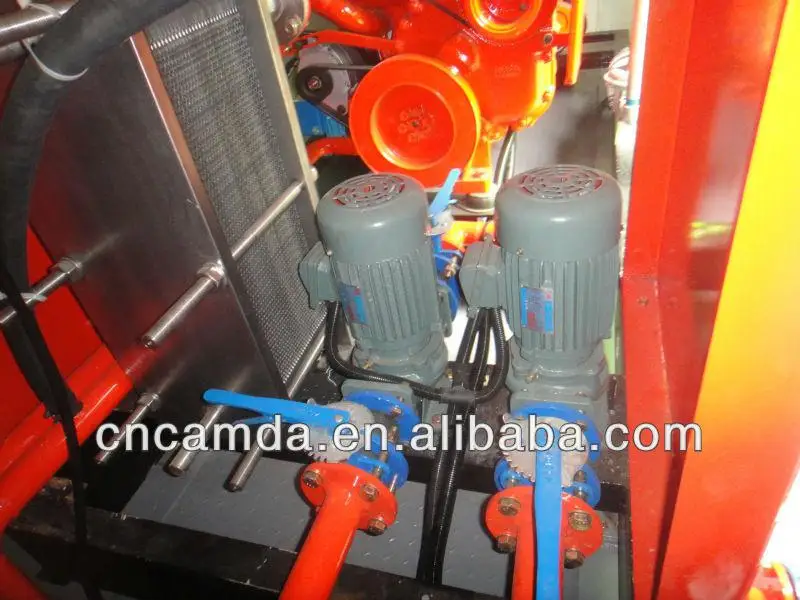

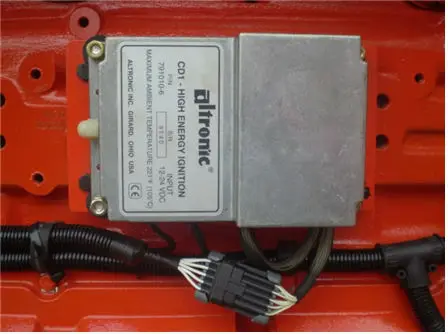

THE MAIN SPARE PARTS OF BIOGAS GENERATOR POWER PLAN EQUIPMENTS
