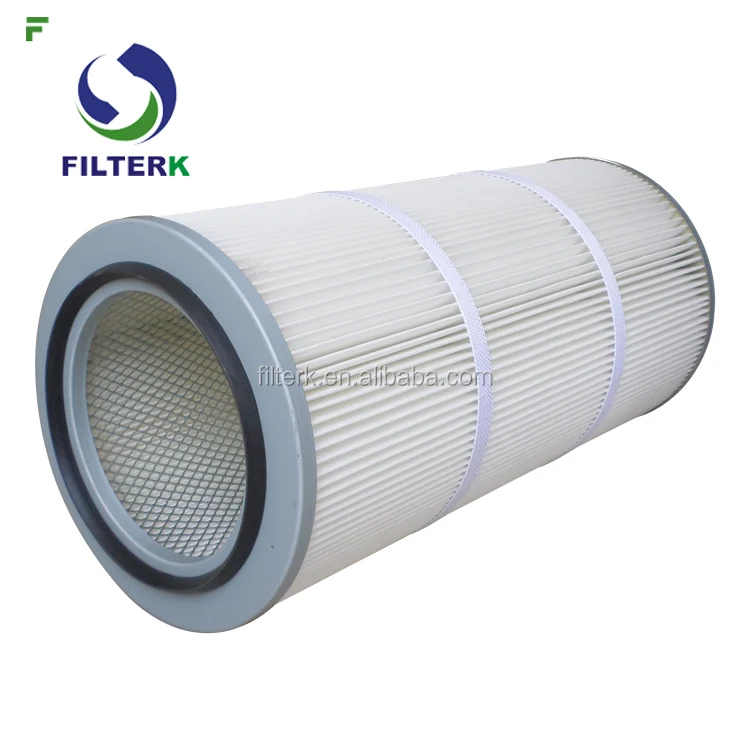

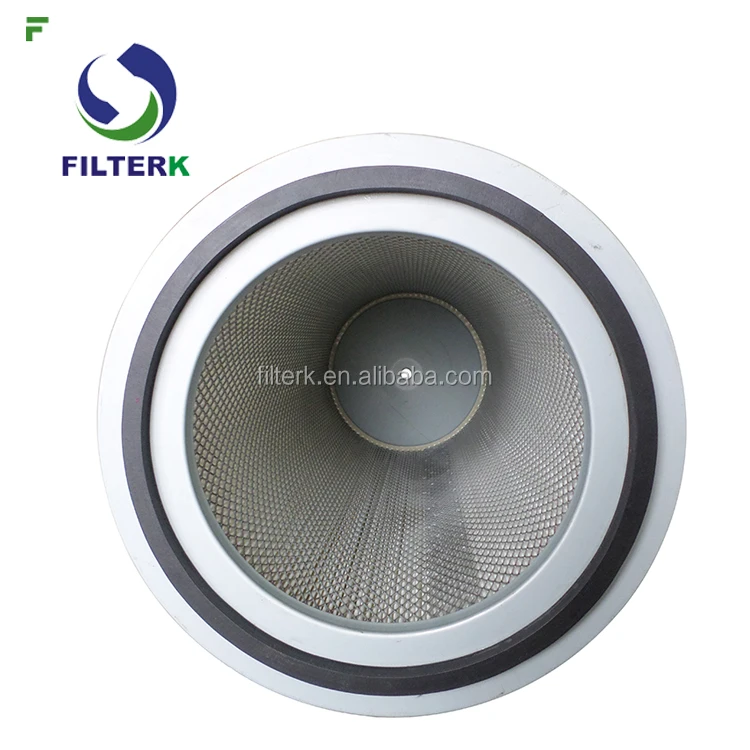

FILTERK Polyester Industrial Dust Collector Cylinder Filter Element

Product Overview

Description

FILTERK Polyester Industrial Dust Collector Cylinder Filter Element

Material of dust collector cylinder filter element:

Filter Media:

1)  Imported long fiber polyester filter media,fiber interwoven,evenly distributed.

2)  Filter material surface do waterproof and oil processing.

3)  Good abrasion resistance,and the capability of withstand airflow pulse inverse blow is better than traditional filter media.

4)  Smooth filter media surface,not sticky.

5)  Excellent chemical resistance.

6)  Good filter material stiffness,can be repeated washed.



Optional Filter Media:

1) Spunbonded polyester

2) Polyester +  Oil and water repellent

3) Polyester + PTFE Membrane (Coated by glue & Coated by heating)

4) Polyester + Anti-static (Aluminized antistatic & Polymer Antistatic )

5) Polyester + Flame retardant

6) Polyester + Dual anti-treatment (Anti-static+Flame retardant, Oil and water repellent+ Anti-static, PTFE Membrane+ Anti-static)

We will choose the most suitable filter media according to customers' requirement.



End Casp & Inner Core: Electro-galvanized to prevent corrosion. Stainless steel is also available.



Gasket: Professional sealing obturator elastic neoprene.



Features of dust collector cylinder filter element:

1)  Operating temperature ≤ 135 ° C.

2) Greatly increase the effective filtration area.

3) Ensure a low steady differential pressure, improve the circulation of air flow.

4) Small filter cartridge element, easy to install.

5) Especially suitable for large dust concentration industry.

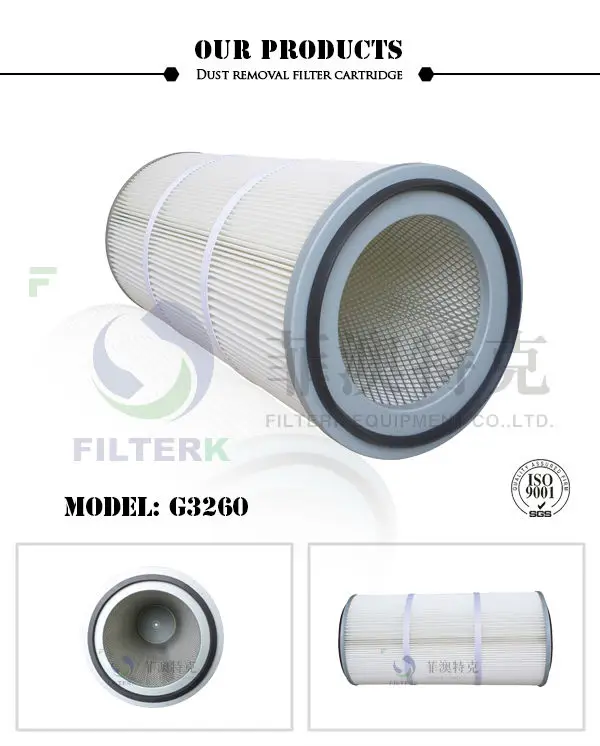

Part #	G3260
Structure	Cylindrical Filter Element
Dimension	(OD)324*(ID)213*(H)600 mm
Filter Material	Polyester
Efficiency	100% (Particles ≥5μm)
End Caps	Galvanized sheet
Inner Mesh	Galvanized diamond mesh
Gasket	Foam Rubber
Construction	Open/Closed with bolt hole
MOQ	NO MOQ . But advice full container to save cost. 20GP FCL: 382 sets 40GP FCL: 774 sets 40HQ FCL: 893 sets
Loading Port	Shanghai
Lead Time	Around 7 days for 20GP container
Payment	T/T ; West Union ; Paypal
Shipment	By sea to your nearest port By air to your nearest airport By express (DHL,UPS,FEDEX,TNT,EMS) to your door
Package	Carton
Max Capacity	Around 1000 pcs per week

FAQ:

1.Q:Are you a factory or trading company?

A:We are a factory



2.Q:Where is your factory located? How can I visit there?

A:Our factory is located in Zhangjiagang City, Jiangsu Province, China, about 1.5 hours from Shanghai and

40 minutes from Wuxi Dong station by car. All our clients, from home or abroad, are warmly welcome to visit us!



3.Q:How can I get some samples?

A: We are honored to offer you samples.



4.Q:How does your factory do regarding quality control?

A:Quality is priority. Filterk people always attach great importance to quality controlling from the very beginning

to the very end.  Our factory has gained ISO9001:2008 authentication.



We are your best choice!
