Звездочки и цепь

Product Overview

Description

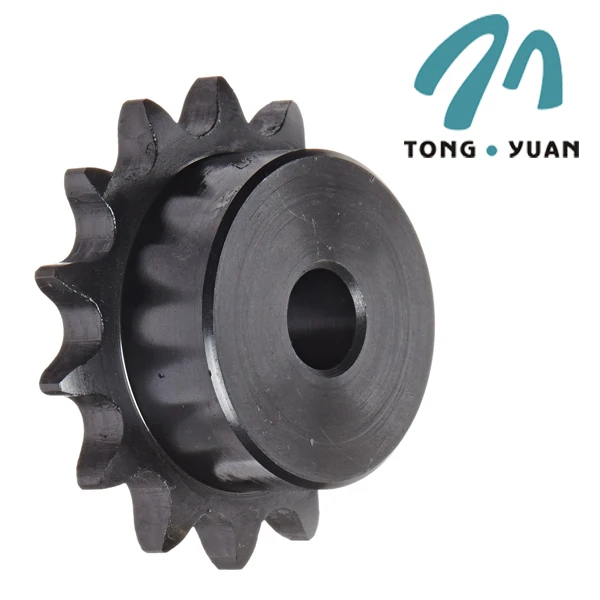

Sprockets and Chain

Product Features:

• For use with series 40 chain, 1/2" pitch for driver or driven sprocket applications
• Type B sprocket offers a stable and secure attachment to the shaft
• Shaft diameter size from 3/8" to 3/4" for a variety of applications
• Varying numbers of teeth, hub sizes, pitch diameters, and stock bore sizes offer application flexibility
• Strength and durability
•

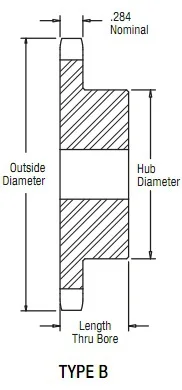

Type B sprockets have a hub extension on one side to provide stability, and allow for the use of full-depth keyways and standard setscrews to attach the sprocket. They can also accommodate a wide range of shafts.





ANSI standard:25/35/40/41/50/60/80/100/120/140/160/180/200/240

DIN standard: 05B/06B/08B/10B/12B/16B/20B/24B/28B/32B

Material:  Carbon Steel, Stainless Steel, Alloy Steel, Cast Iron, Aluminum

Surface Treatment:  Plain, Black Oxide, Zinc Plating, Painting

Process:  Forging, Hobbing, Precision machining, Surface treatment, Final strict inspection





Our Chain sprockets include
   a) Plate and Hub Sprocket
   b) Bored To Size Sprocket
   c) QD Bushed Sprocket
   d) Split Taper Bushed Sprocket
   e) Welding Sprocket
   f) Idler Sprocket
  g) Conveyor Sprocket
  h) Made to order designs









TY supplies (pulleys)sheaves, roller chain sprockets, shaft collars and couplings, weld on hubs, taper bushings and other power transmission products. The products meet the standards of the ISO, DIN, ANSI, AGMA, SAE and JIS for quality assurance.
