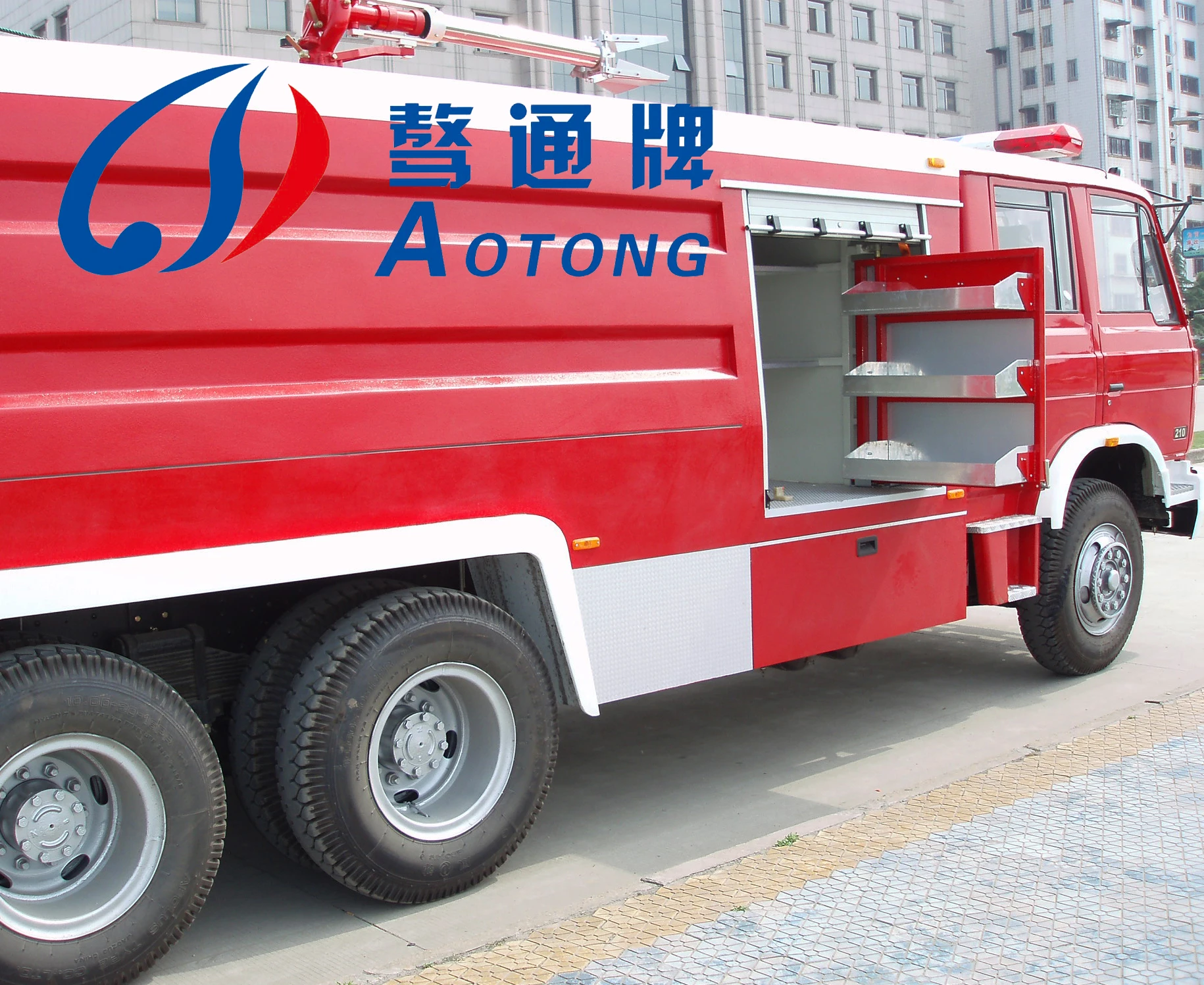

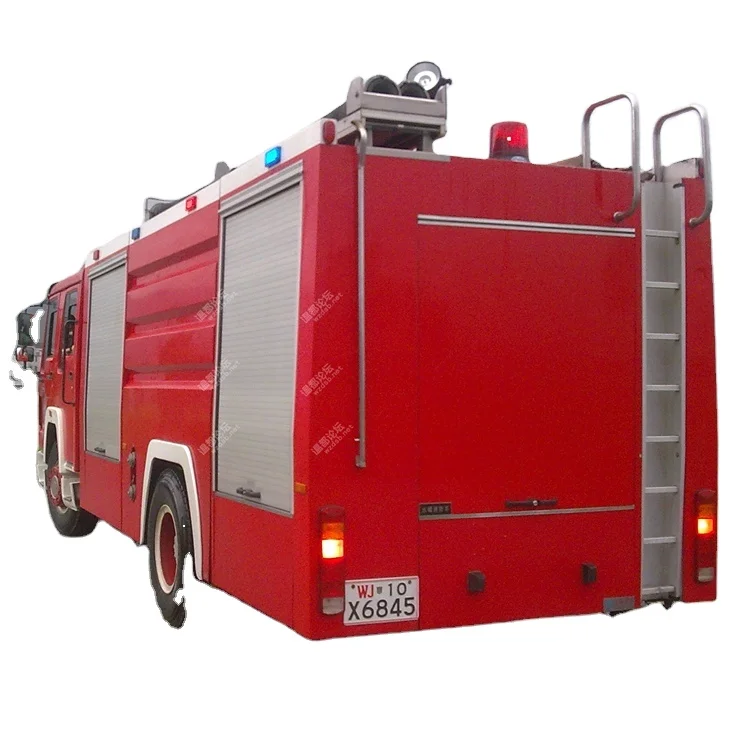

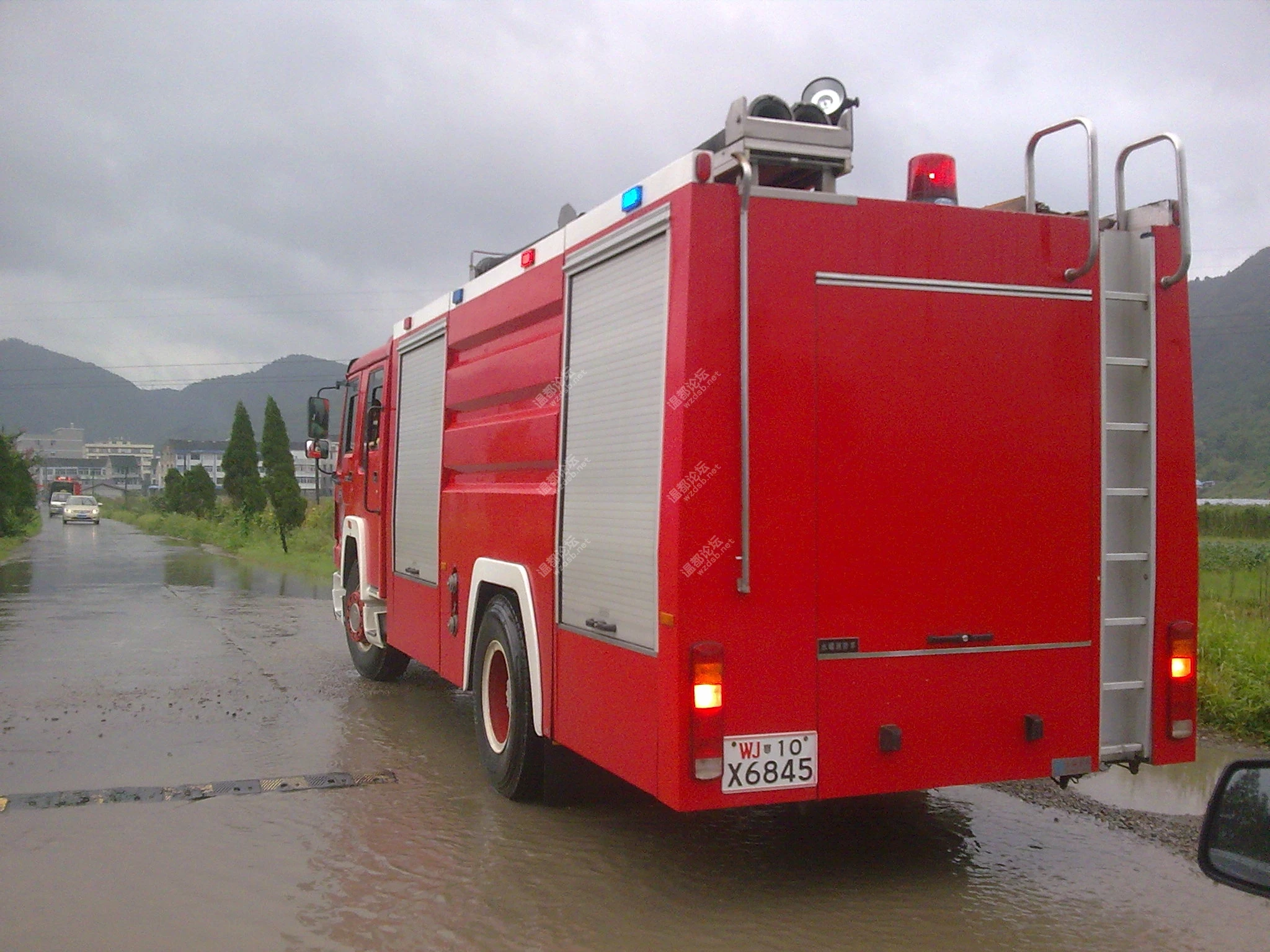

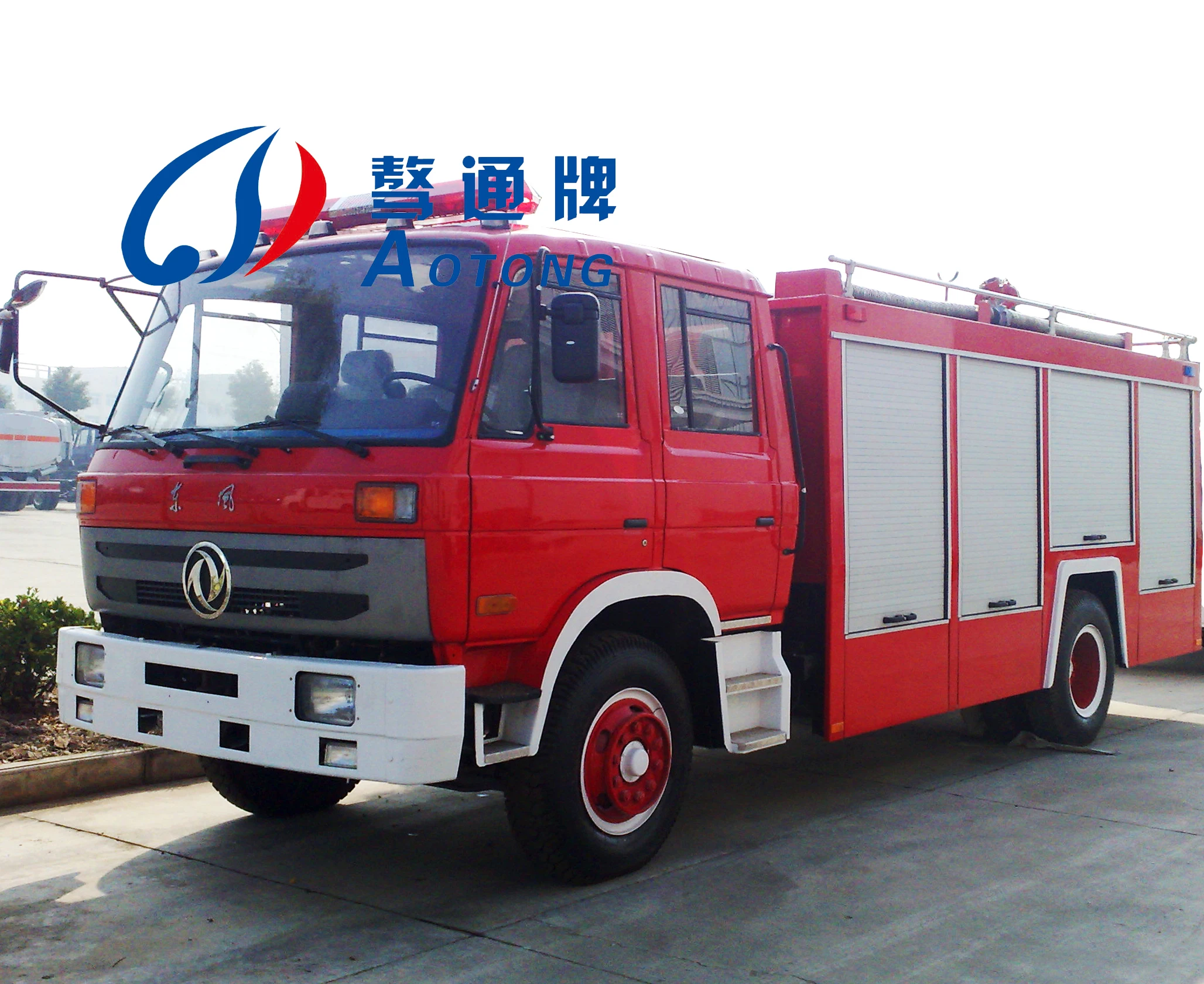

Dongfeng Brand Fire truck model EQ1141 for sale

Fire Truck Specifications:

Chassis Model /Manufacturer

EQ1141/ Dongfeng

Overall Dimension

Length×Width×Height

7900×2470×3390 mm

Total Mass

14900Kg

Max Payload

10000 Kg

Kerb Weight

6880Kg

The parameters of chassis

Chassis Model /Manufacturer

EQ1141

driving type

4*2

Cab type

single row

Engine

Manufacturer :

Dongfeng Cummins

Model

B190 33

Rated Power

190HP

Maximum power

140(KW)

Displacement

5900 ML

Fuel type

Diesel oil

Wheel base

4500mm

Front/Rear wheel tread

1940/1860mm

The number of leaf spring

8/10+8

Tire

10.00-20

The number of tire

6+1(spare tire)

A/C Air Conditioning

optional

Max Speed

85Km/h

Fire truck technical parameters

Agent

Water

5000 L

Foam

2000 L

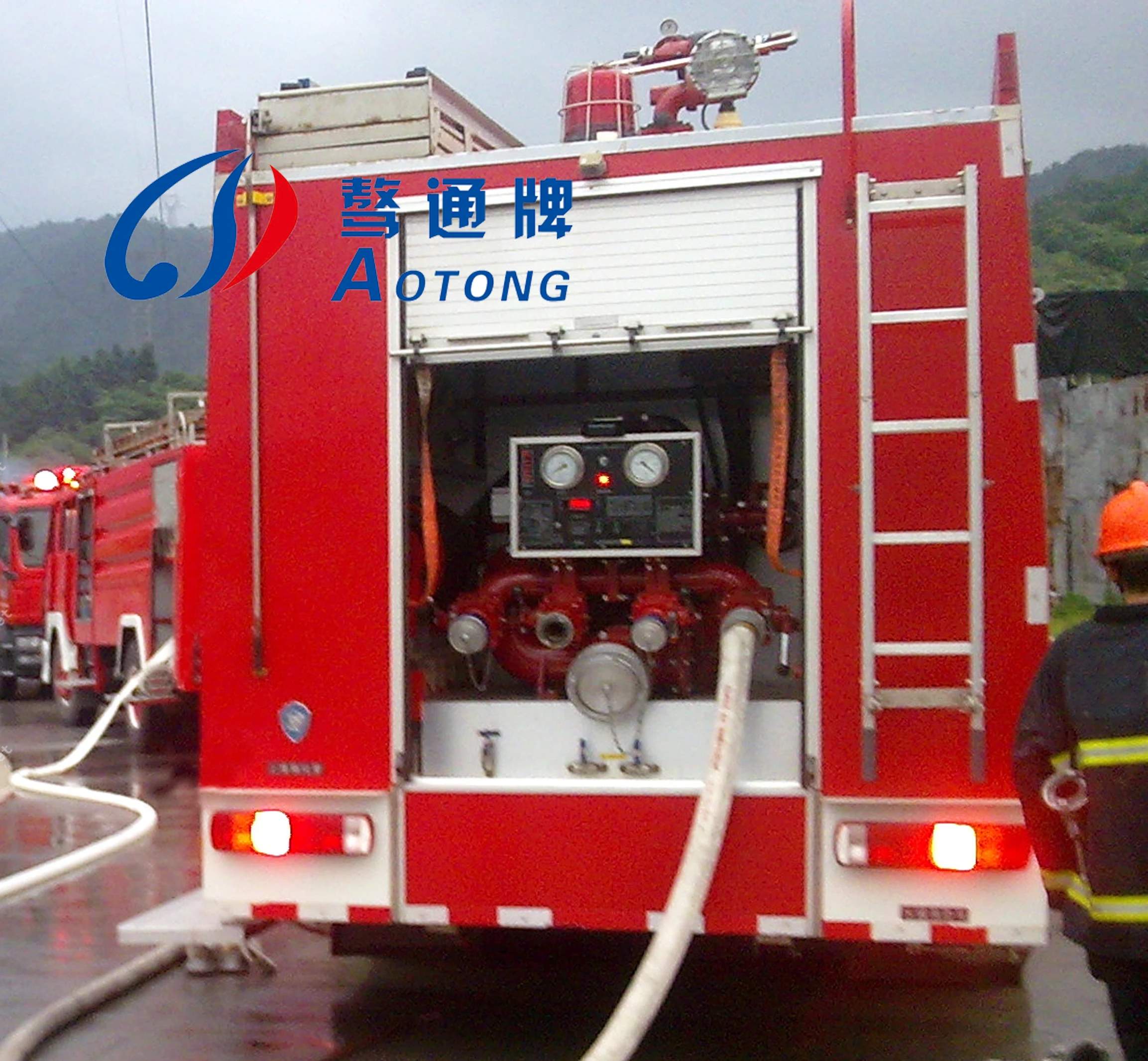

Fire pump

Model

CB10/40 normal pressure pump(Rear), high strength aluminum alloy, piston water device

Pressure

1.0(Mpa)

Flux

40(L/s)

Max suction deep

≥7(m)

Suction time

≤35(s)

Fire monitor

model

PP24

Range

water

≥50 (m)

foam

≥45 (m)

working pressure

≤1.0(Mpa)

Horizontal rotation angle

360 º
