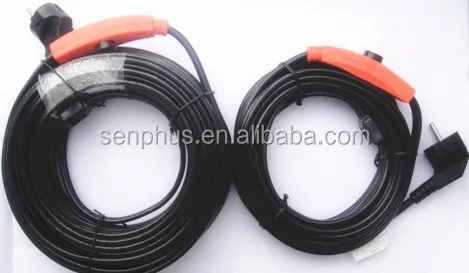

self regulating heating cable with thermostat

Product Overview

Description

  self regulating heating cable with thermostat :



• keeps your water line frost-free to -45 °C



• approved VDE safety



• do not use on heating pipes



• when insulated additionally, please do not insulate the thermostat



• Do not mount where animals can reach!



max. -45 °C



• prevents water pipes from freezing



• thermostat in the heating cable automatically switches the cable on



What to remember about 230 V heating cables:



• always attach the heating cable to the underside of the pipe



• the water pipe must be earthed



• the 230 V heating cables are ready to connect and should be connected to a power supply with a circuit breaker (30 mA residual current circuit breaker)



• the heating cables must not be shortened and should therefore be ordered in the correct length



• excess length can be wound around the pipe (note that a winding distance of at least 15 mm must be maintained between coils)



• do not bend the heating cable and note the maximum bending radius of approx. 50 mm



• the heating cables can be secured to the pipe with insulating tape or aluminium tape



• if using plastic pipes, aluminium tape must be wrapped around the pipe before routing the heating cable



• the pipe and heating cable should be insulated with an insulation of at least 13 mm



• the thermostat on the heating cable should be attached at the coldest position on the pipe



• the thermostat may only be insulated moderately



• do not use 230 V heating cables in animals' bite areas



• installation must be carried out in accordance with VDE0100 by a trained professional







Do not mount in animal feed area; use 24 Volt heating cable instead. Do not shorten the heating cable!





Specification of  self-regulating heating cable :





Senphus type		Heated section Length	Power
With thermostat	Without thermostat	M	W
SHPT-16-2M-2	SHPT-16-2M	2	32
SHPT-16-4M-2	SHPT-16-4M	4	64
SHPT-16-6M-2	SHPT-16-6M	6	96
SHPT-16-8M-2	SHPT-16-8M	8	128
SHPT-16-10M-2	SHPT-16-10M	10	160
SHPT-16-12M-2	SHPT-16-12M	12	192
SHPT-16-13M-2	SHPT-16-13M	13	208
SHPT-16-14M-2	SHPT-16-14M	14	224
SHPT-16-16M-2	SHPT-16-16M	16	256
SHPT-16-19M-2	SHPT-16-19M	19	304
SHPT-16-22M-2	SHPT-16-22M	22	352
SHPT-16-25M-2	SHPT-16-25M	25	400
SHPT-16-36M-2	SHPT-16-36M	36	576
SHPT-16-37M-2	SHPT-16-37M	37	592
SHPT-16-48M-2	SHPT-16-48M	48	768
SHPT-16-49M-2	SHPT-16-49M	49	784



Note
Voltage, Power, Cold Lead Plug, ect, can be designed according to customer's requirements. For example, 220/230V, 17w/m,16w/m or 20w/m,23w/m,etc.



Thermostat: imported from Japan



Package: plastic bag+small carton + big carton(16 or 10 small in one big carton)

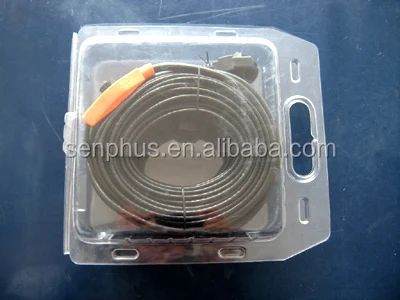

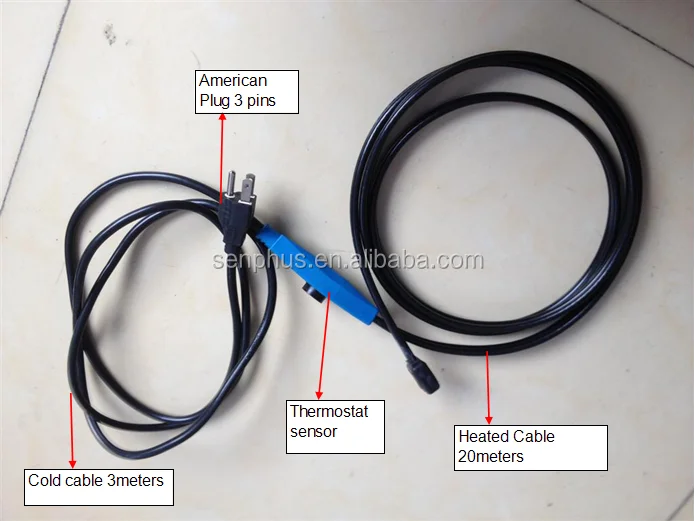

Product show and package for frost protection heater cable :
