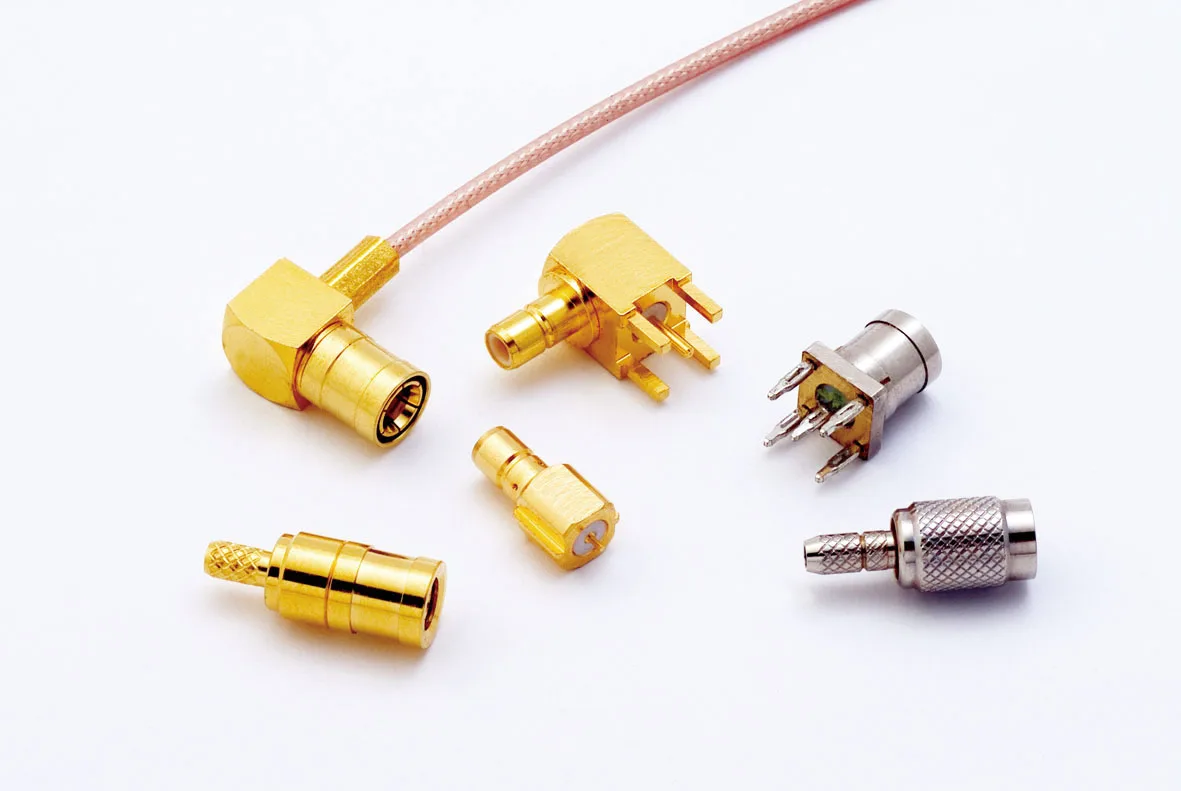

SMB Connector Straight PCB Edge Mount Jack

Product Overview

Description

SMB Connector Straight PCB Edge Mount Jack

1. ISO 9001 & IATF 16949 certified
2. RoHS & REACH compliant

3. Made in Taiwan





Features:

1. Snap-on/quick disconnect mating
2. Low cost solution
3. Available in 50Ω and mini 75Ω

Applications:

1. Automotive
2. PC/LAN
3. Test and Measurement
4. Telecom

Electronical Specifications

Impedance	50Ω and mini 75Ω
Frequency Range	0-4 GHz
Working Voltage	RG-178: 250 VRMS max. at sea level
	RG-316, .085": 335 VRMS max. at sea level
Dielectric Withstanding Voltage	RG-178: 750 VRMS min. at sea level
	RG-316, .085": 1000 VRMS min. at sea level
VSWR	Straight: 1.3 max.,  R/A: 1.5 max.
Contact Resistance	Center Contact: 6 milliohm Max.
	Outer Contact: 2.5 milliohm Max.
Insulator Resistance	1000 megaohms min.





Material Specifications

Parts Name		Material	Finish
Center Contact	Male	Brass	3u" Gold
	Female	BeCu	3u" Gold
Body, Metal Parts		Brass	Nickel or Gold per requirement
Insulators		PTFE	None
Gaskets		Silicone Rubber	None
Crimp Ferrules		Annealed Copper	Nickel or Gold per requirement



Note: Other Material/Finish is available on request
