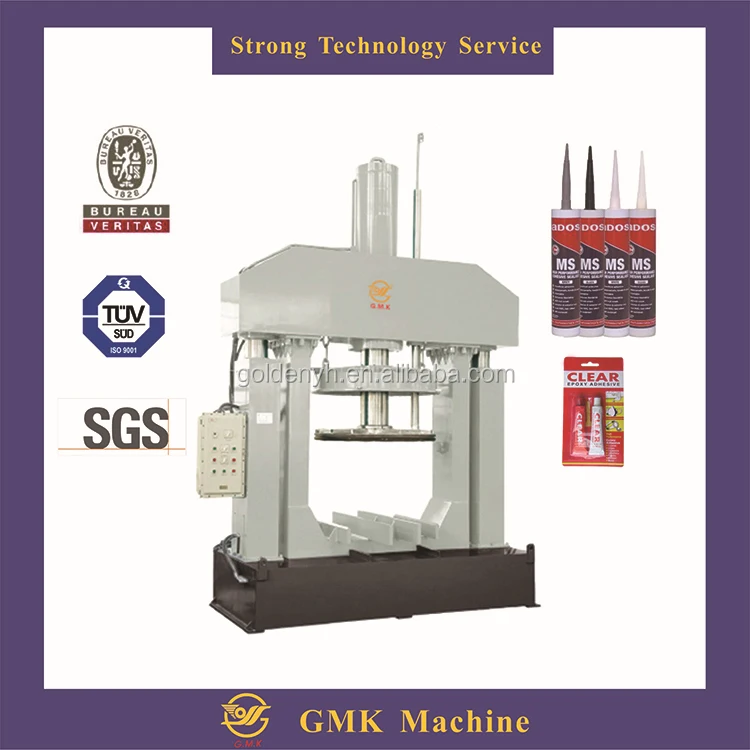

GMK hydraulic discharge extruder for sealant
1,Summary:
DYL series hydraulic discharge machine is a machine mating with planetary mixer, planetary dispersion mixer and powerful dispersion mixer, it is for filling certain flowing materials, especially for press filling viscous materials. It features simple structure and ease of operation. It is comprised of chassis, lifting rack, cylinder, press plate, hydraulic system and electric control cabinet.
2,Main Technical Configuration
1 | Structure | Single cylinder, simple type(DYL) | Place of Origin |
2 | Design pressure | 20 Mpa |
|
3 | Total pressure | 63T |
|
4 | Dia. of press plate | Φ740 mm (equipped with mechanical automatic exhaust valve) |
|

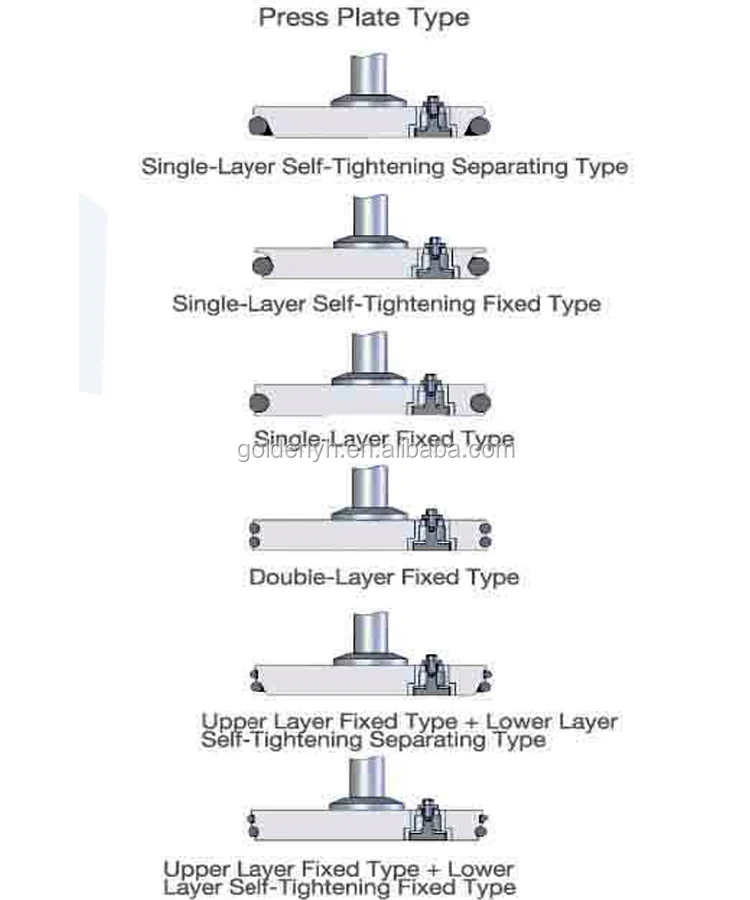

5 | Sealing Ring Mode | Single sealing ring, separate type, self-tighten type, press plate material is Q235-B. |
|
6 | Main cylinder | ΦD220/d160:H1150*1pc | Guangzhou Runyitai |
7 | Hydraulic station | Oil tank 100L, with energy accumulator 6.3L, with pressure stabilizer device, hydraulic oil pump is plunger pump. Cooler:OR-100, motor power 5.5kw, common type | Dongguan Zongli |
