Product Overview

Description

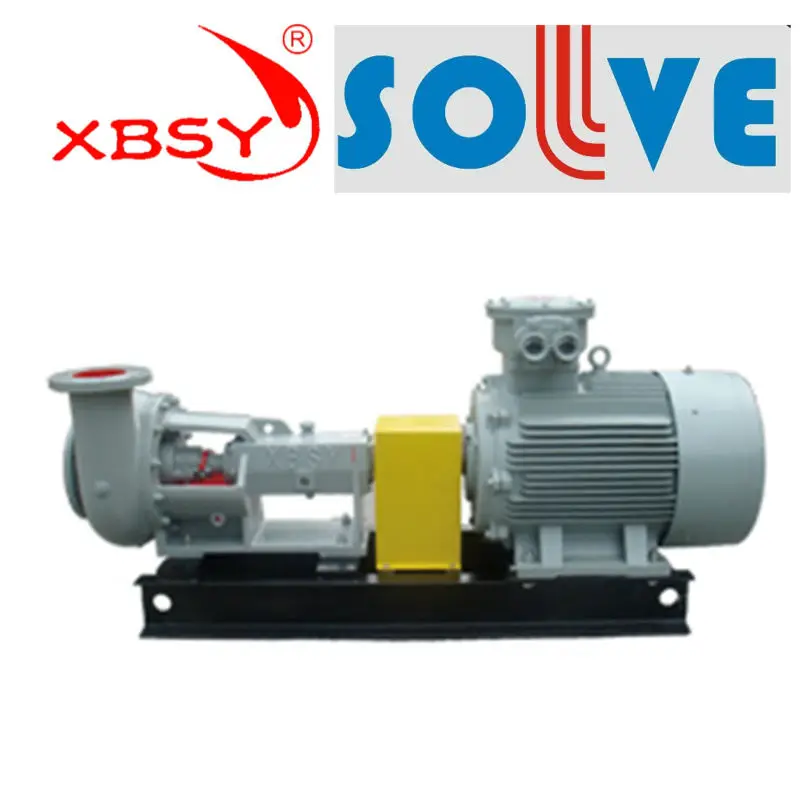

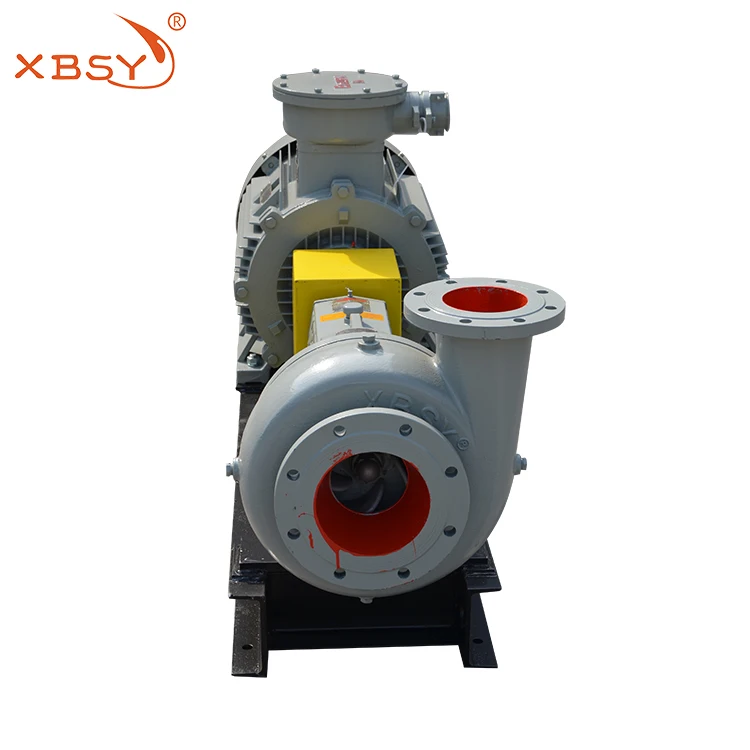

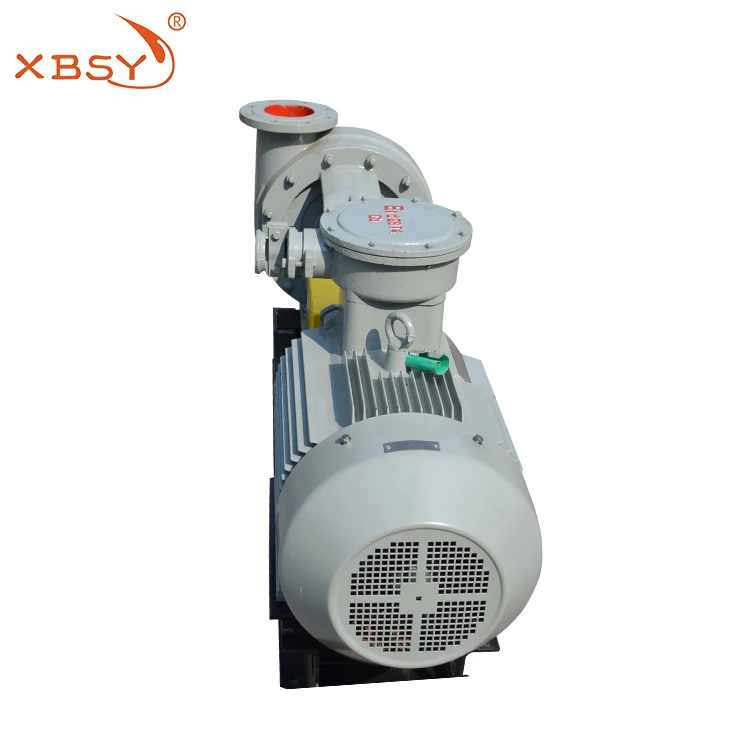

SB series sand pumps are supplementary pumps, newly designed and manufactured according to features of petroleum and natural gas drilling equipment.

The pumps are applicable to deliver corrosive drilling fluid (with suspended particulates) or other liquid media under similar work condition.

Sand pumps are optional pumps for desander, desilter and mixing hoppers as well as perfect perfusion pumps of mud pumps.

We have more than 80 models of SB6*8, SB5*6, SB4*5, SB3*4, SB2*3 for choose.

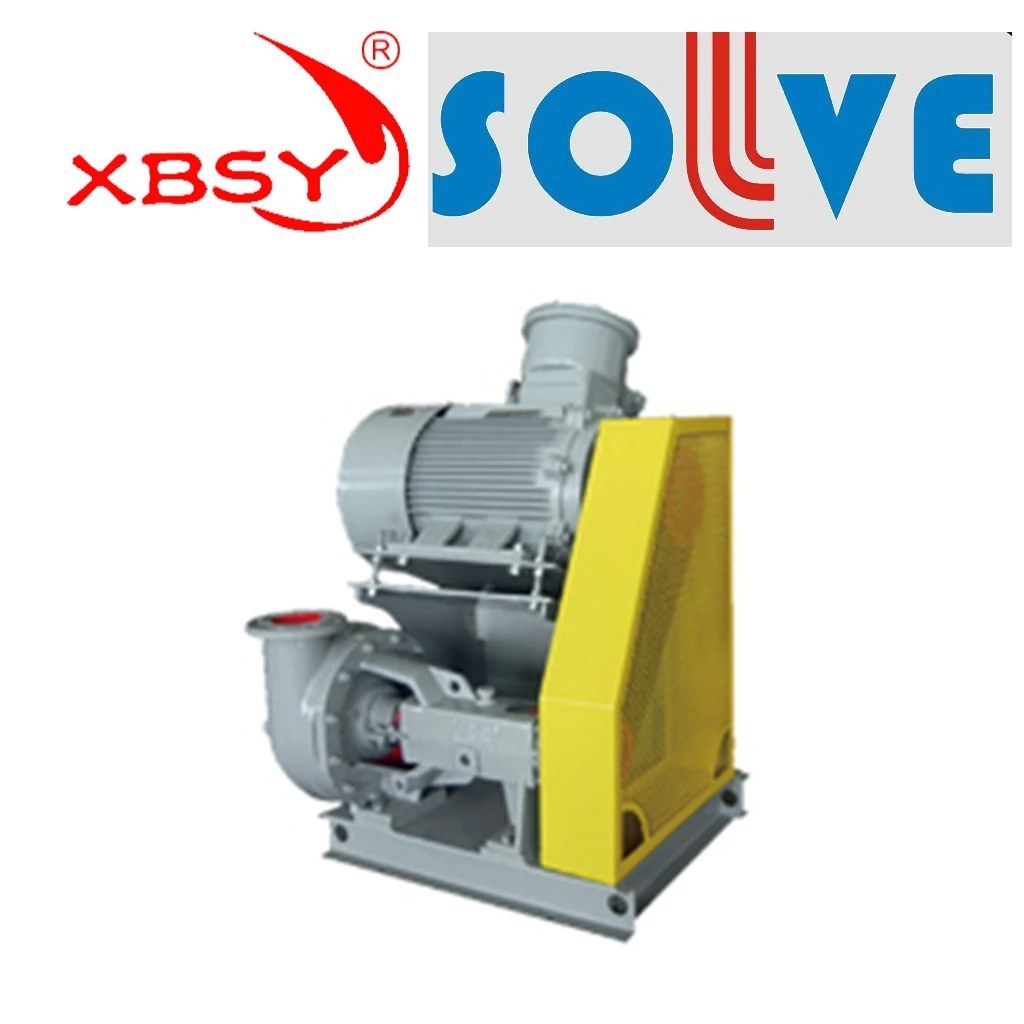

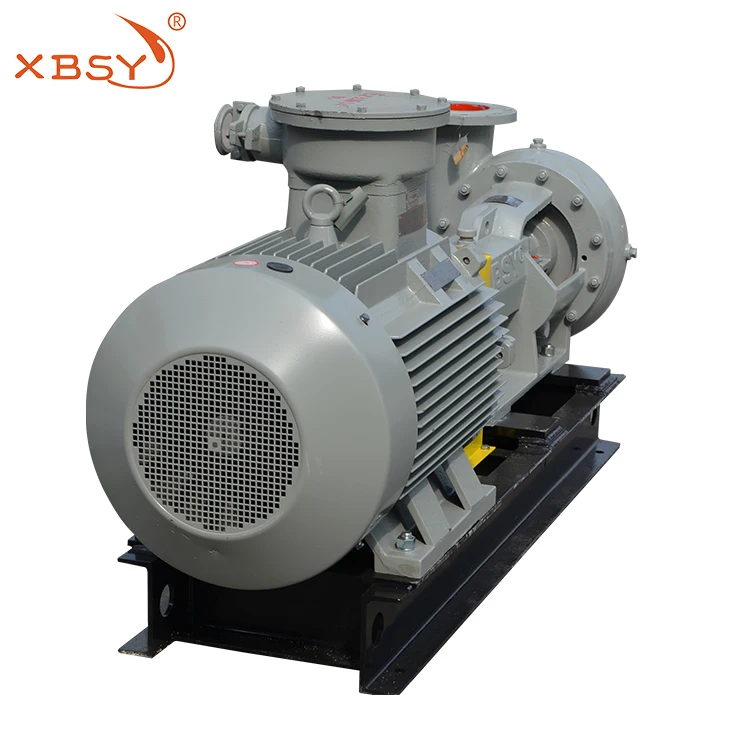

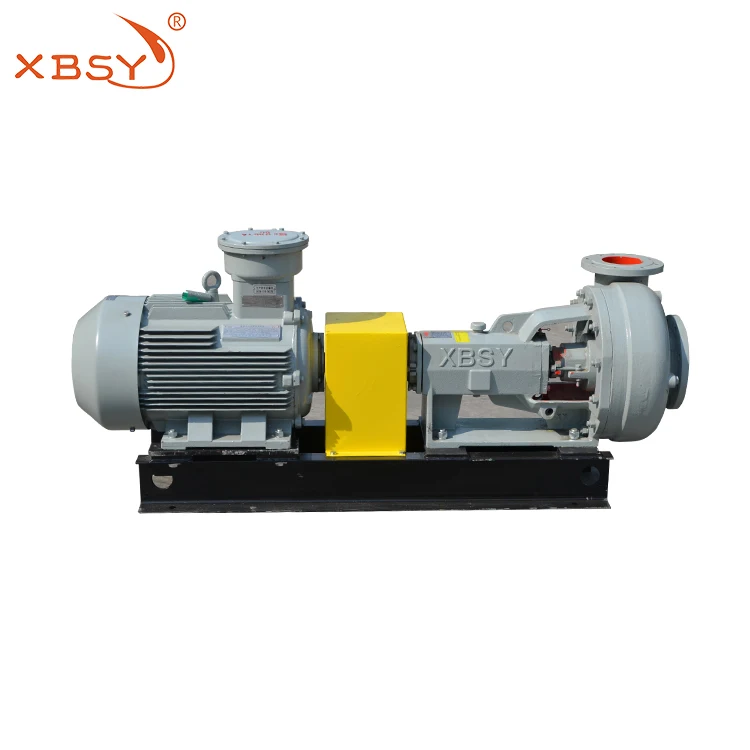

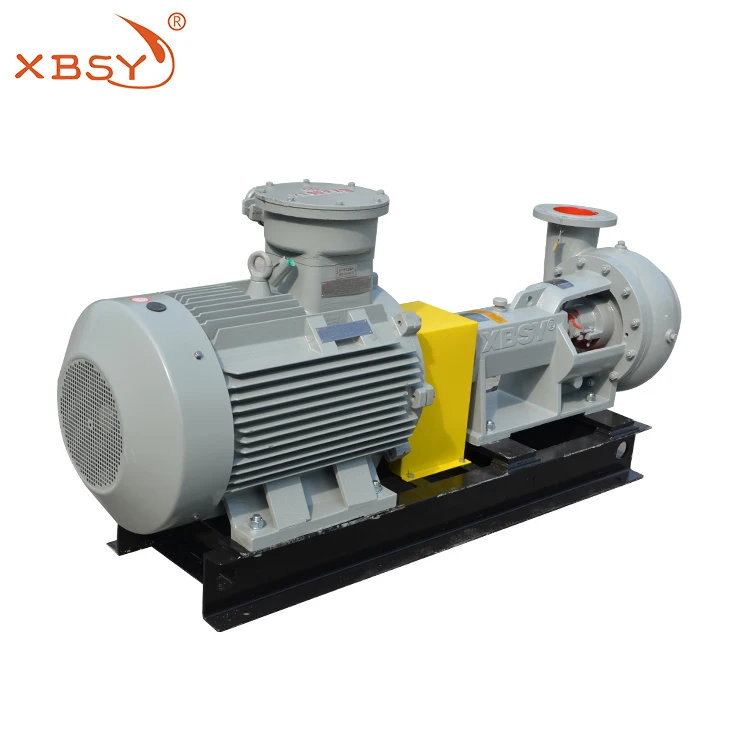

The sand pumps have two structures of direct connection and belt transmission which are suitable for power grids of 50Hz and 60Hz. They also have metric and british systems , clockwise and unclockwise direction.

Type Capacity (m³/h) Head (m) Speed(rpm) Efficiency (%) Power(kw) Weight (kg) Dimension L*W*H(mm) 50Hz 60Hz Shaft power Motor power SB6*8J-13 240 37 1480 1780 67 36 75 1130 2056*698*1022 SB6*8J-12½ 200 36 1480 1780 66 29.7 55 1000 1996*698*972 SB6*8J-12 200 33 1480 1780 64 28 45 850 1916*638*917 SB5*6J-12½ 200 33 1480 1780 64 28 45 785 1806*528*917 SB5*6J-12 180 31 1480 1780 63 24.1 37 760 1781*528*844 SB5*6J-11½ 160 28 1470 1780 62 19.7 30 650 1746*528*844 SB5*6J-11 140 22 1470 1780 62 13.5 22 545 1686*516*764 SB4*5J-10½ 150 26 1470 1780 61 17.4 30 580 1662*490*817 SB4*5J-10 150 25 1470 1780 61 16.8 22 480 1602*453*720 SB4*5J-9 93 20 1460 1760 58 8.8 15 400 1564*453*705 SB3*4J-10 85 26 1460 1760 61 9.9 15 360 1405*433*682 SB3*4J-9½ 80 23 1460 1760 61 8.2 11 340 1365*443*682 SB3*4J-9 54 18 1440 1750 60 4.4 7.5 290 1245*443*650 SB2*3J-10 55 22 1460 1760 60 5.5 11 320 1352*446*682 SB2*3J-9 50 18 1440 1750 56 4.4 7.5 260 1232*446*650 SB2*3J-8 40 16 1440 1750 54 3.2 5.5 245 1192*446*650 SB2*3J-7½ 25 11 1440 1750 50 1.5 4 223 1161*446*600

1.wooden/steel case.

2.according to customer's request.

Engineers are to do service overseas.

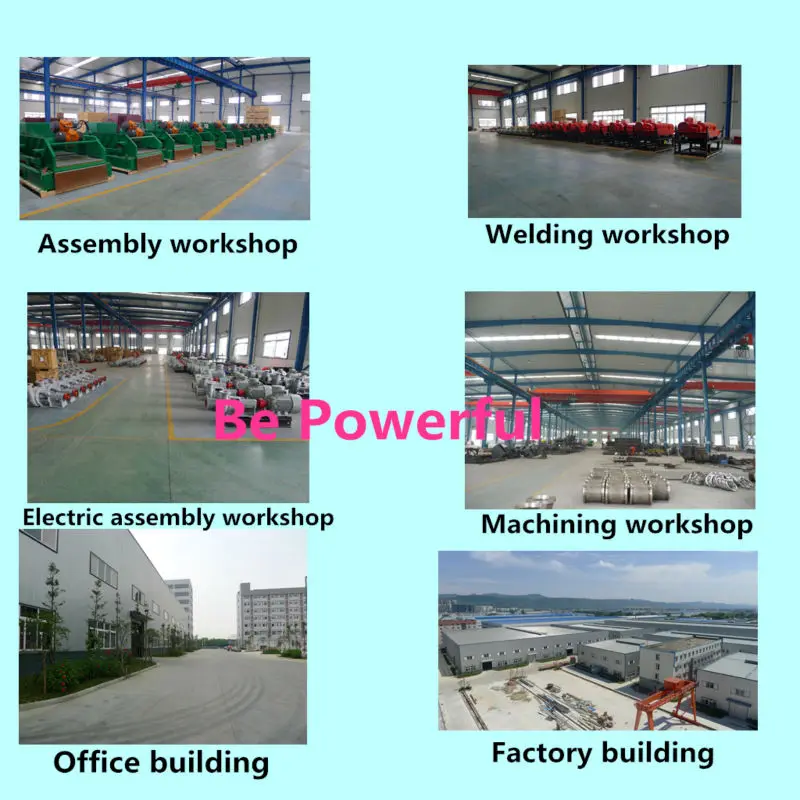

Chendu West Petroleum Equipment Co., Ltd. is a high-tech company covered design, manufacturing, and sales for drilling equipments. The factory covers about 120 acres with 55000m² workshop and more than 200million capital.

We have about 200 sets of modern machining equipments such as machining center, digital controlled milling planer, laser cutting machine, big lathe, boring machine, cylinderical grinding machine, sand praying machine and paint machine.

The products are adopted by drilling companies of the domestic major three petroleum groups and diller manufactures.

Our products are exported to more than 30 countries such as Russia, USA, Venezuela and UAE.
