WILO Water Pump Double Pipeline Solar Pump Station (WS II)

Product Overview

Description

WILO Water Pump Double Pipeline Solar Pump Station (WS-II)



Mode: WS-I, WS-II

Application:  a combined circulation unit for solar water heaters.





ADVANTAGES

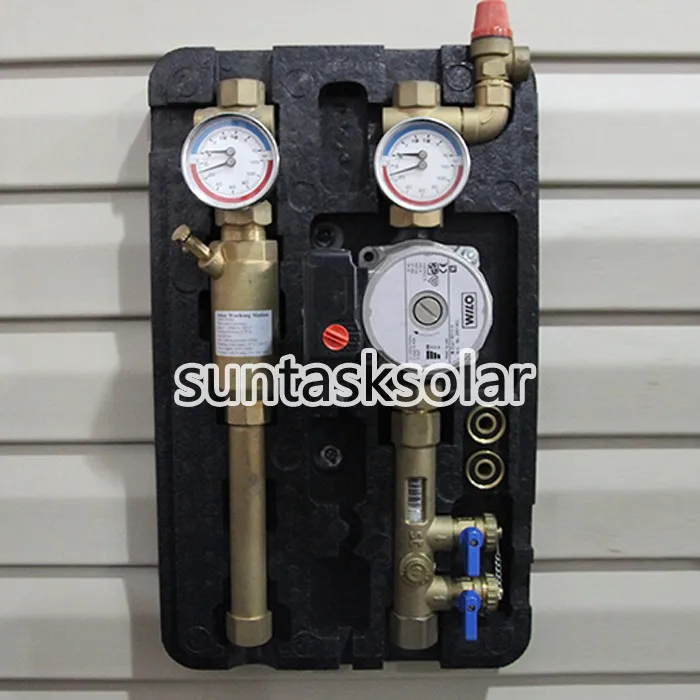

WS-II is a combined circulation unit for solar applications.

•No filling pump needed, Using the working station with the container supplied could simplify the installation on filling medium liquid. The circulation pump will allow one man to fill the system.

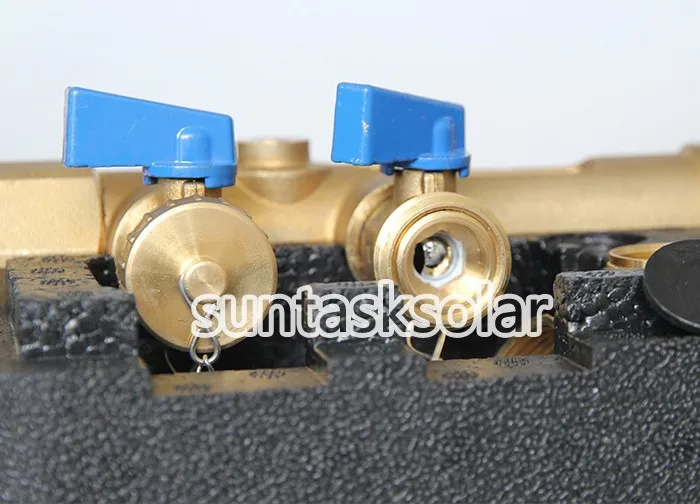

•Multifunctional ball valve to simplify the system filling.

•Install the collector and the cylinder separately.

•Preset the flow rate.

•Air stop device , manual integrated vent.

•Can work conjunction with any controller.

•Safety operation, excellent performance, Maintenance free.

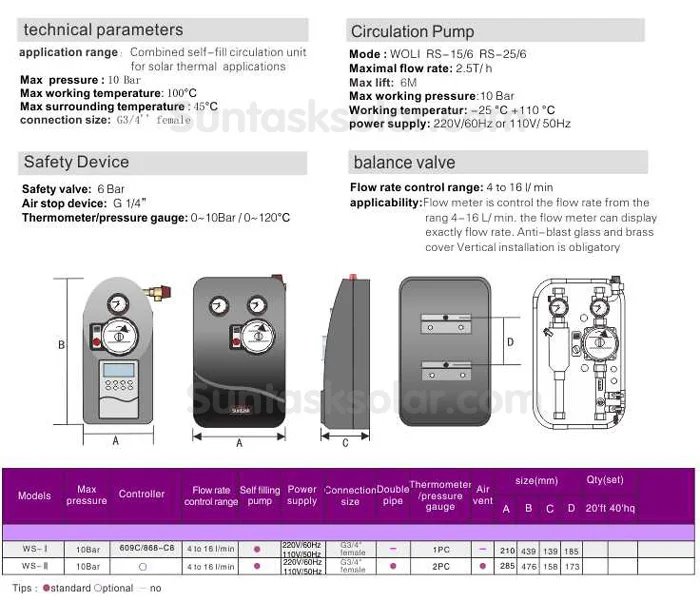

SPECIFICATIONS



Application range:Combined self-fill circulation unit for solar thermal  applications

Max  pressure :10 Bar

Max working temperature: 100 °C

Max surrounding temperature:  45 °C

connection size:  G3/4’’ female

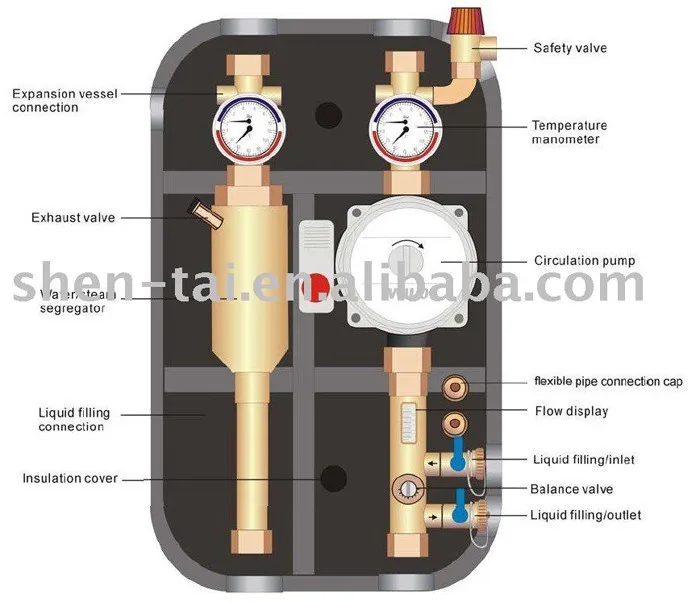

Safety Device

Safety valve: 6 Bar

Air stop device: G1/4"

Thermometer /pressure gauge: 0~10Bar /0~120 °C



Circulation Pump

Mode:  WILO RS-15/6 RS-25/6

Max. flow rate: 2.5 T/h

Max. lift: 6m

Max. working pressure: 10 Bar

Working temperature: -25 °C +110 °C
Power supply: 220V/60Hz or 110V/50Hz

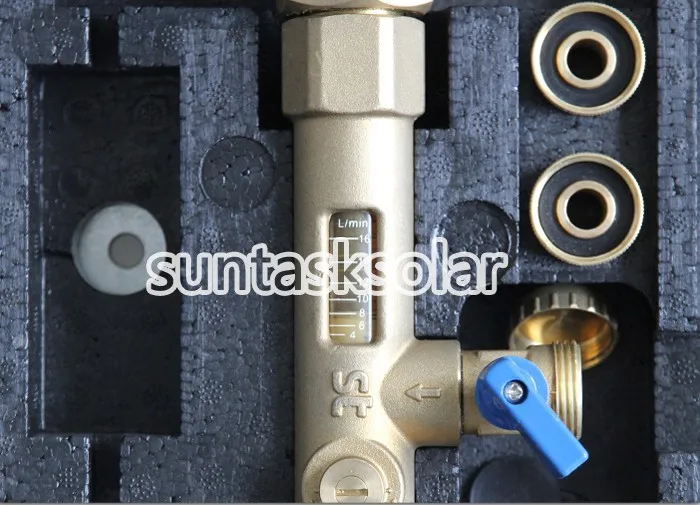

Balance Valve

Flow rate control range:  4 to 16 l/ min

Applicability:  Flow meter is control the flow rate from the range 4-16L/min. The flow meter can display exactly flow rate. Anti-blast glass and brass cover Vertical installation is obligatory.



Cover

Outer: EPP black ppe

Installation: vertically
