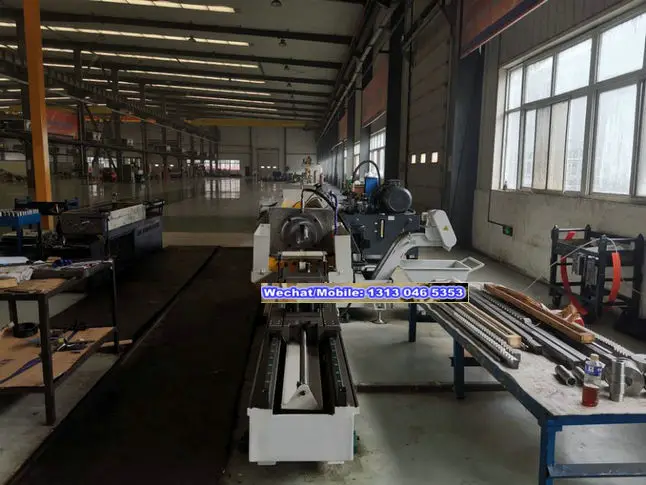

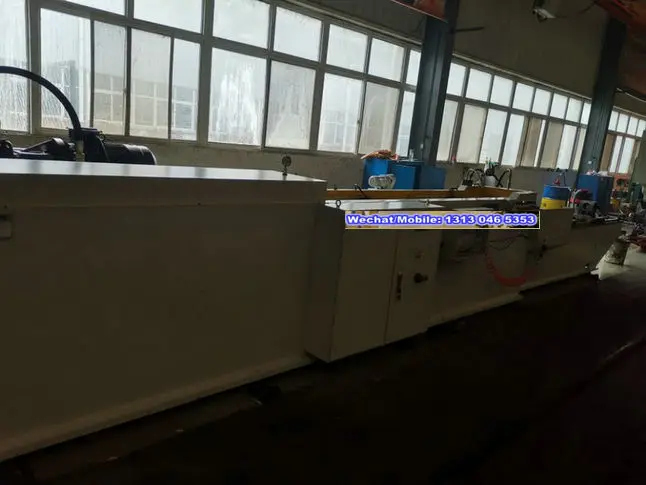

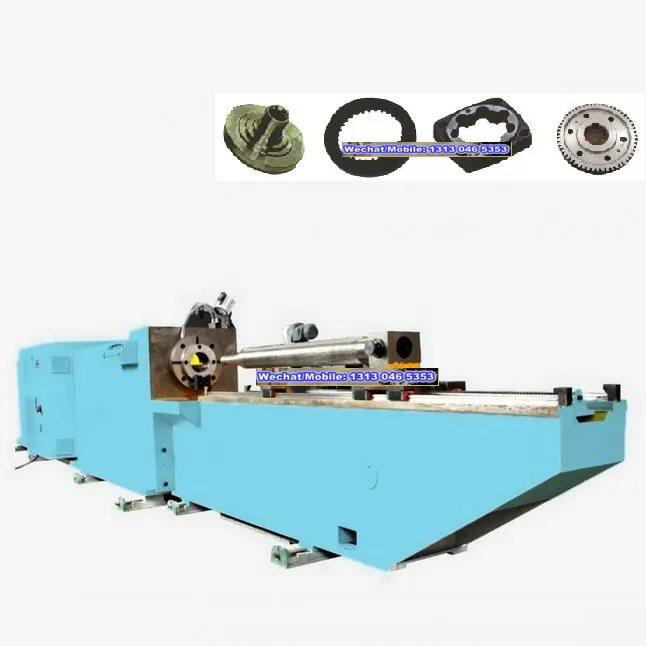

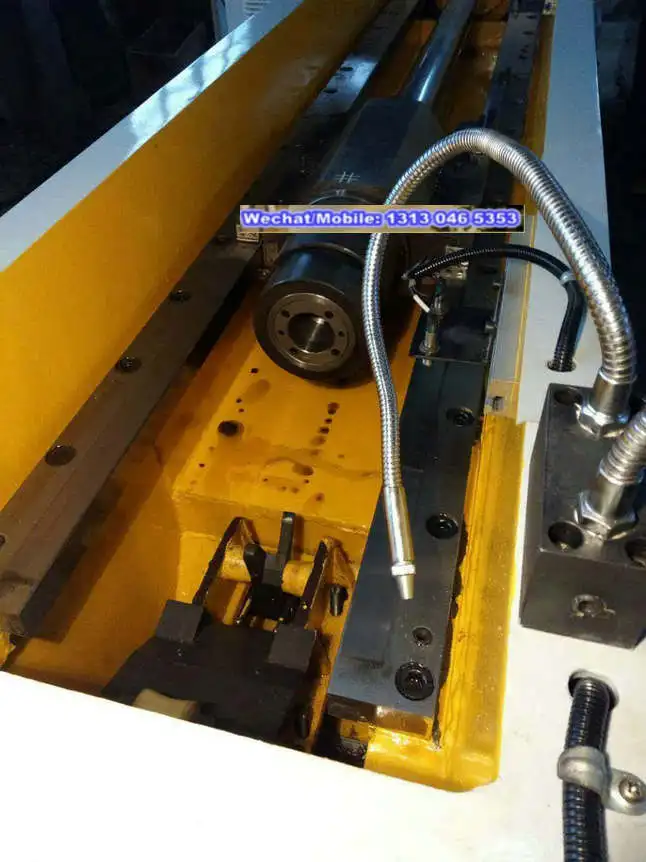

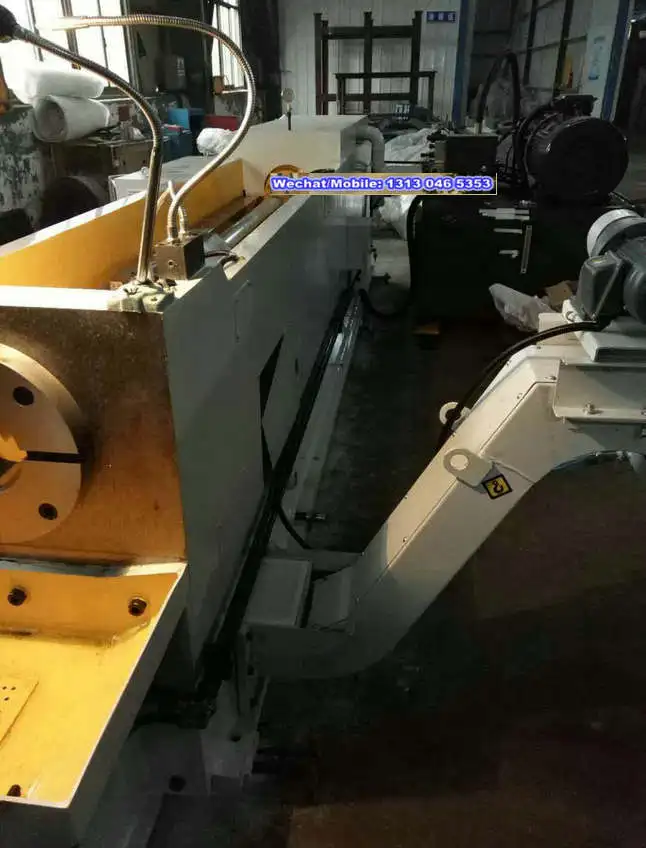

L6110 horizontal broaching machine
Related Broaching
L5710(10t) Pull-up Hydraulic Vertical Broaching Machine
L5720(20t) Widely-used PLC Vertical Broaching Machine
Main Usage
This kind of broaching machine is mainly used for machining inner holes of various types of parts, such as round holes, squred splined holes, holes with single key, involute profile and others.
Main Technical Data
Specifications | Unit | Parameter |
Rated pulling capacity | kN | 100 |
Nominal working stroke | mm | 1250 |
Working stroke speed (stepless) | m/min | 1.5~9 |
Return stroke speed (stepless) | m/min | 7~18 |
Bore diameter of the faceplate | mm | Φ100H7 |
Bore diameter of end-plate bearing | mm | Φ150H7 |
Operation height | mm | 900 |
Main oil pump flow | L/min | 0.07 |
Max. working pressure | MPa | 16 |
Motor for main drive | kW | 15 |
Speed of main motor | r/min | 1470 |
Electrical cool pump |
|
|
Main oil pump flow | L/min | 100 |
power | kW | 0.25 |
speed | r/min | 3000 |
Overall dimensions (LxWxH) | mm | 5600x1800x1200 |
Net weight | kg | Appr. 6000 |
Free Std Accessories
Pls send inquiry to me for standard accessories and other further information about such internal key way broaching machines.
Optional Accessories
Optional accessories will be provided according to customers' exact machining requirements;
