Manure slurry pump non clogging mud sand ash durable slurry pump

1.  They are designed for transferring the highly abrasive or corrosive slurry

2. They are popular in many kinds of mining,metallurgical,and other industry.

3. The pumps can be driven by electric motor, diesel engine or hydraulic power.

4. The discharge of pump can be in eight positions to suit installations and applications.

5. The shaft seals can be adoptable of gland seal or expeller seal, or mechanical seal.

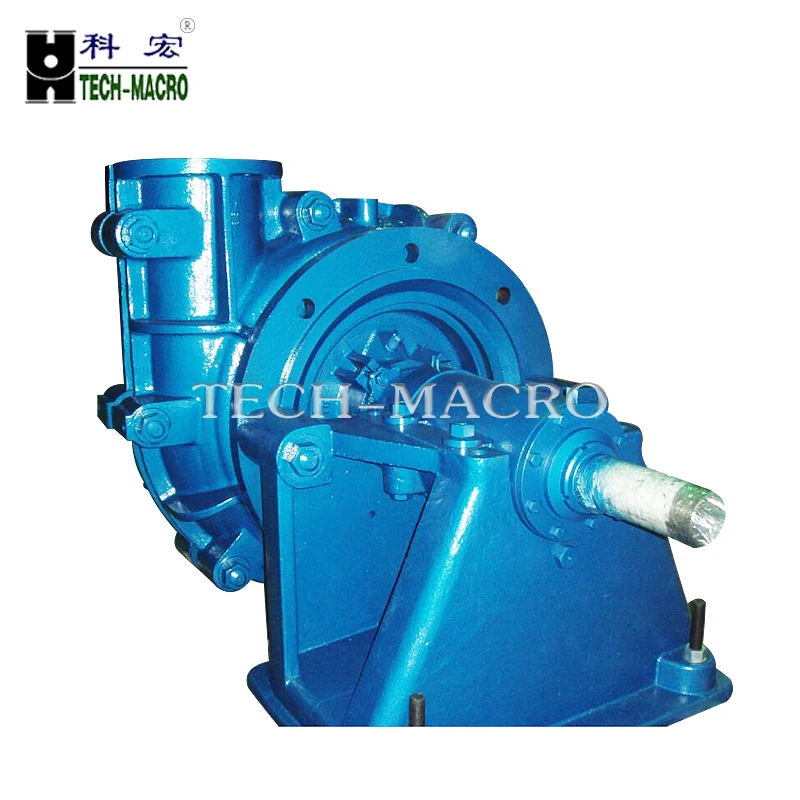

Picture shows

1.KA(R) series Slurry Pump Features:

 ♦  Our Pump wet parts are made of wear-resistant high chromium alloy. Top Quality Material

 ♦  Our Pump bearing assembly use cylindrical structure, adjusting the space between impeller and front

     liner easily. They can be removed completely when being repaired. Bearing assembly use grease

      lubrication.    International famous brearing

 ♦  The shaft seal could use the packing seal, expeller seal and mechanical seal for all slurry pump.

 ♦  The discharge branch can be positioned at intervals of 45 degrees by request and oriented to

      any eight positions to suit installations and applications at its working site.

 ♦  There are the drive types, such as V belt drive, gear reducer drive, fluid coupling drive, and

     frequency conversion drive devices.

 ♦  Wide performance, good NPSH and high efficiency. The slurry pump can be installed in

      multistage series to meet the delivery for long distance.

2. KA(R) series Slurry Pump application

KA(R) type slurry pump are cantilever, horizontal centrifugal slurry pump, which are used for delivering the fine particle and corrosive slurry for metallurgical, mining, coal, petroleum & chemical, transportation, river and channel dredging, building material and municipal projects, etc



3. slurry transfer pump Parameters:





Inlet Diameter:1.5~20 inch(38 ~508mm)



Discharge Diameter:1~18 inch(25~460mm)



Flow Capacity:3.6~6480m³/h



Head:4~69m

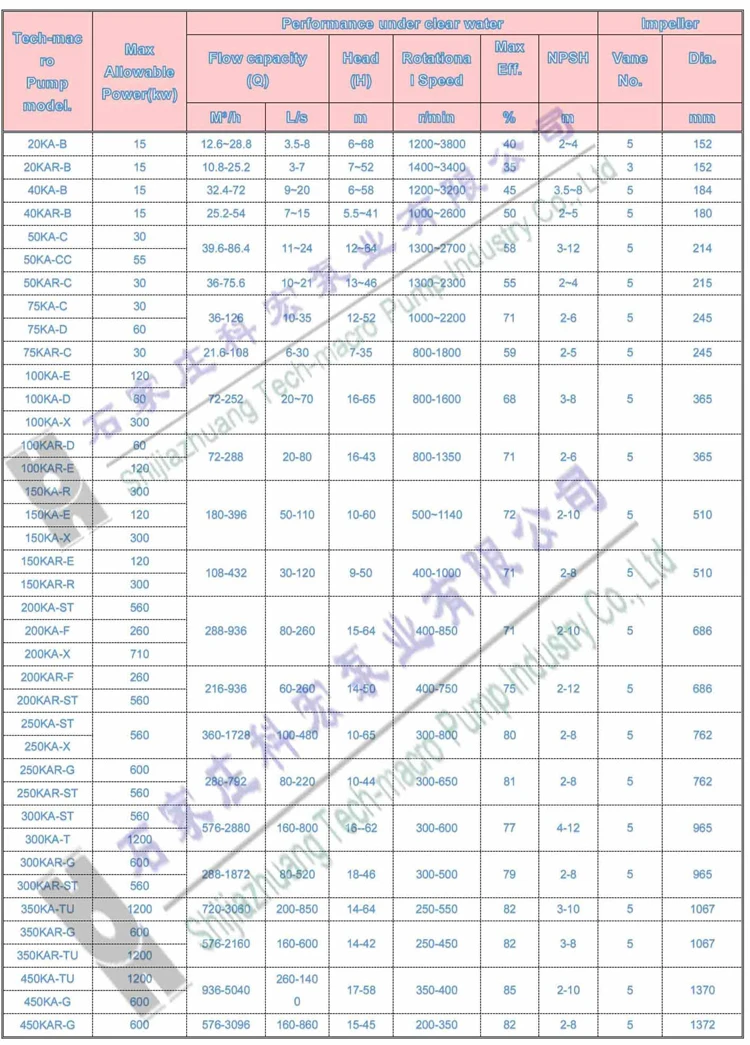

4. Slurry Pump specification:

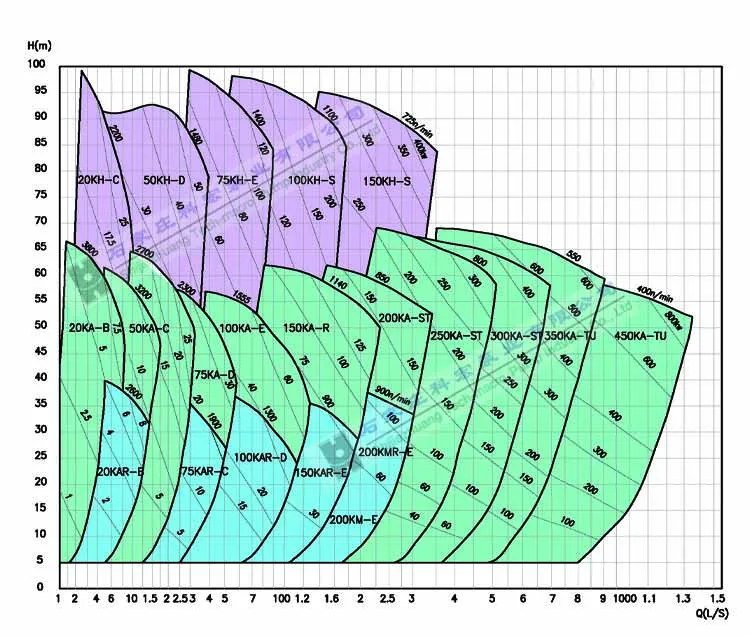

Selection Chart



Construction



Production Flow



Our Services

To survive with quality, to growth by technology, to provide higher cost-effective pump products and service for the community are Tech-macro's constant pursuit!



We would like to inaugurate the future with you!

Pre-sale Service:	Accurately grasp customer needs, professional technical support, optimal design solution.
In-sale Service:	To provide customers with technical guidance, site installation and training service.
After-sale Service:	Regular follow-up, timely spare parts supply and maintenance service, quick response.
