industrial liquid mixer agitator electric milk mixing agitator washing machine agitator with motor
- Category: >>>
- Supplier: Dongguan Nosen M&e Technology Co. Ltd.
Share on (1828252485):
Product Overview
Description
Product Description

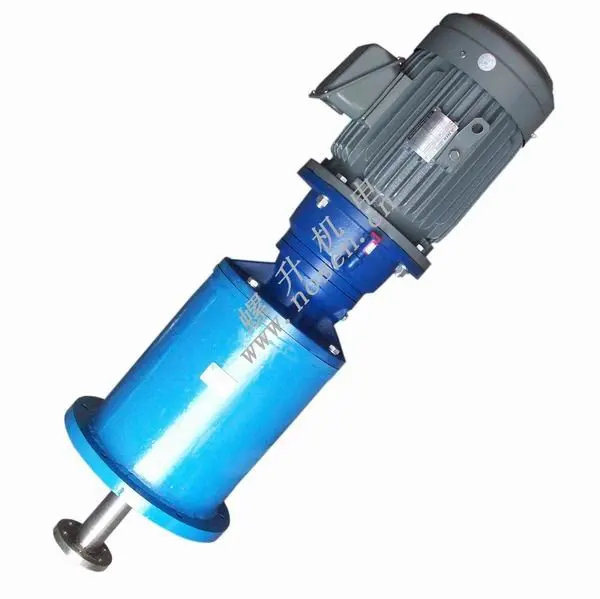

Gear Motor Agitators
export liquid agitators
main structure includes planetary reducer/gear motor and supporting base.The mixer includes shaft coupling,pole shaft and blades etc. Bellow is the main structures simple descriptions.
Planetary Reducer/Gear Motor: As many types of speed reducer,their structures and efficiences are quite different as well as the pricing. The installation and spaces could also be restricted, NOSEN supply Planetary Reducer,to ensure liquid mixer with first-class quality.
If clients no special requirement,we will use planetary reducer. Some times clients consider the cost of liquid mixer,then we will advise clients to use Taiwan brand gear motor.
Supporting Base: Because fierce dynamic loading generated by the mixing of the fluid,the motion stability and life of the liquid mixer is determined by the structure of the supporting base. Rotating speed,viscosity and capacity etc are the factors to be considered. NOSEN will provide different models following clients requirements. All supporting base are precision machined to increase their operation stability.According to different environments,we will select the most suitable materials for supporting base.
Shaft Coupling: According pole shaft length, NOSEN will select different type flange shaft coupling for its solid structure that will connect the mixer with mixing machine firmly and in a straight line.
Pole Shaft: At present, NOSEN pole shaft materials is SS304 or SS316, is also for customization.
Mixing Blade: We have two kinds of propellers type for selection flat-blade paddles(2 blades) and airscrew blades(3 blades).Usually, SS304 or SS316 are selected,is also for customization.
Liquid mixer features:
Electricity systems: 110~440VAC, 50/60Hz, single/three phases are available
Input power: 0.2 ~ 15 kw
Mixer revolutions: 10~430 rpm; 1000 rpm or 1500 rpm is under no speed reducer.
Pole shaft diameters: 20~60 mm
Propeller diameters: 100~1000 mm
Materials: SS304/SS316
Application:
Chemical industries
Wastewater industries
Food processing
Agricalture
Packaging & Shipping
1.Payment:T/T,Western Union
2.Trade terms:FOB,CIF,EXW
3.Shipping:paper box,plywood case
4.Normal lead time:7days for sample order
15days for production order
5.Payment condition:30% before production
70% before delivery
Company Information
NOSEN company is established in 2003,we are professional mechanical&electrical equipment products manufacture with 12 years experiences in China.Offering various kinds of mechanical&electrical products.Our main products are screw jack,spiral bevel gearbox,agitator,brake&clutch,electric linear actuator and so on.
Our Services
Pre-sale services:
NOSEN engineers help clients consider all safety factors, select correct models step by step ,
Auto Cad & PDF drawing and layout for clients' engineers reference.
(With High quality ,reasonable price and excellent services )
After-sale service:
Expert sales teams, familiar with I&E regulation, ensure goods shipment smoothly.
Follow up the exported goods from time to time, and make a report for monthly meeting.
During warranty period, any problem of "NOSEN" products, after we confirmed, we will ship a new one to replace.
FAQ
FAQ:
Q: Why choose NOSEN ?
A:1.Professional Mechanical manufacture for years with full experience .
Own factory, you could share direct factory price,Quality guaranteed by our QC.
Q:What paying methods do you accept?
A:T/T and West Union
Q:What ‘s the time of delivery?
A:It’s subject to your order quantity and our production schedule,
Usually,7-15 working days for production after receipt of payments
Q: What is your guarantee period?
A: NOSEN provides 1 (one) year quality guarantee for the products from your purchase date,
except the human damage and force manure factor.
Contact Info
Jack Nosen
NOSEN M&E TECHNOLOGY CO.,LTD
Xinhaoyuan Industrial Park,Xitou,Houjie,Dongguan,Guangdong,China
T: 86 769 88771988/88773988
F: 86 769 85644652
PS: Any questions or special requirements, please feel free to contact us !
Your success is our business!
