JL 1000 reinforced cement concrete pipe machines

Product Overview

Description

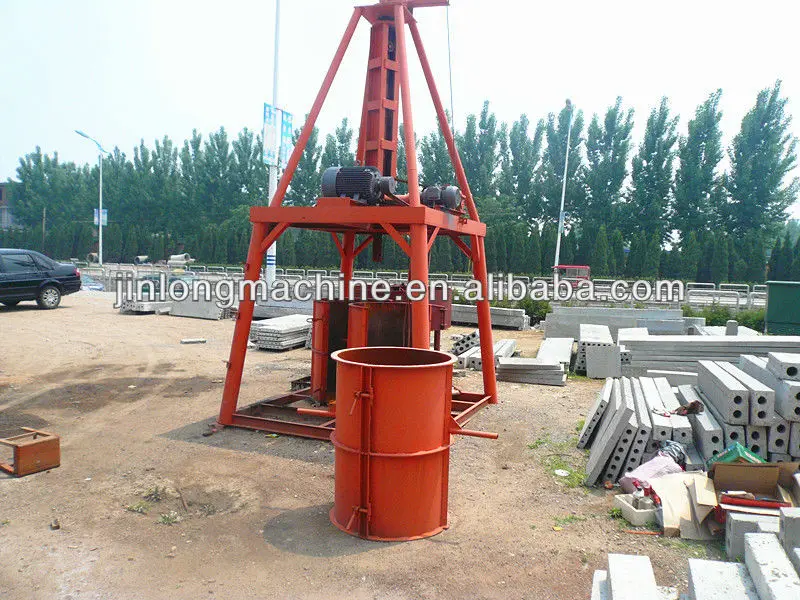

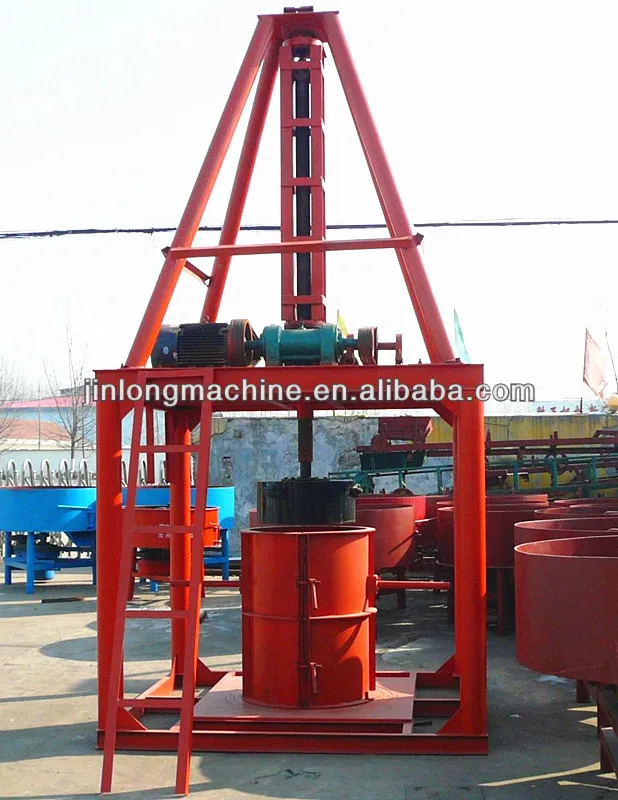

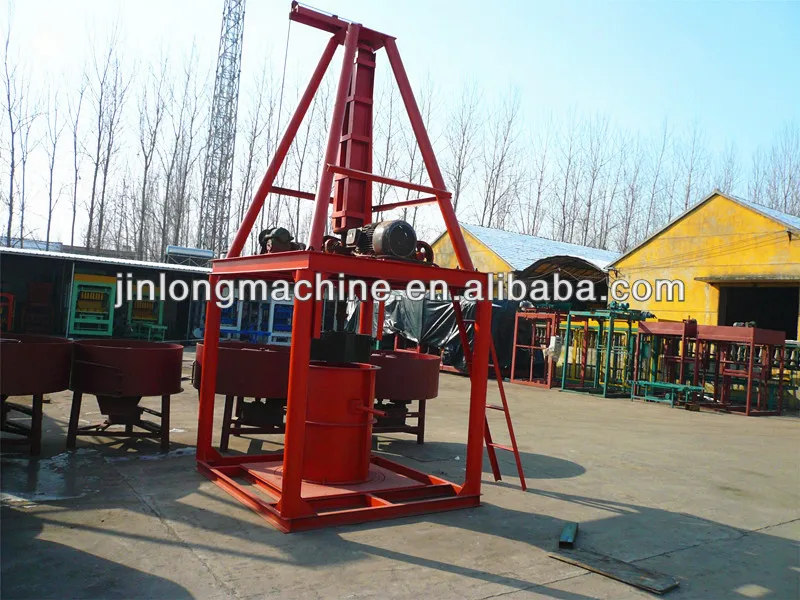

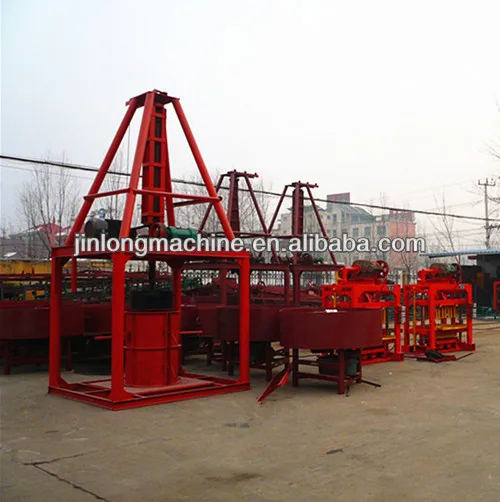

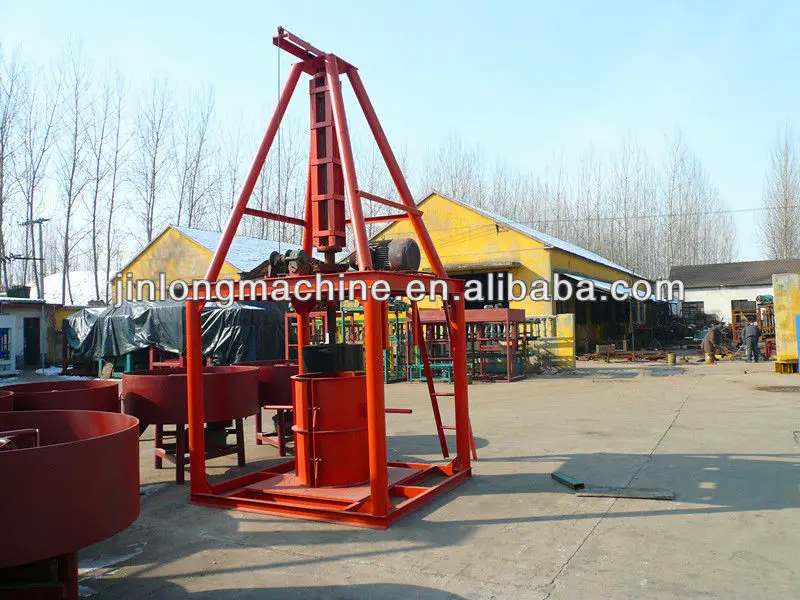

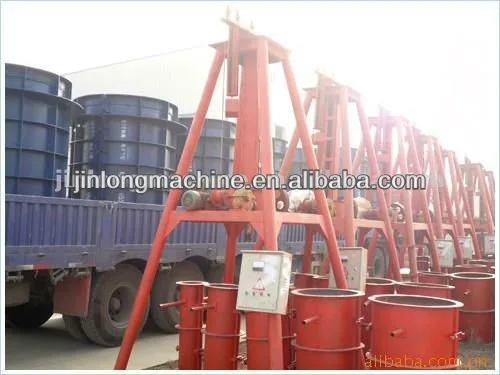

                JL-1000 cement pipe making machine





1.This cement pipe making machine  is ideal equipment for the production of concrete pipes,it is reasonable in design ,more reliable in running and more convenient in operating,

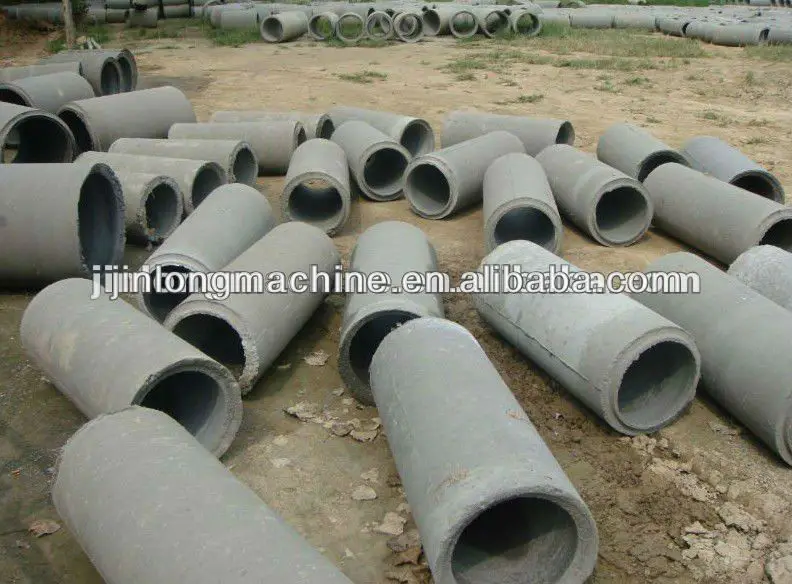

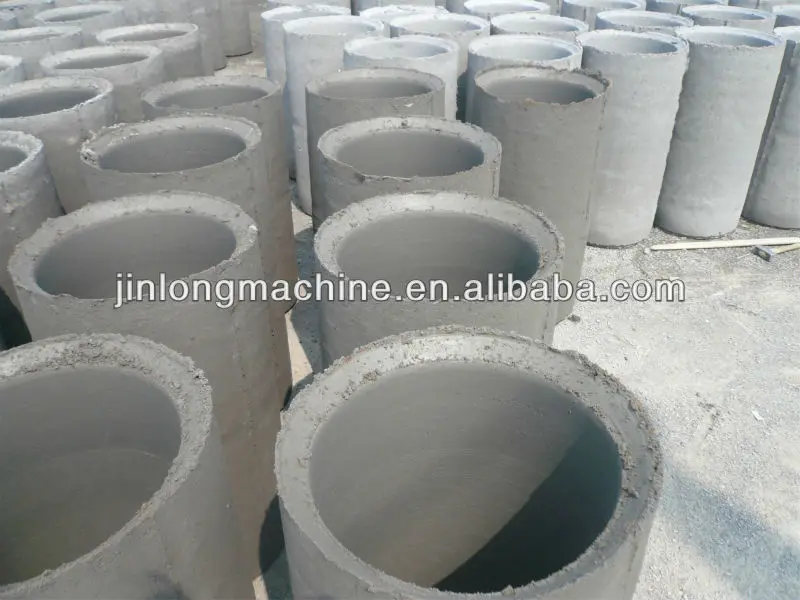

 2.it completely meets the state standards of GB 11836-89, with river sands ,gravels stone chips or pulverized coal ash , slag, et, pulsing Some suitable quantity of cement as raw materials ,the machine can produce different kinds of tubes ,such as joint tubes socket tubes, etc ,with different diameter specifications from 150mm to 800mm,all the tubes produced by this machine are characterized by even wall thickness, smooth inner wall, good resistance to leaking ,



3.high compression strength ,lower cost, excellent reliability in connecting ,convenience in construction and better efficiency in production ,and also ,the products ,can be given curing immediately after molding, these tubes can be widely used in the projects of agricultural irrigations ,water draining in cities.



Specification



all machine power	18KW
Rotor frequency of roller	40-50rpm
Molding time	5 min
Host machine weight	3T
Dimension(mm)	2200*1950*40000mm
Pressure	100T
Production capacity	120 pcs/day for 1000*200mm pipe
Concrete mixer	Jq350
Pipe size(mm)	φ300*900, φ450*900, φ600*900, φ750*900, φ900*900, φ1000*900,
Raw material	Cement, sand, broken stones
