Suntask new product thermal solar panel thermosyphon with CPC
- Category: >>>
- Supplier: Zhejiang Shentai Solar Energy Co. Ltd.
Share on (1829178041):
Product Overview
Description

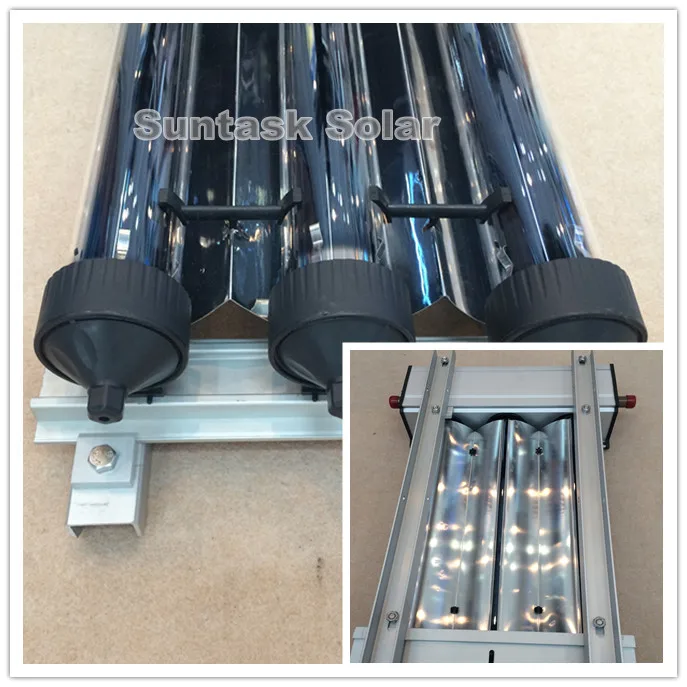

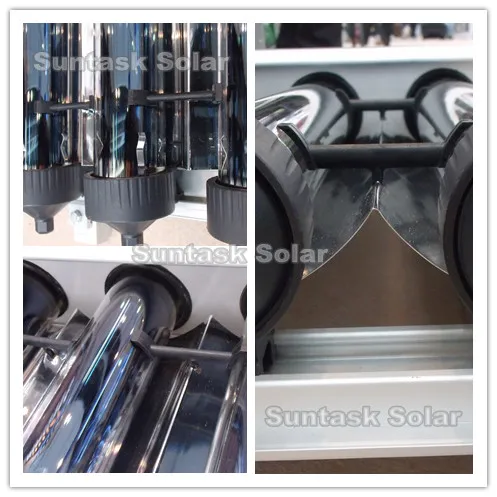

Heat pipe solar collector with CPC reflector
New heat pipe solar collector with CPC reflector, with big aperture area, for Poland and other European countries mainly.
1. High efficiency!
2. High stagnation temperature.
3. Easy to pack and to install.
Model No.:
SHC-8 58*1800*8pcs of heat pipe vacuum tube with CPC reflector
SHC-9 58*1800*9pcs of heat pipe vacuum tube with CPC reflector
SHC-10 58*1800*10pcs of heat pipe vacuum tube with CPC reflector
SHC-12 58*1800*12pcs of heat pipe vacuum tube with CPC reflector
SHC-14 58*1800*14pcs of heat pipe vacuum tube with CPC reflector
SHC-15 58*1800*15pcs of heat pipe vacuum tube with CPC reflector
SHC-16 58*1800*16pcs of heat pipe vacuum tube with CPC reflector
SHC-18 58*1800*18pcs of heat pipe vacuum tube with CPC reflector
SHC-20 58*1800*20pcs of heat pipe vacuum tube with CPC reflector
SHC-21 58*1800*21pcs of heat pipe vacuum tube with CPC reflector
SHC-22 58*1800*22pcs of heat pipe vacuum tube with CPC reflector
SHC-24 58*1800*24pcs of heat pipe vacuum tube with CPC reflector
For example, the efficiency for SHC-24( 24tubes) can be twice as much as the traditional models.
Technical parameters:
Manifold( interior): red copper
Manifold( exterior): aluminum alloy
Glass tube dimensions: 58*1800mm
Hail resistance: 25mm
Max pressure: 12 bar
Coating of Vacuum tube: ALN/AIN-SS/CU
Heat pipe: anti-freezing >-35 C. degree

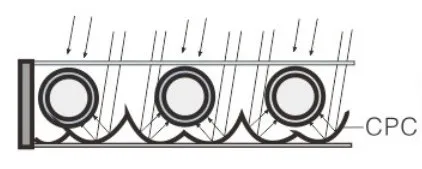

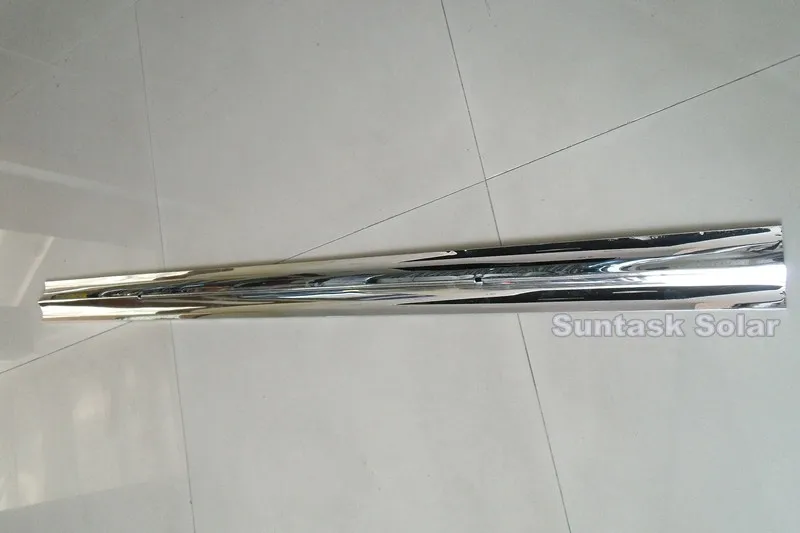

With CPC reflector, feature:
1. 360 degree absorber( CPC reflector)
2. high energy yield
3. high performance ratio
4. easier and faster modular installation
5. long lifetime and stable service

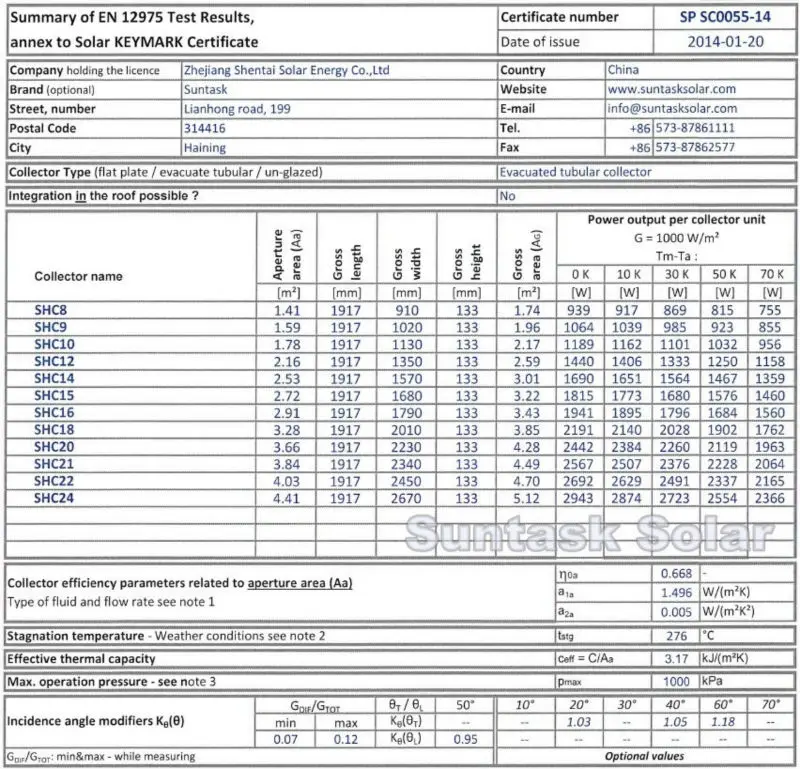

Following is the data from the testing reports:
