Product Overview
Description

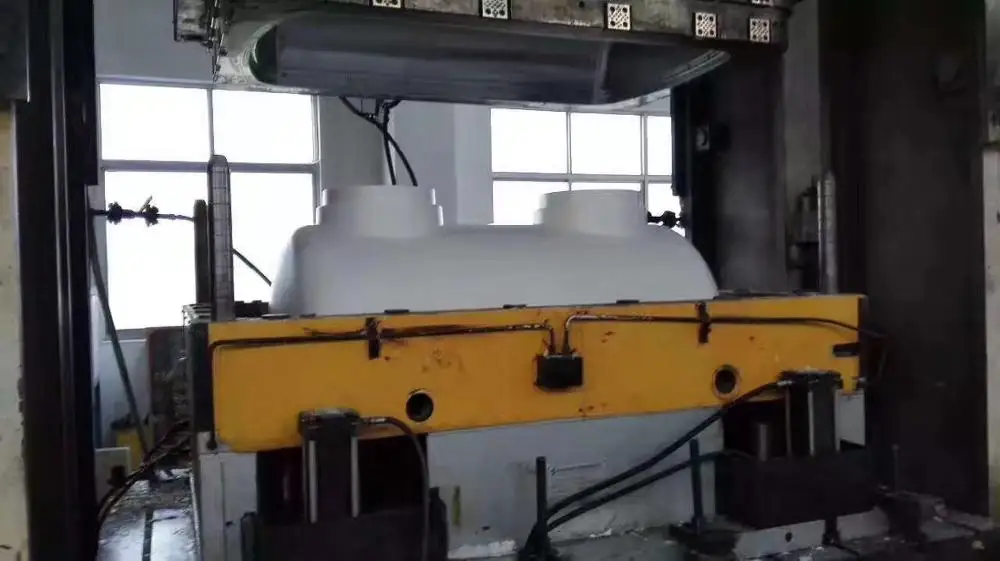

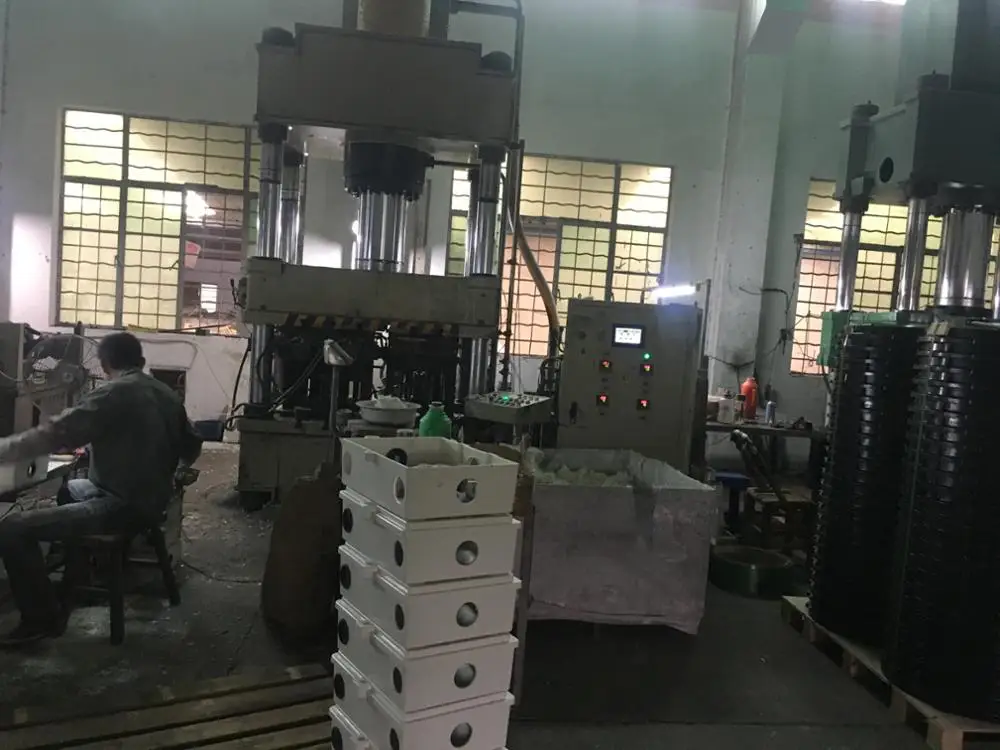

315T SMC machine
Main application and characteristics:

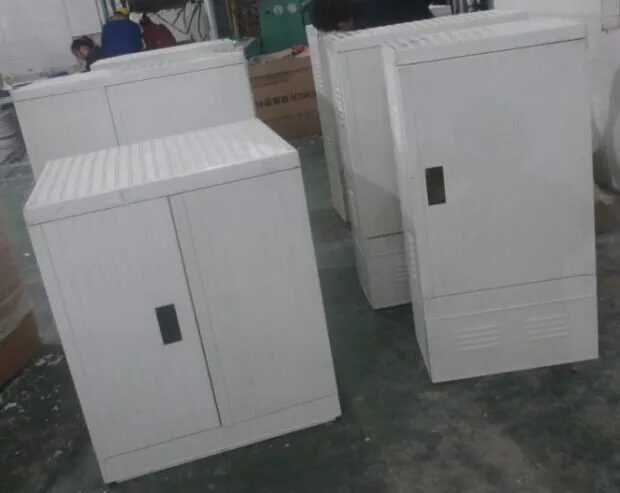

This machine is mainly used for the pressure molding of glass fiber reinforced plastic products, such as car door plank, auto wing son board,body panels for mini-car, meter box, car front bumper,train window frame,bathtub, toilet seat cover,shower facilities,SMC methane,etc
The machine working pressure, stroke, pressing speed, slowly back to speed all can according to the provisions of the process need to adjust parameter range.
This machine has the independence actuating unit and the electrical system, and USES the button common control, can realize manual, semiautomatic two mode of operation.
This machine sensitive operation simple, the noise small, the pressure stable, and can meet different production process need etc.
Optional accessories:
moving working table
Hydraulic system cooling, temperature control device
Stroke, pressure digital display numerical control device
knockout device
PLC programmable controller
touch industrial screen
models | Nominal pressure (KN) | ejection (KN) | Slide stroke (mm) | Ejection stroke (mm) | Max daylight (mm) | Slide speed(mm/S) | ejectionspeed(mm/S) | Working table L-R*F-B ( mm×mm) | Motor power(KW) | |||||||
Fast down | Slow down | Slow press | Slow dieing | fast return | ejection | Slow eject. | Return stroke | |||||||||
Y71-315A | 3150 | 300 | 800 | 300 | 1200 | 80-100 | 5-12 | 2-4 | 3-5 | 70 | 90 | 2-4 | 200 | 1400×1200 | 15 | |
Y71-315B | 3150 | 300 | 800 | 300 | 1200 | 80-100 | 5-12 | 2-4 | 3-5 | 70 | 90 | 2-4 | 200 | 2000×1400 | 20(18.5+1.5) | |
Y71-500A | 5000 | 1000 | 900 | 350 | 1500 | 80-100 | 5-16 | 2-4 | 3-5 | 50-70 | 50 | 2-4 | 150 | 1600×1400 | 30(15×2) | |
Y71-500B | 5000 | 1000 | 900 | 350 | 1500 | 80-100 | 5-16 | 2-4 | 3-5 | 60-80 | 50 | 2-4 | 150 | 2000×1400 | 30(15×2) | |
Y71-500C | 5000 | 1000 | 900 | 350 | 1500 | 80-100 | 5-16 | 2-4 | 3-5 | 60-80 | 50 | 2-4 | 150 | 22000×1400 | 30(15×2) | |
Y71-630A | 6300 | 1000 | 1000 | 350 | 1500 | 80-100 | 5-16 | 2-4 | 3-5 | 50-70 | 60 | 2-4 | 180 | 1600×1600 | 37.5(15×2+7.5) | |
Y71-630B | 6300 | 1000 | 1000 | 350 | 1500 | 80-100 | 5-16 | 2-4 | 3-5 | 60-80 | 60 | 2-4 | 180 | 2200×1400 | 37.5(15×2+7.5) | |
Y71-800A | 8000 | 1000 | 1000 | 350 | 1800 | 80-100 | 5-16 | 2-4 | 3-5 | 70-90 | 75 | 2-4 | 230 | 3000×2000 | 45(3×15) | |
Y71-800B | 8000 | 1000 | 1000 | 350 | 1800 | 80-100 | 5-16 | 2-4 | 3-5 | 70-90 | 75 | 2-4 | 230 | 2500×2000 | 45(3×15) | |
Y71-1000A | 10000 | 2000 | 1000 | 350 | 1800 | 80-100 | 5-16 | 2-4 | 3-5 | 80-100 | 40 | 2-4 | 100 | 3000×2000 | 45(3×15) | |
Y71-1000B | 10000 | 2000 | 1000 | 350 | 1800 | 80-100 | 5-16 | 2-4 | 3-5 | 80-100 | 40 | 2-4 | 100 | 2500×2000 | 45(3×15) | |
Y71-1500A | 15000 | 2000 | 1000 | 400 | 1800 | 80-100 | 5-16 | 2-4 | 3-5 | 90-110 | 55 | 2-4 | 190 | 2200×1600 | 85(55+30) | |
Y71-1500B | 15000 | 2000 | 1000 | 400 | 1800 | 80-100 | 5-16 | 2-4 | 3-5 | 90-110 | 55 | 2-4 | 190 | 2500×2000 | 85(55+30) | |
Y71-1500C | 15000 | 2000 | 1000 | 400 | 1800 | 80-100 | 5-16 | 2-4 | 3-5 | 90-110 | 55 | 2-4 | 190 | 3000×2000 | 85(55+30) | |
Y71-2000A | 20000 | 2000 | 1000 | 400 | 1800 | 80-100 | 5-16 | 2-4 | 3-5 | 60-80 | 55 | 2-4 | 190 | 2500×2000 | 85(55+30) | |
Company Information

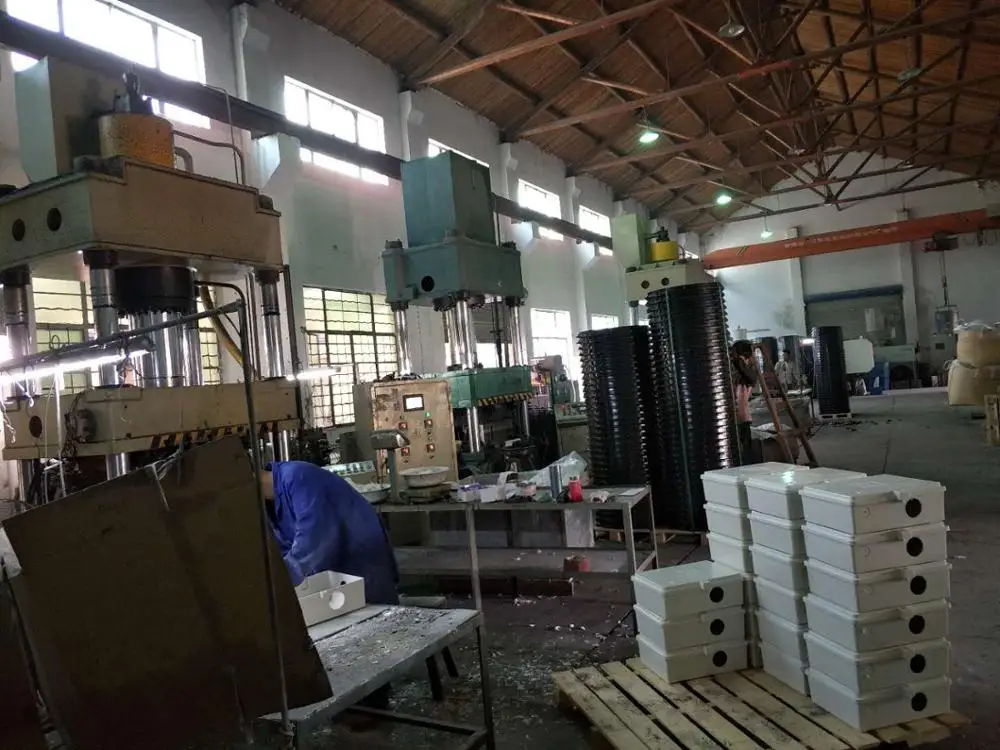

our factory is located in Pingyang ,Wenzhou City.established in 2000 ,and upgraded to limited company in 2013. we have powerful research and development ability and a group of skilled workers.so , we have many series of hydraulic press machine :elbow cold forming machine ,tee cold forming machine ,door skin embossing press ,four column universal press machine , metal sheet deep drawing machine ,frame type press machine ,smc hot press machine ,hot forging machine ,hot extrusion machine ,paperboard deep embossing machine ,eva luggage machine,melamine machine and so on.
