Automatic High Speed Vertical Packing Machine For Packaging Food Chemical Commodity
- Category: >>>
- Supplier: Foshan Hosng Packaging Machinery Co. Ltd.
Share on (1830755006):
Product Overview
Description

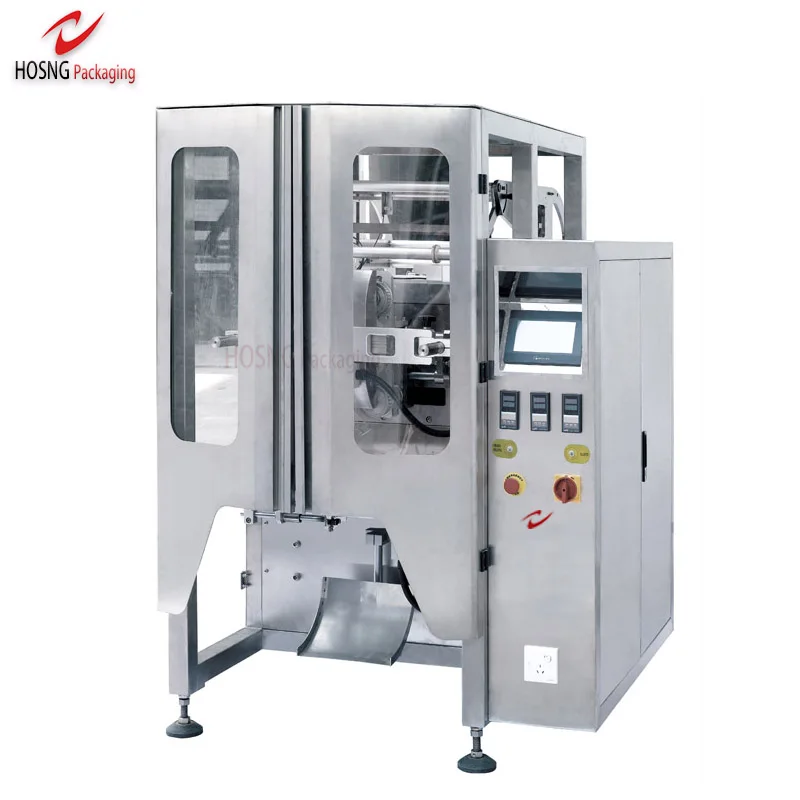

HS-520K Automatic High Speed Vertical Packing Machine
Technical parameter
Items | Content |
Packing speed | 10-90 bags/min |
Bag size | (L)80-350mm (W)90-250mm |
Bag making mode | Pillow-type bag, standing bag, punching device |
Range of measuring | 3600ml |
The max width of packing film | 520mm |
Air consumption | 0.2m3/Min 0.6Pa |
Main power/voltage | 5.0KW/220V |
Dimension | (L)1940×(W)1220×(H)1800mm |
The weight of switchboard | 650kg |
The main components of packing machine:
Number | Name | Brand | Country |
1 | Touch sensitive screen | WEINVIEW | TAIWAN |
2 | PLC | MITSUBISHI | JAPAN |
3 | Servo motor | SIEMENS | GERMAN |
4 | Horizontal cylinder | SMC | JAPAN |
5 | Vertical cylinder | SMC | JAPAN |
6 | Two units system | JINQI | TAIWAN |
7 | Solid state relay | OMRON | JAPAN |
8 | Intermediate state relay | OMRON | JAPAN |
9 | Photoelectric eye | AUTONICS | KOREA |
10 | Power | MW | TAIWAN |
11 | Thermometer control | YA TAI | SHANGHAI |
12 | Cutting cylinder | SMC | JAPAN |
13 | Printer code | TIAN YI | FU JIAN |
The scope of packaging
It’s suitable to use in packing the high accuracy and easy fragile material , such as : puffy food , crispy rice , Potato Chips , Snacks , candy , pistachio , sugar , apple slices , dumpling , chocolate , pet food , small wares etc .

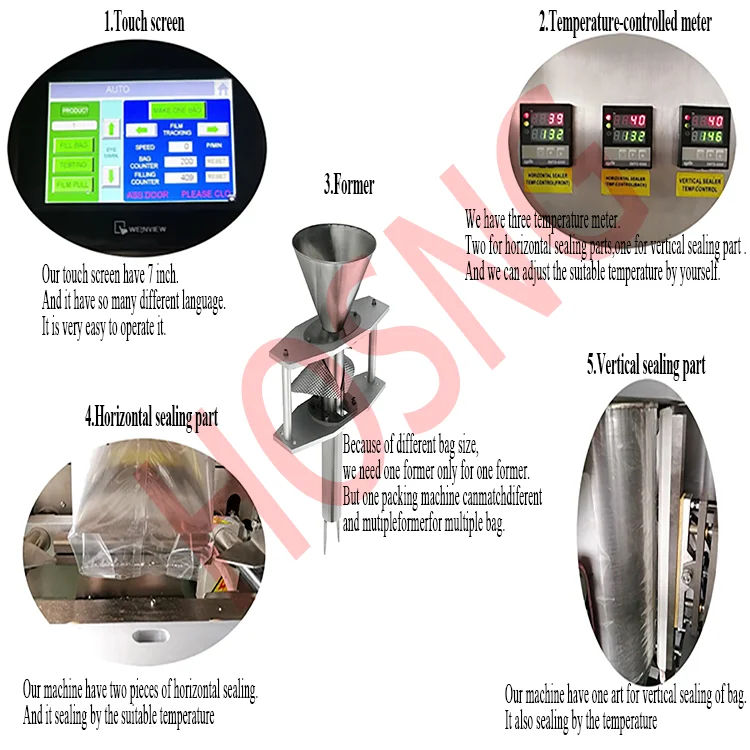

The major performance and structural feature
-PLC computer control system.PLC from Janpan or Germany
-Big touch From Tai wan . Easy to operate and control the machine
-High precise positioning with servo film transporting systerm .Servo motor from Germany Seimens to ensure stable.
-Warn protection function
-The machine will automatically complete all packaging processes from measuring, feeding, filling, Printing ,finished bag .
-The way of bag making: the machine can make pillow-type bag and standing bag according to customer’s requirements.
-Punching hole bag & connect 5-12bags and so on.
Application Multi-head Weighing
Application Auger Powder Filling
*Hosng packaging Machinery can customize the suitable one for you according to your requirement.<< Just Tell us : Products,Bag Size required.>>
Advantages
Related Products
Trade Shows
Company Information
Certifications
| FAQ |
Q1: When Hosng Pack was founded ?
A: It started in 2007, till now it around 13 years experience in Packaging Industry.
Q2: How about your delivery time?
A: Commonly it needs 30 days for production, but if there is anything urgent, can be finished within 15 days if spare parts in stock.
Q3: What’s the warranty?
A: Warranty is 1 year, not including easy damaged spare parts, such as heater, belts, etc.
Q4: How do you recommend to me the suitable packing machine?
A: You need to offer us detailed packing requirements, including packing products, bag size, packing weight, bag type,etc.
Q5: Can arrange technician to oversea for commissioning ?
A: Yes, we can if you need, but you need to pay the fees including: Visa charges, return ticket, accommodation and labor fees. We also accept you arrange technician to learn in our factory before shipping.
