Duplex vacuum pump system
- Category: >>>
- Supplier: Wenling Chaoyue Vacuum Pump Co. Ltd. [Zhejiang China]Wenling
Share on (1831651601):
Product Overview
Description

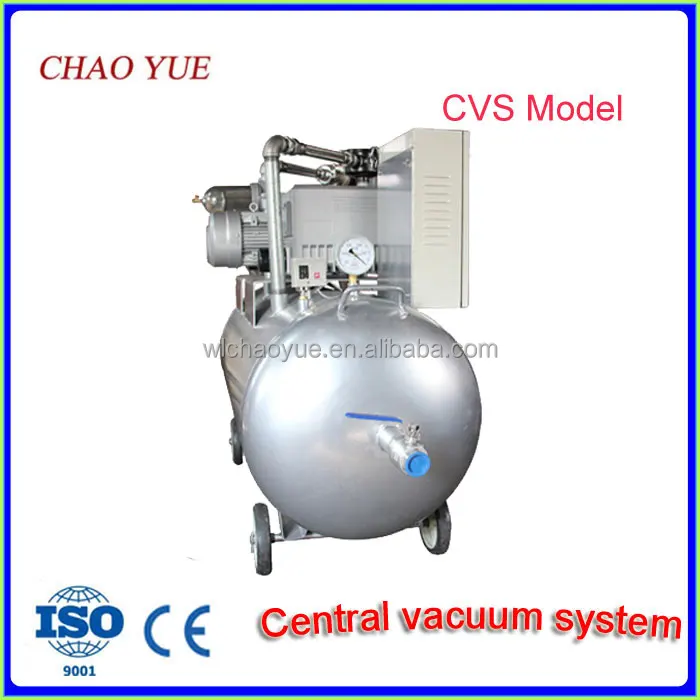

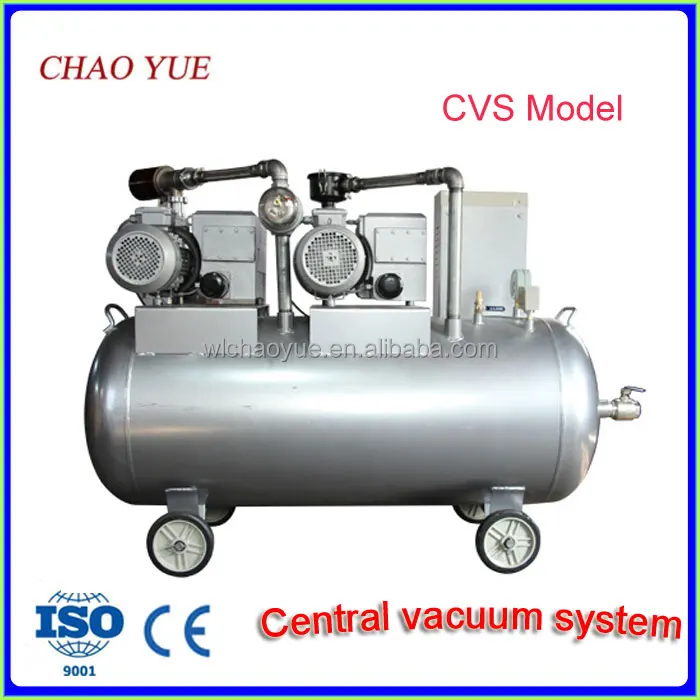

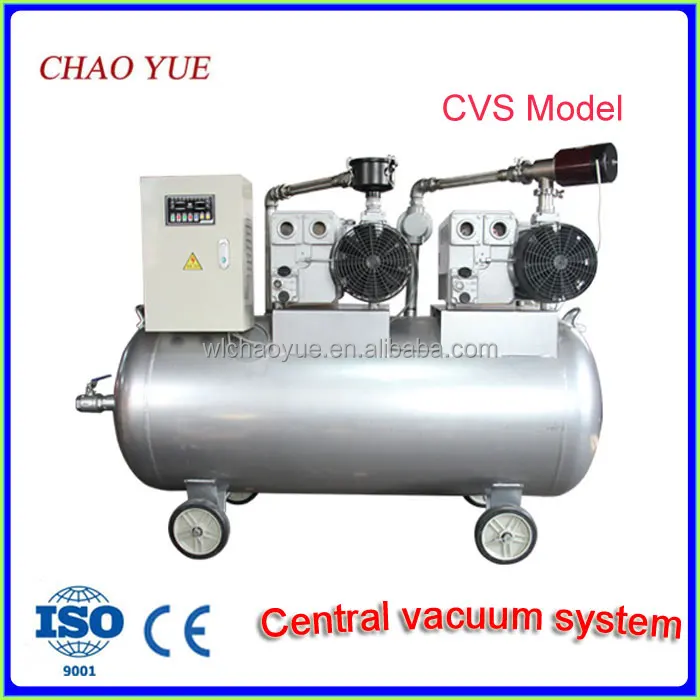

Duplex vacuum pump system

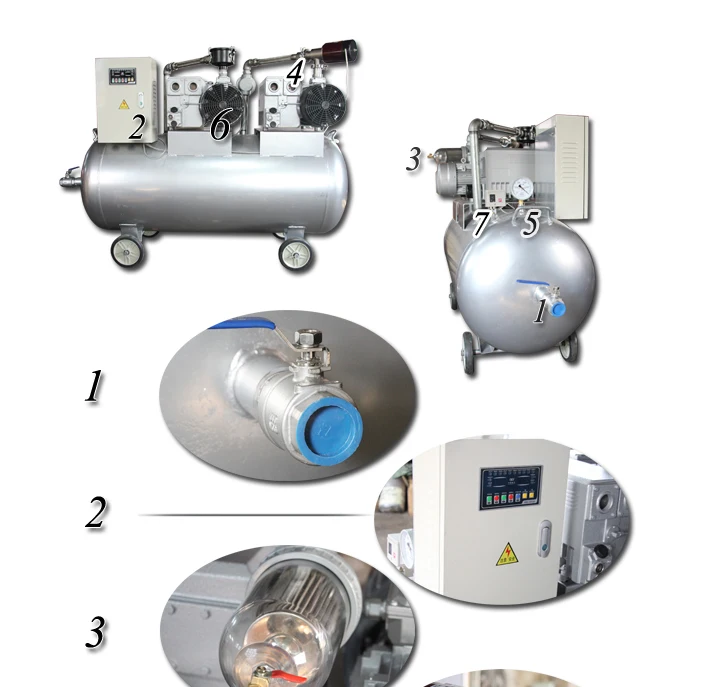

CVS series vacuum system adopt SV single-stage rotary vane vacuum pump as host machine, and it is equipment integration equipped with a vacuum tank, vacuum gauge, automatic control system etc.
The system features:
1.To adopt environmentally high-performance vacuum pump, no oil injection
2.Manual and automatic can be control to option, the vacuum can be set to adjust
3.Two options of vacuum tank: vertical or horizontal
4.Simple operation and strong vacuum, can meet every kinds of inquire from different customers.
5.Easy moving, space small
6.CVS integration is a preferred central vacuum system for enterprise
Technical data:
System Size | Pumping Speed(m3/h) | Vacuum pump | Amount | Pressure (MPA) | Each pump Power(KW) | Vacuum tank(m3) | ||
50HZ | 60HZ | |||||||
50HZ | 60HZ | |||||||
CVS-1X020 | 20 | 24 | SV-020 | 1 | 0~-0.1 | 0.90 | 0.90 | 0.06-0.2 |
CVS-1X040 | 40 | 48 | SV-040 | 1 | 0~-0.1 | 1.5 | 1.5 | 0.06-0.2 |
CVS-1X063 | 63 | 75 | SV-063 | 1 | 0~-0.1 | 2.2 | 2.2 | 0.06-0.2 |
CVS-1X100 | 100 | 120 | SV-100 | 1 | 0~-0.1 | 3.0 | 3.0 | 0.06-0.2 |
CVS-1X160 | 160 | 192 | SV-160 | 1 | 0~-0.1 | 4.0 | 5.5 | 0.3-2 |
CVS-1X200 | 200 | 240 | SV-200 | 1 | 0~-0.1 | 5.5 | 5.5 | 0.3-2 |
CVS-1X250 | 250 | 300 | SV-250 | 1 | 0~-0.1 | 5.5 | 7.5 | 0.3-2 |
CVS-1X300 | 300 | 360 | SV-300 | 1 | 0~-0.1 | 7.5 | 7.5/9.0 | 0.3-2 |
CVS-2X020 | 40 | 48 | SV-020 | 2 | 0~-0.1 | 0.90 | 0.90 | 0.06-0.3 |
CVS-2X040 | 80 | 96 | SV-040 | 2 | 0~-0.1 | 1.5 | 1.5 | 0.06-1 |
CVS-2X063 | 126 | 150 | SV-063 | 2 | 0~-0.1 | 2.2 | 2.2 | 0.3-2 |
CVS-2X100 | 200 | 240 | SV-100 | 2 | 0~-0.1 | 3.0 | 3.0 | 0.3-2 |
CVS-2X160 | 320 | 384 | SV-160 | 2 | 0~-0.1 | 4.0 | 5.5 | 0.5-2 |
CVS-2X200 | 400 | 480 | SV-200 | 2 | 0~-0.1 | 5.5 | 5.5 | 0.5-2 |
CVS-2X250 | 500 | 600 | SV-250 | 2 | 0~-0.1 | 5.5 | 7.5 | 0.5-2 |
CVS-2X300 | 600 | 720 | SV-300 | 2 | 0~-0.1 | 7.5 | 7.5/9.0 | 0.5-2 |
CVS-3X100 | 300 | 360 | SV-100 | 3 | 0~-0.1 | 3.0 | 3.0 | 0.5-2 |
CVS-3X160 | 480 | 576 | SV-160 | 3 | 0~-0.1 | 4.0 | 5.5 | 0.5-2 |
CVS-3X200 | 600 | 720 | SV-200 | 3 | 0~-0.1 | 5.5 | 5.5 | 0.5-2 |
CVS-3X250 | 750 | 900 | SV-250 | 3 | 0~-0.1 | 5.5 | 7.5 | 0.5-2 |
CVS-3X300 | 900 | 1080 | SV-300 | 3 | 0~-0.1 | 7.5 | 7.5/9.0 | 0.5-2 |
