mc cast Nylon Sheet plate

Product Overview

Description

   nylon sheet



• Very good sliding


• High Abrasion and wear resistance


• Good damping capacity


• Low specific weight


• Good machinability


• Dimensional stability and low residual stress

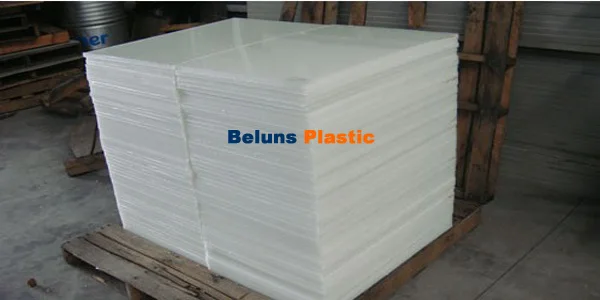

Virgin Nylon Sheet, white nylon sheet of sizes





Thickness: 1mm~100mm

Size: 600mm*1m, 600mm*1220mm; 1000m*1000m, 1000m*2000m; 1220m*1220m, 1220mm*2440mm

Colors: White, Black, Bule etc

Tolerance range: + 0.1 ~ + 1 / - 0 (thickness), +5 / -0 (wildth), +10 / -0 (length)



Nylon Sheet, PA6 Sheet, PA66 Sheet of Technology datas



Properties	Unit	Data
Density	g/cm³	1.13
Crystalline melting point	°C	220
Glass transition temperature	°C	60 / 5
Coefficient of friction against hardened and ground steel	-	0.38 - 0.45
Resistance to weathering	-	not resistant
Water absorption at saturation at 23°C	%	9.5



Typical Application

•  Bearing


• Guide


• Chain wheels and guides


• Guide rails


• Transport stars


• Curved guides


• Abrasion plate, impeller


• Wire pulley
