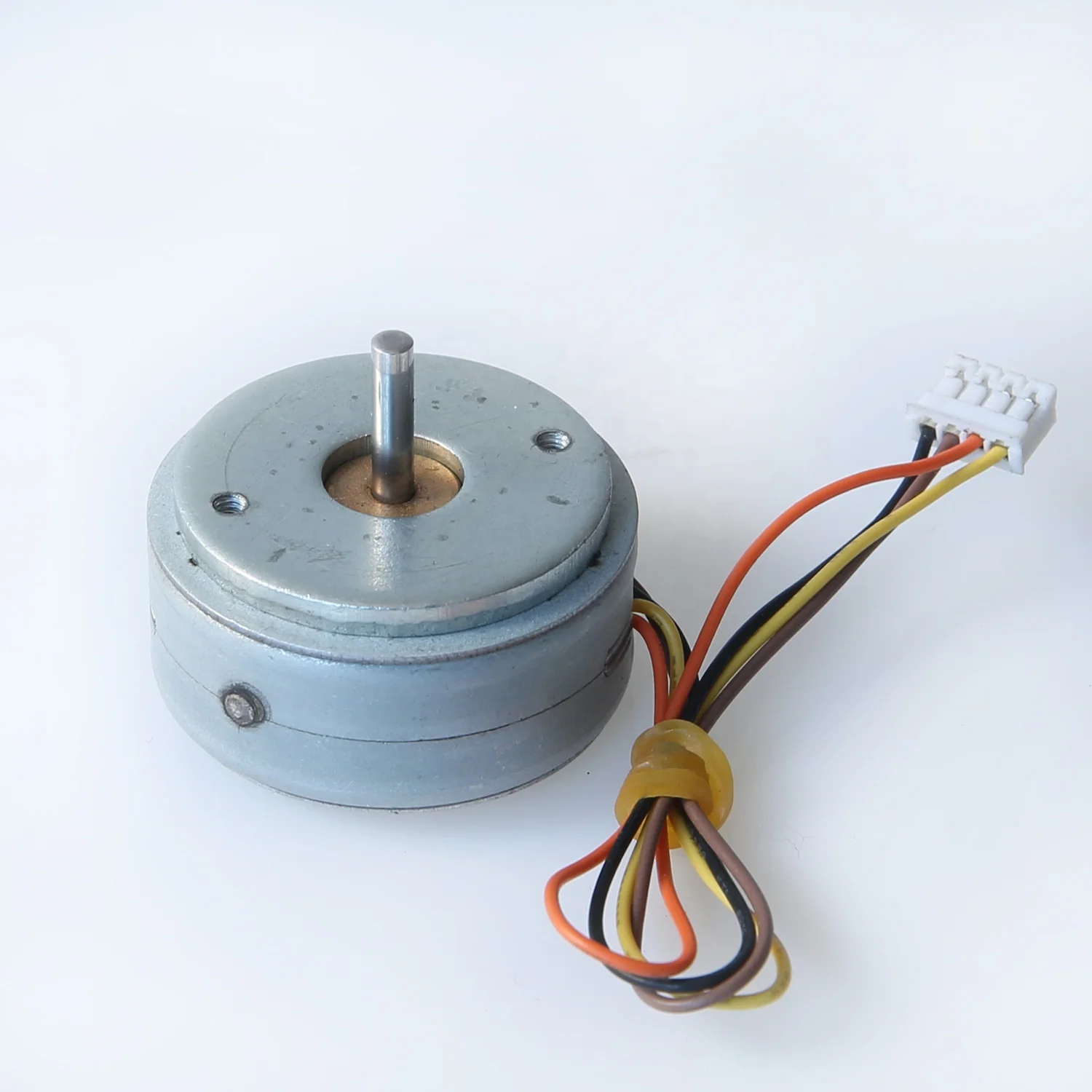

PM Stepper Motors 35mm micro motors



1. Motor diameter: 35mm;

2. Voltage: 5V, 12V, 24V(All could be customized);

3. Step Angle: 7.5 degree, 15 degree;

4. No. of Phase: 2 Phase(Bipolar 4 Wires), 4 Phase(Uni-polar 6 Wires)

5. Motor can be customized;

6. ISO9001-2008 Certified; RoHs meeted.





Manufacturers of Permanent magnet(PM) Stepper Motor & PM Synchronous Motor:







1. PM Series:

Diameter	8mm	10mm	15mm	20mm	25mm	35mm	42mm	55mm
Model No.	PM8S-020	PM10S-020	PM15S-020	PM20S(L)-020	PM25S(L)-048(024)	PM35S(L)-048(024)	PM42S(L)-048	PM55L-048















2. PG Series: PM Stepper Motor with gearbox(with different gear ratio) & BYJ Series

Diameter	10mm	15mm	20mm	24mm	25mm	28mm	35mm	42mm
Model No.	PG10S-020	PG15S-020	20BYJ46	24BYJ48	PG25S-048	28BYJ48	35BYJ46; PG35L-048	PG42L-048





3. PL Series: PM Linear stepper motor(with lead screw):



Diameter	8mm	10mm	25mm
Model No.	PL8S-020	PL10S-020	PL25S-048(024)







Application :

HVAC/R Valve Actuation

Office Automation Printers, Copiers, Data storage

Medical Applications Pill dispensing Analysers

Telecommunication Antennae positioning Switching lines

Other Industries & Applications Robotics



Highlights :

Excellent open loop control - No encoders necessary

Digitally controlled - Easy to use with a micro processor

Cost effective - compact design, lower integration cost

Maintenance free - motor is brushless

Winding possibilities – Bipolar



General Specification:



Item	Specification
Step Angle Accuracy	±8%(full   step, no load)
Resistance Tolerance	±10%
Inductance Tolerance	±20%
Temperature Rise	80.C Max.(rated current,2   phase on)
Ambient Temperature	-20.C~+50.C
Insulation   Resistance	100MΩMin.   ,500VDC
Dielectric Strength	600VAC   , 1s , 3mA





Specification:

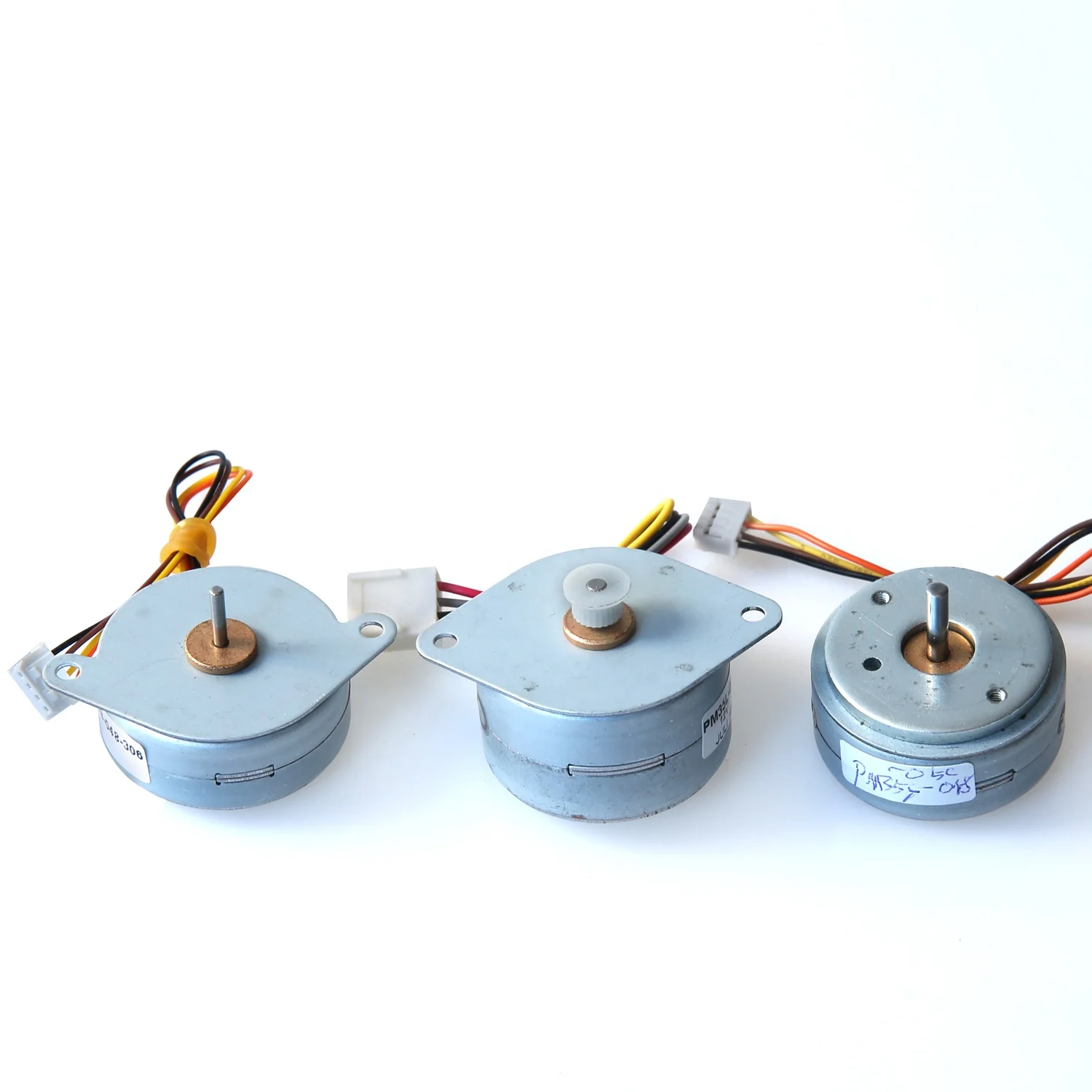

Model	Step Angle (Deg.)	No. of     Phase	Rated   Voltage (VDC)	Resistance     /Phase(Ω)	Holding Torque  (gf.cm)	Max Pull-in Rate(PPS)	Figure
PM35S-048-248	7.5	2	5	20	300	320	1
PM35L-048-237	7.5	4	12	60	450	500	2
PM35L-048-262	7.5	4	5	10	400	350	3
PM35L-024-251	15	4	5	16	180	200	4
PM35L-048	7.5	4	12	30	550	400	5
PM35L-024-246	15	2	24	12		500	6



 For special specifications(voltage, resistance, step angle, no. of phase) and other dimensions, we can customize them. Please feel free to contact me if you have any queries.



Dimension:



Customization On Call

Coil Modifications - Resistance and Inductance.

Magnets - to yield higher linear force or reduced detent levels.

Higher Strength Plastics for higher impact forces.

Reduced or increased Detent Force to suit the application.

Screw - metric or imperial tips, length.

Special Flanges, Connectors.

Wire Harness - connectors, pins, lead length, shrink tubing.
