Push Fit valves angle stop valves 90 degree brass and plastic push fit

Product Overview

Description

Lead free quick push fit fitting





Feature



Fits OD Controlled Copper, CPVC, PEX pipe and versatility with all accepted types of pipes.



Maximum working pressure 200 PSI



Maximum temperature 200 F



Potable water & Hydraulic heating



Specification



Body : C46500 For North America

DZR Lead Free Brass for Austrilian or Europe

CW510L or CW511L for Europe

O- Ring : EPDM

Grap ring : Stainless steel

Protector : POM



Standard



Comply with ASSE 1061-2011



 IAPMO approved material, and comply with AB1953 Pb<0.20



100% tested by High water pressure and Low water pressure



100% dimenions checked on Grab Ring and body



 Tension test:EN1254-6



 Push & pull times test



 Dezincification resistance



 Stress corrosion resistance





Production Process

 1. Material analyse before mass production

•



  2. Forging machine capability 100T to 600T

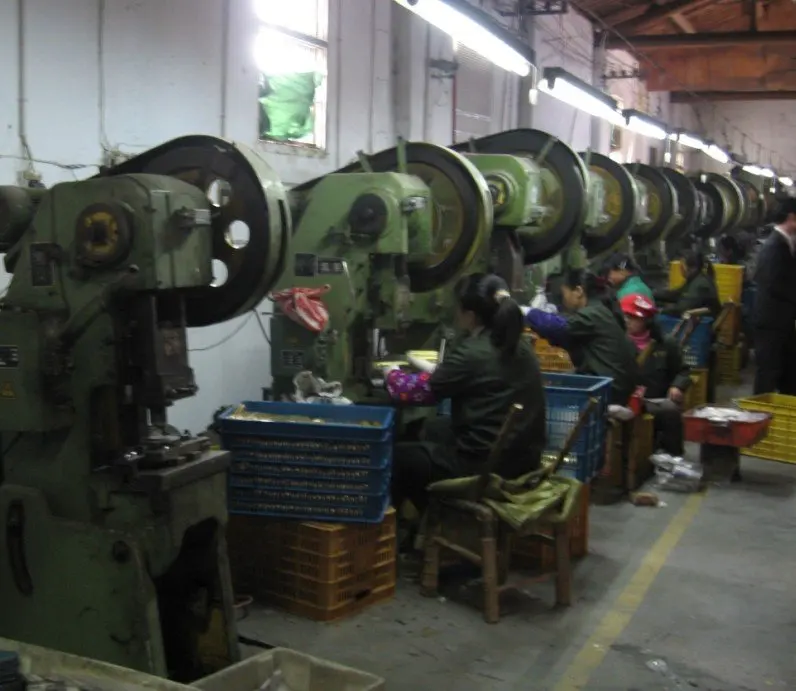

  Stamping line

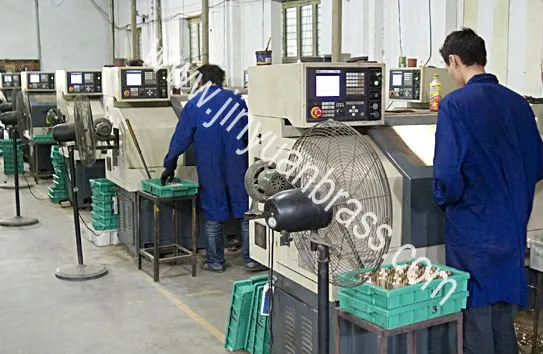

  3. CNC machine for all brass parts





  4. Automatic polish machine import from Spain. polished different faucet and fittings.

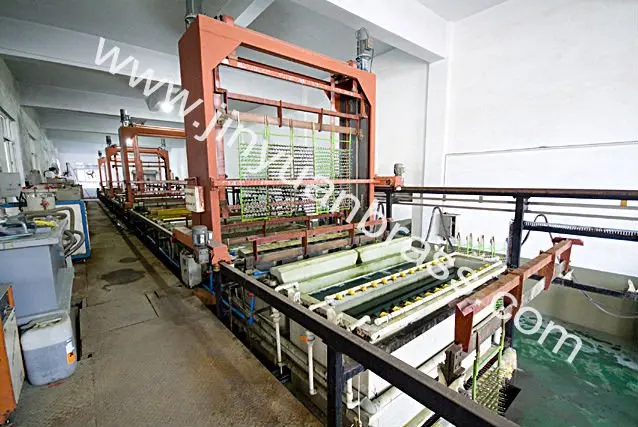

  6. Automatic plating line. Nikel thickness 8 - 10 micorn, Chrome thickness 0.15-0.25  micorn
