Rotary plunger vacuum pump

Product Overview

Description

Introduction :

The pump of this model is rotary piston vacuum pump, which is a kind of vacuum pumping equipment used to pump general air or air containing a small a mount of condensable steam.

The function standards of pump: Its geometrical pumping speed range is 30-150L/S, and ultimate pressure is 6.7x10-2Pa (5x10-4Torr).

It is a sort of vacuum production equipment suitable for pumping ordinary gases and a little condensable gases (for example, water vapor) with a gas ballast used. The pump must be fitted with appropriate accessories if gas is rich in oxygen, explosive, corrosive to ferrous metal, chemical reactive with vacuum pump oil. The pump can be operated singly.

It also can be as a backing pump when combined with another high vacuum pump, such as diffusion pump, booster pump and roots vacuum pump. Rotary piston vacuum pump can be used for a longer time than the sliding vane rotary vacuum pump.



Application:

The pump is applicable to vacuum melting, vacuum drying, vacuum coating, vacuum impregnation and other vacuum operations.



Principle:



Specification:





Model	Ultimate Pressure		Pumping Speed	Inlet Diam	Outlet Diam	Motor Power	cooling water consumption
	pa	torr	L/S	mm	mm	kw	kg/h

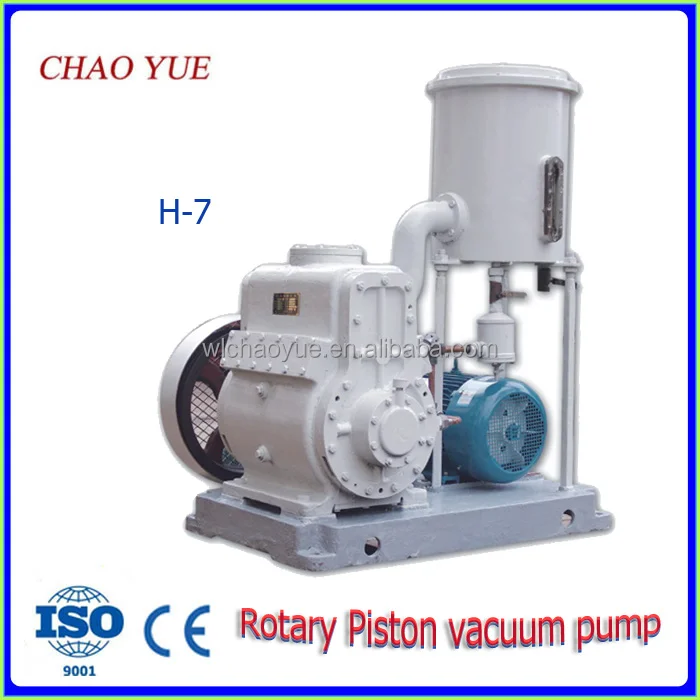

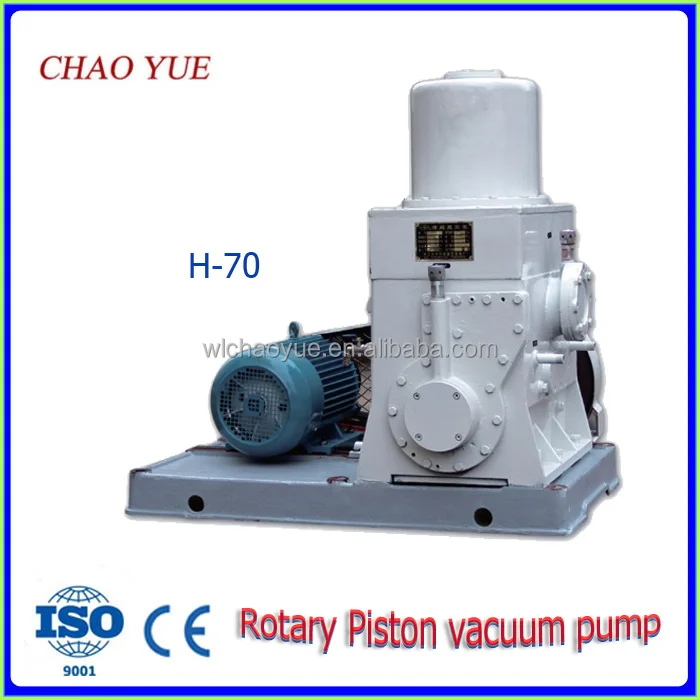

H-70	1.3	8×10-3	70	Φ100	Φ70	7.5	315
H-150	1	8×10-3	150	Φ100	Φ80	15	700

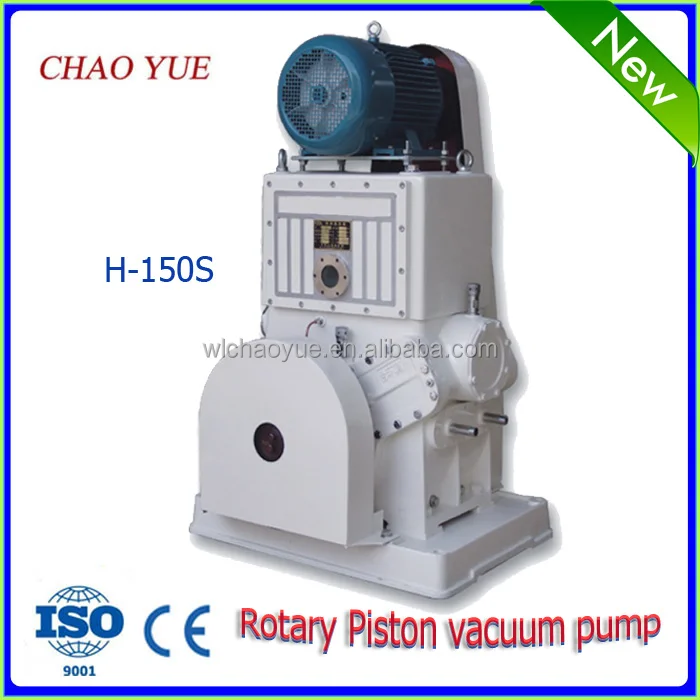

H-150S	1	8×10-3	150	Φ100	Φ80	7.5/9/11	700

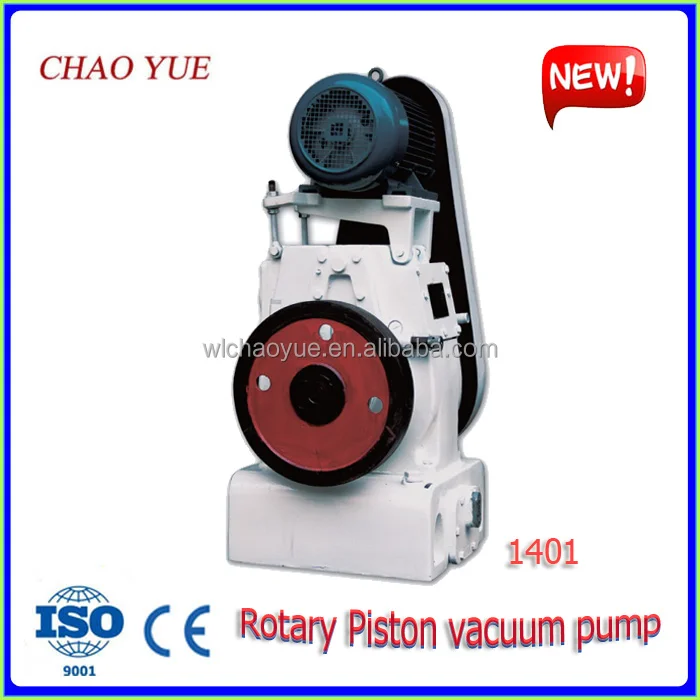

1401	1.3	8×10-3	54	G3’’	G2’’	5.5	400



Performance curve:
